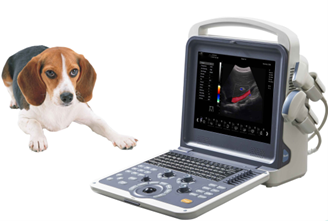

US-K2 Color Doppler Ultrasound Scanner

Features

l High resolution medical LED monitor, 12 inch monitor；

l With larger ultrasound interface, The resolution is less than 0.5mm;

l Built-in large capacity rechargeable Li-ion battery, standby time is up to 2 hours;

l Two probe connected ports, could match with kinds of probes, convex probe, micro-convex and linear probe.

l Based on PC platform, can upgrade the system according to the customer requirement and be compatible with a various of printers;

l The abundant peripherals: 2 USB ports, 2 Internet interface, RS232 interface, VGA output interface, DVI interface.

l Multi-language software for choose: Chinese, English, Spanish, Russian, Persian and French;

l The peripherals: Ethernet interface, 2 USB Ports, VGA interface, S-video interface, Remote interface, Video interface;

l Applications: Canine, Feline, Ovine, Equine, Bovine, Swine

Technical Specifications

PARAMETER	SPECIFICATION
Displaying mode	B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, duplex, triplex, CFM, PW, 4D
Signal processing	Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
Image processing	THI PSHI TM broadband multi-frequency harmonic image Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization Storage: Direct date transfer to U disk or PC Remote: Real-time remote MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Continuous Dynamic Focusing Trapezoid Image (Option) Real time 4D imaging (Option)
General measurement	B mode-distance, circumference, area, volume, angle, area Red, Diam Red, M mode- distance, time, velocity, heart rate
Canine measurement	BD, CRL,GS,HD
Ovine measurement	BPD, CRL
Feline measurement	BD, HD
Equine measurement	GS-H, GS-V
Bovine measurement	CRL, HD, TD
Swine Measurement	TD, HD
Scanning depth	≥300mm
Probe elements	128
Body mark	Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts
Cine loop	Automatically & manually
Image storage format	BMP, JPEG, PNG
Image storage size	64G
Input/output ports	VGA, HSUSB, Dicom, DVI, COM
Gray	256

Standard configuration

l Main unit

l 2 probe connectors

l User’s Manual

l Built-in li-ion battery

l Hard disk (SSD)

Optional

l 3.5MHz abdominal probe (2.0, 3.0, 3.5, 4.0, 5.5Mhz)

l 3.5MHz micro-convex probe (5.0, 6.0, 6.5, 9.0, 10.0Mhz)

l 7.5MHz linear probe (6.0, 6.5, 7.5, 10.0, 12.0Mhz)

l 6.5MHz transvaginal probe (5.0, 6.0, 6.5, 7.5, 9.0Mhz)

l 6.5Mhz rectal probe (5.0, 6.0, 6.5, 7.5, 9.0Mhz)

l 3.5Mhz phased array probe (2.1, 3.0, 3.5, 4.0, 5.5Mhz)

l 4D volume probe (2.0, 3.0, 3.5, 4.0, 5.5Mhz)

l USB laser printer and Video printer

l Aluminum case

l Trolley
