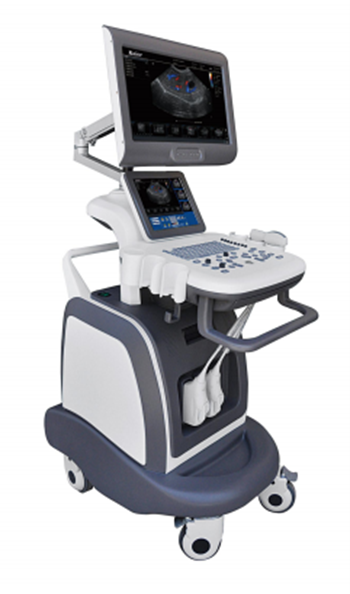

US-S80 Color Doppler Ultrasound Scanner

I. Features

VC-S80 is a high-end cart-type animal color Doppler ultrasound, which is widely used in animal reproductive system, urinary system, digestive system, heart and other abdominal soft tissue examinations. It can display the sound image of the cut surface of the exploration site in real time. It has the advantages of intuitiveness, high diagnosis rate, convenience, and no damage. It is a necessary equipment for animal hospitals. The instrument adopts the classic black-and-white collocation, is made of precision molds, and is equipped with a dual-screen dual-system operating platform, which can easily realize remote diagnosis and treatment and online operation guidance.

The instrument supports a variety of probe options such as animal micro-convex, high-frequency linear array, high-frequency phased array heart, etc., which truly achieves high appearance, high configuration, and high added value.

 II. Technical Specifications

PARAMETER

SPECIFICATION

Technology platform

linux +ARM+FPGA

Number of physical channels

≥64

Number of probe array elements

≥128

Display

High-resolution 10.4-inch LCD monitor, 19-inch LCD   monitor

All-digital imaging technology

Multi-beam synthesis

Real-time dynamic focus imaging point by point

Pulse inverse harmonic composite imaging

Space composite

Image enhancement and noise reduction

Imaging mode

B mode

M mode

Color (color Doppler) mode

PDI (Power Doppler) mode

PW (Pulse Doppler) mode

Image display mode

B, double frame, 4 frame, B+M, M, B+Color, B+PDI,   B+PW, PW, B+Color+PW, B+PDI+PW, B/BC dual real-time

Supported probes

Convex array probe

Linear array probe

Micro convex probe

Rectal probe;

Heart Probe

Probe frequency

2.5-12MHz

Probe socket

≥4

Supported frequencies

B/M: Fundamental frequency ≥ 3 gears;

Harmonic frequency ≥ 2 gears;

Color/PDI: ≥2 files

PW: ≥2 files

Movie playback

2D mode, B max: ≥5000 frames, Color, PDI max: ≥2500   frames;

Timeline mode (M, PW), maximum: ≥ 190s

Image enlargement

Real-time scanning (B, B+C, 2B, 4B),

status: stepless zoom

Image storage

Support JPG, BMP, FRM image format and CIN, AVI   movie format

Support local storage;

Support DICOM, comply with DICOM3.0 standard

Built-in workstation: support large-capacity hard   disk (≥500GB), support patient data retrieval and browsing

System language

Chinese/ English/ Spanish operating system and   language environment, according to user needs, can be extended to support   others Language

Image parameters

B mode

Grayscale mapping: ≥15 files

Noise suppression: ≥8 files

Frame related: ≥8 files

Edge enhancement: ≥8 files

Image enhancement: ≥5 files

Space composite: switch adjustable

Scanning density: high, medium, low

Image flip: up and down, left and right

Maximum scanning depth: ≥351mm

M mode

Sweep Sleep: ≥5 levels adjustable

Line Average: ≥8 files

PW mode

SV size/position: SV size 1.0–8.0mm adjustable

PRF: ≥16 files, adjustable from 0.7kHz to 22KHz

Sweep Sleep: ≥5 levels adjustable

Correction Angle: -85°~85°, step length 5°

Spectrogram flip: switch adjustable

Wall filter: ≥4 gears adjustable

Doppler sound: ≥20 files

Color/PDI mode

PRF: ≥15 gears, 0.6KHz-11.7KHz

Color map: ≥4 types

Color related: ≥8 files

Post-processing: ≥4 files

Save and restore parameters

Support one-key saving of image parameters;

Support one-key reset of image parameters

 III. Standard configuration

l  Full digital color Doppler ultrasound host (host built-in hard disk 500G): 1 set;

l  Instructions and random qualifications and documents: 1 set;

l  Built-in Win7 telemedicine workstation system: 1 set;

l  Wireless keyboard and mouse: 1 set;

l  Shaver machine: 1 set;

 IV. Optional

l  Rectal probe

l  Convex probe

l  3.5Mhz micro convex probe: 1 pc;

l  7.5Mhz linear probe: 1 pc;

l  Cardiac probe: 1 pc;
