Features
1. Small and Compact size, easy to carry.
2. Wireless type without probe cable, working freely.
3. Waterproof design, convenient for sterilization.
4. Remote diagnosis convenience, capable for images transfer to doctors
Technical Specifications
PARAMETER | SPECIFICATION |
Scanning mode | Electronic array |
Probe Type | Consist by two of Convex, Transvaginal |
Display mode | B, B/M, color doppler version with B+Color, B+PDI, B+PW |
Probe element | 128 |
Channel of RF circuit board | 32 |
Probe frequency and scan depth, head radius/width, scan angle (convex) | Convex head 3.5MHz/5MHz, 90/160/220/305mm, 60mm, 60° Transvaginal head 6.5MHz/8MHz, 40/60/80/100mm, 13mm, 149° |
Image Adjust | BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
Cineplay | auto and manual, frames can set as 100/200/500/1000 |
Puncture assist function | the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement. |
Measure | Length, Area, Angle, heart rate, Obstetrics |
Image save | jpg, avi and DICOM format |
Image frame rate | 18 frames/second |
Battery working time | 2.5 hours(according to whether keep scan) |
Battery charge | by USB charge or wireless charge, take 2 hours |
Dimension | L156×W60×H20mm(if with transvaginal head length is 270mm) |
Weight | 250g |
Wifi type | 802.11g/ 20MHz/ 5G/ 450Mbps |
Working system | Apple iOS, Android, Windows |
Standard Configuration
1. Wireless Ultrasound Scanner 1 unit
2. USB Charging Cable 1pc
3. Carrying Bag/Aluminium Suitcase(options) 1pc

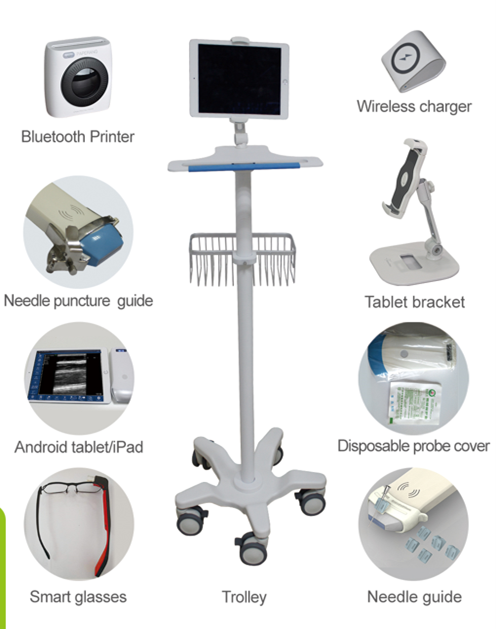

Optional Configuration
Stainless Steel Puncture Guide
Android or iOS Phone/Tablet
Windows PC
Wireless Power Bank
Tablet Bracket
Trolley
