I. Features
l Equipment use description: dog, cat, sheep, horse, cow, pig.
l Color Doppler flow imaging
l Two-dimensional gray scale imaging
l Spectrum Doppler display analysis system, PWD spectrum Doppler
l Energy Doppler imaging
l Tissue harmonic imaging
l With composite imaging, can be used for all probes, can be independently adjusted
l Image post-processing iclear function
II. Technical Specifications
PARAMETER | SPECIFICATION |
Measurement and analysis: | General measurement: including distance, area, volume, time, heart rate, velocity, acceleration, Doppler routine, Doppler trace, etc Routine inspection report Custom comments: including insert, delete, edit, save, etc |
Input/output signal | Output: S- video, USB, LAN |
Connectivity | Medical digital imaging and communication DICOM3.0 interface components |
Image management and recording device | hard disk, U disk storag |
Ultrasonic image archive and medical record management function | complete the storage, management and playback of patient static image and dynamic image in the host |
Storage | can be hard disk, U disk static and dynamic image storage |
Sound output safety | The system has acoustic output power, mechanical index and thermal index display |
Color monitor | 15 inch high resolution color LCD monitor, no flicker, uninterrupted line by line scanning |
Probe interface | 2, 2 probe interface can be connected to all probes and interchangeable, not reserved other probe interface can not be universal, (non-external expansion port) |
Main parameters of two-dimensional gray scale imaging | |
Maximum magnification of the image | 10 times |
Emission beam focusing | 4 focal points |
Reception mode | multi-beam signal parallel processing |
The two-dimensional image gain adjustment range | 150dB, continuously adjustable |
maximum scanning depth | 30cm |
Beamforming device | Digital beamforming device, digital whole-process dynamic focusing, digital dynamic variable aperture and dynamic trace, dynamic sideclobe compression, optimized transmission waveform, A/D≥12bit, focus position can be adjusted throughout the imaging area |
Playback | the maximum playback of gray-scale images is 1000 pieces |
Preset conditions | For different inspection organs, preset inspection conditions for optimized images, reduce adjustment during operation, and commonly required external adjustment and combination adjustment |
Gain adjustment | B/M can be adjusted independently |
Sector scanning Angle | 10° -50 ° selection |
Visual adjustable dynamic range | 10-150dB |
STC segment adjustment 8 segments | |
7 pseudo-color colors | |
Clipboard image storage function in real-time diagnosis state | |
Sound power 15 visual adjustable, step 1 | |
Spectrum Doppler technical requirements | |
Mode | Pulse wave Doppler: PWD |
Doppler frequency | linear array: PWD, 5 groups of frequencies; convex array: PWD, 5 groups of frequencies |
Sampling width and position range | width 0.5-48mm |
The color filter has manual technology | when the pulse repetition rate is adjusted, the wall filter can be optimized accordingly |
Display control | reverse display (left/right; Up/down), B- Refresh |
Doppler envelope measurement and calculation | |
Color Doppler technical requirements | |
Doppler gain | 100%dB, continuously adjustable |
Display mode | velocity variance display, energy display, velocity display, independent variance display, two-dimensional image/spectral Doppler/color blood flow imaging three synchronous display |
Display position adjustment | The image range of interest in linear scanning: -10°- +10 |
Color Doppler chart quantitative analysis software | blood flow velocity distribution map, blood flow measurement technology |
With the same screen left and right dual display B+COLOR function |
III. Probe specifications
l Optional probe group operating frequency range (2.0-10.0MHz)
l All probes have 8 groups of fundamental wave frequency and 8 groups of harmonic
frequency
l Harmonic imaging: can be applied to the configuration of convex array, linear
array, animal microconvex and animal rectal probes
l Abdominal convex array probe: operating frequency: 2.0-10.0MHz
l Linear probe: operating frequency: 2.0-10.0MHz
l Rectal probe: Operating frequency: 2.0-10.0MHz
l B/D dual-use: linear array: B/PWD, convex array: B/PWD, fan sweep: B/PWD
IV. Standard configuration

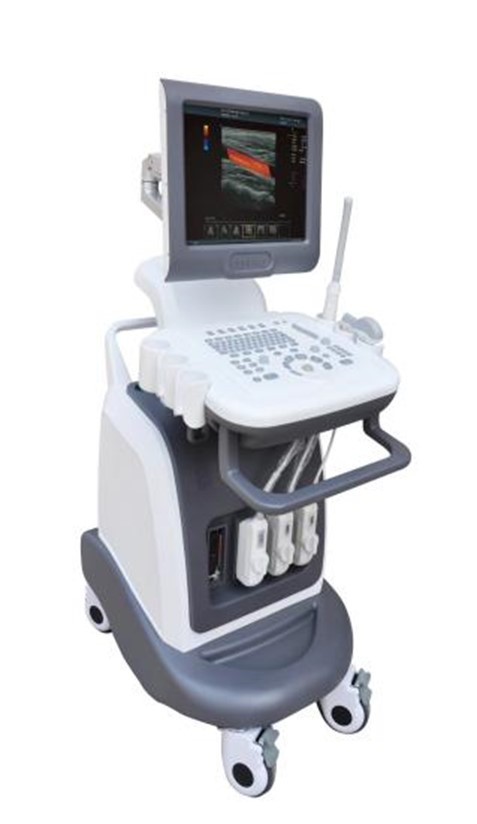

l Full digital color Doppler ultrasound host: 1 set;
l Instructions documents: 1 set;
V. Optional
l Rectal probe
l Convex probe
l Micro convex probe: 1 pc;
l Linear probe: 1 pc;
