Features
1.Workable with Tablet PC or Smart Phone (iOS, Android, Windows).
2.Built-in and replaceable battery.
3.Advanced digital imaging technology, clear image.

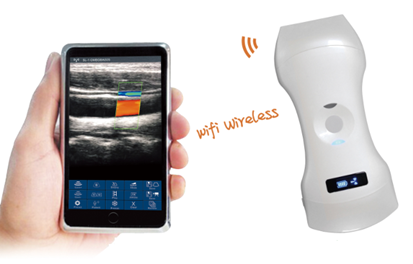

4.High cost effective.
5.Wireless connectivity, easy to operate.
6.Small and light, easy to carry.
7.Applicable in hospital, emergency, clinic, outdoor and vet inspection.
8.Intelligent terminal platform, powerful expansion functions on application, storage.
Technical Specifications
1. Scanning mode: Electronic array,convex with cardiac namely phased array or linear arrany scanning.
2. Frequency: convex probe 3.5/5MHz, linear probe 7.5/10MHz.
3. Elements:192 elements.
4. Scanning Depth:Convex 100-305mm,Linear 20-100mm,adjustable.
5. Field of view: Convex R60, Linear L40.
6. Screen: Smart phone or tablet screen.
7. Supporting system: iOS,Android,Windows.
8. Display mode:B,B/M,Color,PDI,PW.
9. Frame rate: 20f/s.
10. Image gray scale: 256 level.
11. Image/Video Storage: Store on mobile phones,Tablet PC.
12. Measure: Distance,area, obstetrics and other.
13. Power: by built in lithium battery, 4200mAh.
14. Battery working time: 3.5 hours.
15. Size: L156*W60xH20mm.
16. Net Weight: 260g.
Standard Configuration
1. Wireless Probe Device 1 unit
2. Built-in Battery and charge cable 1 set
3. User Manual copy
