Features

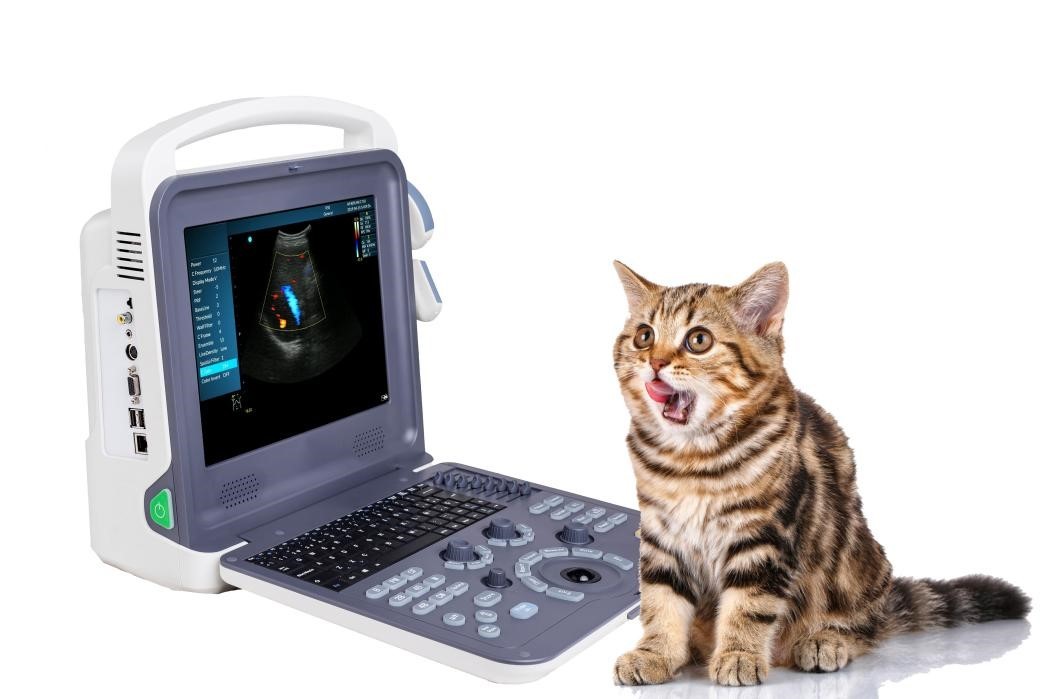

l High resolution medical LED monitor, 12 inch；
l Light-weight design, net-weight 6KG;
l Built-in Li-battery, stand up 2-3 hours;
l Two probe connected ports, could match with kinds of probes, convex probe, micro-convex and linear probe.
l Based on Lunix platform, more stable;
l Four languages: Chinese, English, Russian and French, satisfy the requirement of the most people all over the world.
l Crystal clear 2D image and sensitive Color Doppler blood flow imaging system;
l The peripherals: Ethernet interface, 2 USB Ports, VGA interface, S-video interface, Remote interface, Video interface;
l Applications: Canine, Feline, Ovine, Equine, Bovine, Swine
Technical Specifications
PARAMETER | SPECIFICATION |
Displaying mode | B, B/B, 4B, B/M, M, B/C, B/C/D, B/D, CFM, PW |
Signal processing | Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
Image processing | Power adjustable Smoothing function Edge enhancement One-key optimization Image conversion Wall filter adjustable Base line adjustable PRF adjustable AIO-Auto image optimization IZoom: Instant full screen image I-Image: intelligent optimization Storage: Direct date transfer to U disk MBF: Multi Beam Former SA: Synthetic Aperture Ultrasonic imaging Iclear: Speckle Noise Reduction CDF: Continuous Dynamic Focusing |
Normal measurement | B mode-distance, Cubage,V3L, STD_S, AreaTrace, Area, Angle, CrossLine, STD_D, ParalleLine |
Canine measurement | BD, CRL,GS,HD |
Ovine measurement | BPD, CRL |
Feline measurement | BD, HD |
Equine measurement | BPD, CD |
Bovine measurement | CRL, HD, TD |
Swine Measurement | GS, CRL |
Image magnification | 15 levels magnification |
Scanning depth | ≥280mm |
Probe elements | 80 |
Body mark | Canine, Ovine, Feline, Equine, Bovine, Swine |
Languages | China, English, Spanish, French, Russian |
Image storage format | Image storage format |
Image storage size | 16G (optional: 64G) |
Input/output ports | VGA, USB, S-Video, Video, LAN |
Standard configuration
l Main unit
l 2 probe connectors
l User’s Manual
l Built-in li-ion battery
Optional
l
3.5MHz R50 convex probe (2.0, 3.0, 3.5, 4.0, 5.5Mhz)
l 6.5MHz R15 micro-convex probe (5.0, 6.0, 6.5, 9.0, 10.0Mhz)
l 7.5MHz L40 linear probe (6.0, 6.5, 7.5, 10.0, 12.0Mhz)
l 6.0MHz L64 Transrectal probe (5.0, 6.0, 6.5, 8.0, 9.0Mhz)
l USB laser printer and Video printer
l Aluminum case
l Trolley
