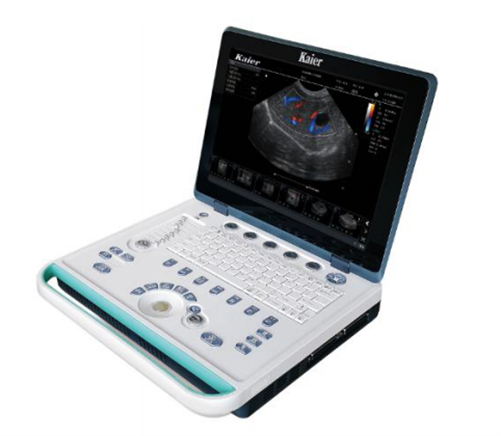

US-E80 Color Doppler Ultrasound Scanner

I. Features

VC-E80 adopts the ARM chip architecture and provides a stable and concise operating system; including B, B+B, B+M, M, 4B imaging modes; image grayscale is 256; image smoothing/sharpening, tissue harmonics, and Ma correction, intelligent 8-segment TGC control, pseudo-color processing and adjustment of up and down, left and right, brightness, focus number, focus distance, focus position, dynamic range, scanning angle, frame correlation, M speed; with date, clock, name, age , Gender, doctor, hospital name, image annotation and other functions; with different species measurement formulas, can measure distance, circumference, area, volume, heart rate and monitor gestational week (BPD, GS, CRL, HD, SLA, HLA, ESD, BTD, BUD), due date, etc.

Scope of application: Mainly used in ultrasound inspection of pigs, cattle, horses, sheep, dogs, cats, etc.



II. Technical Specifications

PARAMETER

SPECIFICATION

Operating system

Adopts ARM chip architecture, stable, concise and   powerful

Display

15-inch 1024*768 resolution high-definition LCD   screen

Display mode

B, B+B, B+M, M, 4B

Probe array element

The host can automatically identify and use a   variety of array element probes (80 array elements.96 array elements.128   array elements)

Image preset

This machine combines a large amount of clinical   experience, has different preset adjustment conditions for different species,   and has a one-key optimization function

Scanning angle adjustment

Adjustable

Image magnification

Separate knob depth adjustment (≥20 levels   adjustable)

Puncture

With puncture guide line, angle and position are   adjustable

Focus

The focus position is adjustable, the focus   position adjustment is ≥5 gears

Movie playback

≥256 frames

Image adjustment:

Up and down, left and right, brightness, focus   position, dynamic range,

scanning angle, frame correlation, M speed

Image storage

≥300 frames. External USB storage, single image   storage time is about ≤9 seconds (storage speed is related to the USB device   used)

Image processing

Image smoothing/sharpening, tissue harmonics, gamma   correction, false

color

Notes and characters

Date, clock, name, age, gender, doctor, hospital   name, image annotation

Position mark

24 kinds

Measurement function

a) Routine measurement: distance, perimeter, area,   volume;

b) Heart measurement: left atrium, right atrium,   left ventricle, right ventricle, aorta, ascending aorta, descending aorta,   aortic isthmus;

c) Obstetric measurement: gestational age (double   parietal diameter, head and tail length, gestational sac, head and neck   diameter, stomach long axis, heart long axis, skull diameter, trunk diameter,   uterine diameter), yolk sac, abdomen, large brain, amniotic fluid, Fibula   length, trunk

d) Abdominal measurement: liver, gallbladder,   kidney, abdominal aorta, iliac artery

e) Superficial measurement: thyroid, sperm cyst,   testis, breast mass, skin mass

And has different species measurement formulas

Report function

Hospital standard report page settings, you can   enter information such as

animals, physicians, diagnosis results, etc., and   automatically import selected diagnosis pictures and inspection measurement   data

External interface

VGA interface, USB2.0 interface, RS232 interface

Power saving mode

The panel button light can be turned on and off   with one button, and the

instrument will automatically turn off the power if   it is not used for 6 minutes. Press any key to resume operation

Probe

80 element R60

Detection depth

≥160mm

Lateral resolution mm

≤3(depth≤80)≤4(8depth≤130)

Axial resolution mm

≤2(depth≤80)≤3(80depth≤130)

Blind area mm

≤5

Horizontal geometric position accuracy%

≤15

Longitudinal geometric position accuracy%

≤10

Probe slice thickness index mm

≤10

Perimeter and area measurement deviation%

±20

M mode time and distance error

±10

The deviation between the working sound frequency   of the probe and the nominal frequency of the machine should be within ±15%

Grayscale

256 levels

Power supply range

AC 100V240V, tolerance   ±10%, 50Hz/60Hz, tolerance ±1Hz. DC 14V ±0.5V, 3A

Continuous working time

≥8 hours

Battery pack standby time

≥2 hours



 III. Standard configuration

l  Full digital color Doppler ultrasound host: 1 set;

l  Battery



 IV. Optional

l  Rectal probe

l  Convex probe

l  Micro convex probe: 1 pc;

l  Linear probe: 1 pc;
