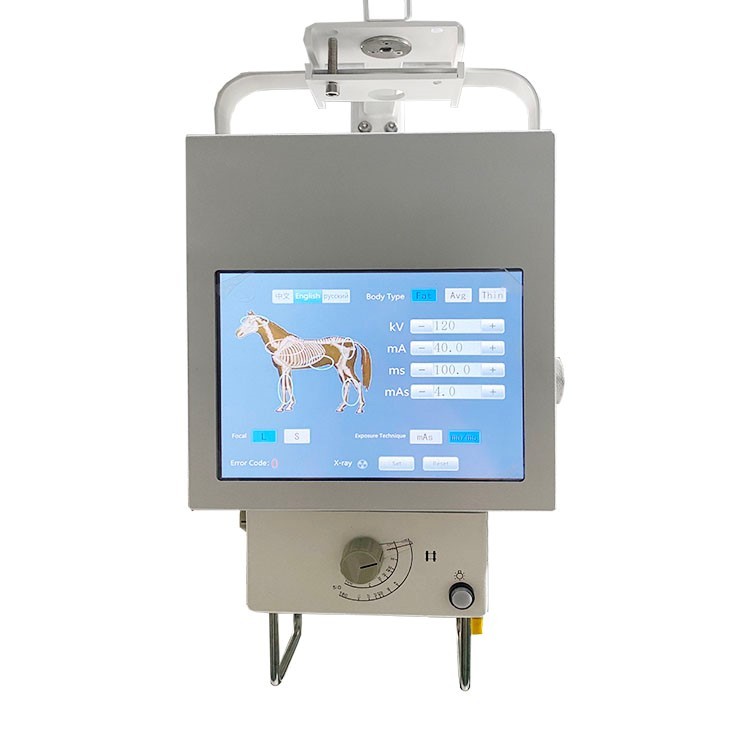

RX-100 Portable Radiography X-ray System

Features

- It can be widely used in the examination and diagnosis of animal limbs, and is suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc;

- Simple structure, small size, light weight, no environmental restrictions, no need to build a lead shielded darkroom;

- Optional mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a bedside shooting in a hospital ward;

- Three exposure control methods: remote control, hand switch, touch screen;

- Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current.

Technical Specifications

PARAMETER

SPECIFICATION

Power

5KW

Input power type

220~240VAC

Dimension

265mm(L) x 240mm(W) x 210mm(H)

Weight

15KG

Communication interface

RS-232

kV range

40kV-125kV, 1kV step

mA range

10-100mA

ms range

1 -4000ms

mAs range

0.1-200mAs

Maximum power

5.3kW

X-ray focal point value

Small focus: 0.6; Big focus: 1.8

Maximum tube current of small filament

20mA

Maximum tube current of large filament

100mA

X-ray tube inherent filtration

0.6mmAl

Combination head filter

1.5mmAl

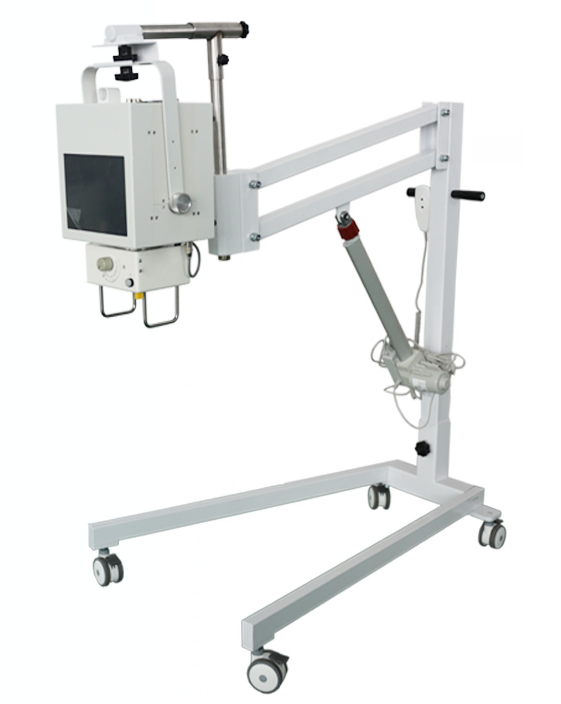

Electric Triangle Bracket (Optional)

Features

1.    Simple structure, small size, light weight, not

subject o to environmental restrictions;

2.    With mobile steering casters, it is convenient

to work in different regions and locations, and users

can deploy flexibly;

3.    Electric lift adjustment is adopted, which greatly

improves work efficiency and save time and cost



-The highest SID from the ground: 187cm

-The lowest SID from the ground: 110cm

-Power input: AC100-240V 60/60H21.4A

-Power output: DC24-30VIP64

-Packagesize:164cm×15cm×5 4cm

-Weight: 44KG



T Type Trolley (Optional)

Features

1.    Electric mobile racks can move freely and flexibly to

to meet different needs. I can be sed as hospital

ward bed, and it is also applicable to the arm hospital;

2. With a computer, desktop, you can place laptop,

computers, iPad, etc., which is more convenient to

use diagnosis;

3、         With a closed storage box(you can place the DR tablet ,

detector, dark box, CR I board and other use items);

4.    The bracket base adopts a folding, structure,

which saves space saving.



-SID is the lowest from the ground: 115cm

-SID is the highest from the ground: 220cm

-Computer desktop: 26cm ×24cm

-Storage box: 57cm × 47cm

-Land length: 90cm × 50cm

-Power input: AC 100-240V 50/60Hz 1.4A

-Power output: DC 24-30V IP54

Folding T Type Trolley (Optional)

Features

1.    The mobile rack is flexible and convenient, can meet

 the requirements of different workstations, and can

be used as bedside shooting in hospital wards;

2.    With storage box (can place DR flat panel, detectors,

cassettes, CR  IP boards and other useful items);

3. With foot brake, setting, it is safer and more

 convenient to use.

3.    The rack shas a tray, which can place laptops, ipads,

etc, making it more convenient to go out for diagnosis



-The minimum distance from the SID to the ground: 50cm

-The highest SID from the ground: 189cm

-Shelf length: 89cm

-Place the computer desktop

-length × width: 50cm×40cm

-Weight: 98.5KG

-Packagesize:122cm×73cm×146cm

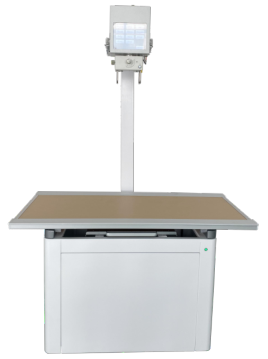

Table(Optional)



Features

-It can be used in conjunction with veterinary X-ray generator and is suitable for pet hospitals at all levels.

-It can take radiography of the head, chest, abdomen, limbs, bones and other parts of the pet when standing, lying and lying on its side.

-The product can be used in large and medium

-Sized veterinary hospitals or X-ray irradiation clinics, as well as medical research institutions and medical colleges for scientific research and teaching.

-The equipment is equipped with cassettes, which can place Cr, Dr and IP boards of different sizes;

-The desktop can float in four directions and can be locked electromagnetically.

Technical Specifications

PARAMETER

SPECIFICATION

 Bed material:

Acrylic plate

Bed size

1360mm×720mm

Bed height:

830mm

Column height:

1910mm

Horizontal movement distance of bed surface:

260mm

Vertical movement distance of bed surface:

120mm

Overall dimensions:

1360mm×720mm×1910mm
