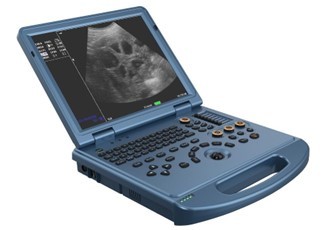

US-L6 Color Doppler Ultrasound Scanner

Features

l  15 inch LED screen, with Li-battery backup

l  Compund Imaging, 2B/4B Imaging Modes, Real-time 3D Imaging.

l  Pulse Doppler Imaging (PW), Tissue Harmonic Imaging (THI), Direction Power Doppler Imaging (DPDI).

l  Color Doppler 128 elements, Win 8, 128GB SSD.

l  Support: Chinese/ English/ Spanish/ French/ Russian

l  All-in-one clipboard: saved images display on the bottom of the screen, which can be directly transferred or deleted.

l  Interface: 5*USB; 1*Audio; 2*Lan; 1*HDMI



Technical Specifications

PARAMETER

SPECIFICATION

2D Imaging Mode

Gain

0-100, Step 1 adjustable

TGC

8 segment adjustable

Dynamic

20-280, 20 levels adjustable

Pseudo color

0-12, adjustable

Sound power

5%100%, step 5%   adjustable

Body mark

6 kinds optional

Maximum focus

≥6, which can be moved throughout the whole process

Grey scale map

0-7, 7 levels adjustable

Filter

0-4

Scanning range

50%-100%

Frame correlation

0-4, 4 level adjustable

Line density

low, middle, high, 3 levels adjustable

Noise reduction

0-14

Pseudo-color spectrum

0-11

Color Doppler Imaging Mode

Color Frame correlation

0-12, 12 levels adjustable

Color map

0-3, 3 levels adjustable

Color flip

adjustable

Base line

11 levels, adjustable

Line density

low, high, 2 levels adjustable

Filter

0-5 levels adjustable

Spectral Doppler Imaging Mode

Sampling volume angle correction

-80°80°adjustable

Sample volume

0.5mm-20mm adjustable

Frequency

4.5MHz, 6.0MHz

Base line

11 levels, adjustable

Pseudo color

0-5

Parameter display

≥4 kinds, adjustable

Speed scale

3-2288cm/s (different probes have different ranges)

Spectrum envelope function

real time automatic spectrum envelope, manual   spectrum envelope, and other. The system automatically analyses and displays   various data such as PSV, EDV, RI, PI, S/D, HR, ACC, etc.

Grey map

0-7

Filter

0-12

Dynamic range

10-95, step 5

Noise reduction

0-60

Sound volume

0-100





Various Probes

l  Convex probe (detecting depth: 30-255mm)

Fundamental Frequency: 2.5MHz/ 3.0MHz/ 3.5MHz/ 4.0MHz

    Harmonic Frequency: H4.0MHz/ H5.0MHz



l  Linear probe (detecting depth: 20-128mm)

Fundamental Frequency: 6.0MHz/ 7.5MHz/ 8.5MHz/ 10.0MHz

Harmonic Frequency: H10.0MHz



l  Micro-convex probe R15 (detecting depth: 30-111mm)

Fundamental Frequency: 4.0MHz/ 6.0MHz/ 7.0MHz/ 8.0MHz

Harmonic Frequency: H8.0MHz

l  Micro-convex probe R11 (detecting depth: 30-111mm)

Fundamental Frequency: 4.5MHz/ 6.0MHz/ 7.0MHz/ 9.0MHz

Harmonic Frequency: H8.0MHz



Graphic and Text Management System

l  Movie playback: ≥600 frames.

l  Report type: ≥6, picture proof provided.

l  Host build in 128G hard disk, start fast and stable.

l  One key fast report graphic and text management 9.6 Image format: BMP, DCM, DEFAUIT.

l  Internal file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by number, check number, name and so on.



Graphic and Text Management System

l  General measurement: distance, area, angle, time, slope, heart rate, speed, acceleration, blood flow path, blood flow spectrum trace, resistance index/ pulsation index, etc.

l  OB measurement data: Cannie, Feline, Bovine, Ovine, Equine.

l  Measurement line: color and type can be adjusted at will (including the activation color and the completion color).

l  Measurement result: display position and font size can be adjusted as needed.

l  Professional data package: Abdomen, OB, Urology, etc.
