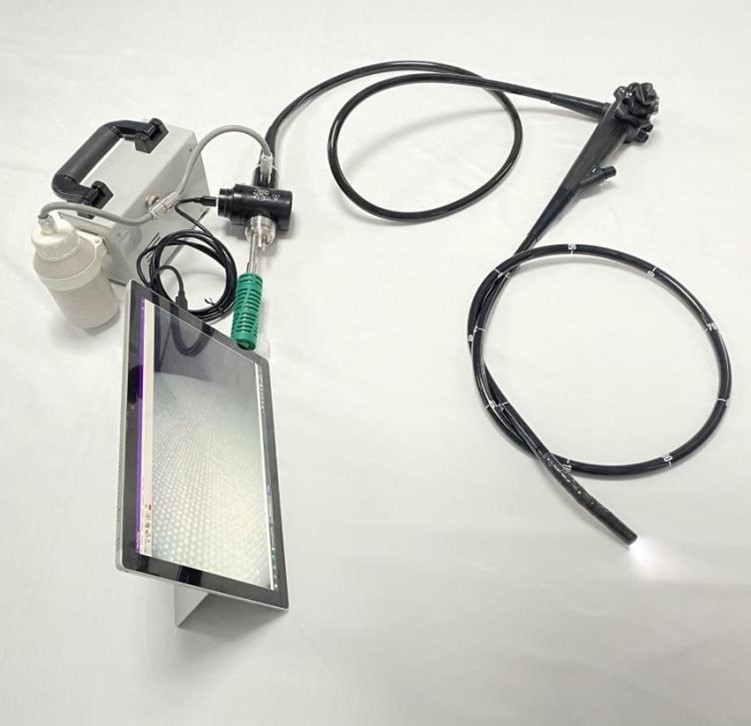

FEC-6000B Portable USB Video Gastroscope/ Colonoscope (Used for Bovine and Horse)

Features

l  The multifunctional Gastroscope using polycarbonate new composite handle, reasonable designed the clamp hole position, the washable pipe system can protect the lotion unobstructed, to prevent the pipeline blockage, with biopsy forceps hole to ensure the pliers and other devices unobstructed. When do surgery, the suction valve is convenient, removable, safe and reliable, so that users do not feel fatigue in the operation.

l  The excellent operation of the traction device an be easily transfer and adjust the bending parts to upward, downward. Can smoothly and fastly reach to the desired site of observation. And timely and accurate detection of diseased tissue.

l  The scope with multi-coated high transmittance imaging system, round field of view, wide viewing angle, wide field of view, the scene is broad and wide, 3-100 mm range can see more clear picture, so that the observation and diagnosis correctness greatly improved.

l  The high-definition CMOS camera makes users to get clearer, wide and bright image.





Technical Specifications

PARAMETER

SPECIFICATION

View of field

140°

Diameter of distal-end

Φ12.8mm

Outer diameter of insert tube

Φ12.8mm

Depth of view

3-100mm

Working length

3000mm

Working channel

Φ3.2mm

LCD

Use computer LCD

Image solution

CMOS 1,000,000 pixels

Bending range

Up 180°, Down 90°, L/R 100°



Parts List

PRODUCT NAME

UNIT

QUANTITY

Portable Gastroscope

set

1

Biopsy forceps

set

6

Cleaning brush

set

1

Leak detector

set

1

Attract valve anti jet cover

set

2

Endoscope case

set

1

Mini pump (Portable)

set

1

Charge

set

1

User manual

pc

1

Certificate

pc

1



Optional

PRODUCT NAME


SPECIFICATIONS

Laptop computer


HUAWEI MateBook D 14 SE

Light cold source machine


1. Voltage: 220V-240V

2. Frequency: 50-60HZ

3.lamp Power: 15V-150W environmentally friendly   halogen tungsten lamp

4. Illumination: 70000LX (using special measuring   tools)

5. Color Temperature: 3000~7000K

6. Air Pump Pressure: 30-60kpa

7. Air Flow: 4L/min-10L/min (Quiet pump)

Trolley
