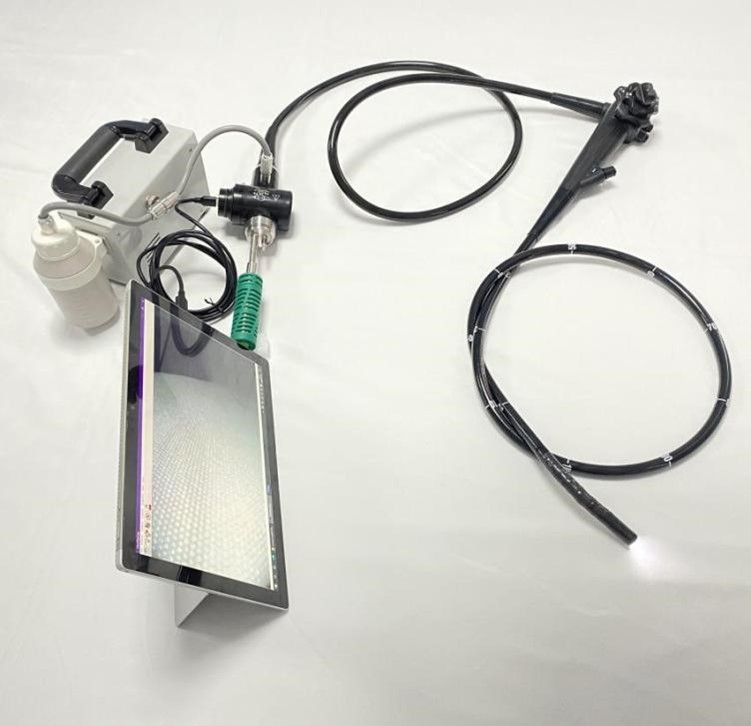

FEC-800 Portable USB Video Gastroscope/ Colonoscope (Used for Pets)

Features

l  Bending operation: Traction chain structure, whole sealed waterproof

l  Image display: Two image display optional

l  Split machine: Main part and light source are splited

l  Quality certification: ISO

l  Warranty: One year(free), permanent repairs (not free)

l  Package size: 64*18*48cm (G.W.:5.18kgs)



Technical Specifications

PARAMETER

SPECIFICATION

Diameter of distal-end

Φ8.0mm

Diameter of insert tube

Φ8.0mm

Clamp aperture

Φ2.2mm

Working length

1500mm

Total length

1800mm

View of field

140°

Depth of view

3-100mm

Resolution

CMOS 1,000,000 pixels

Tip deflection

Up 180°, Down 90°, L/R 100°



Package list

PRODUCT NAME

UNIT

QUANTITY

Portable scope

set

1

Leak detector

set

1

Biopsy forceps

pc

2

Cleaning brush

pc

2

Attract valve   anti jet cover

set

2

Endoscope case

set

1

USB line

set

1

User manual

pc

1

Certificate

pc

1



Optional

PRODUCT NAME


SPECIFICATIONS

Laptop computer


HUAWEI MateBook D 14 SE

Light cold source machine


1. Voltage: 220V-240V

2. Frequency: 50-60HZ

3.lamp Power: 15V-150W environmentally friendly   halogen tungsten lamp

4. Illumination: 70000LX (using special measuring   tools)

5. Color Temperature: 3000~7000K

6. Air Pump Pressure: 30-60kpa

7. Air Flow: 4L/min-10L/min (Quiet pump)

Trolley
