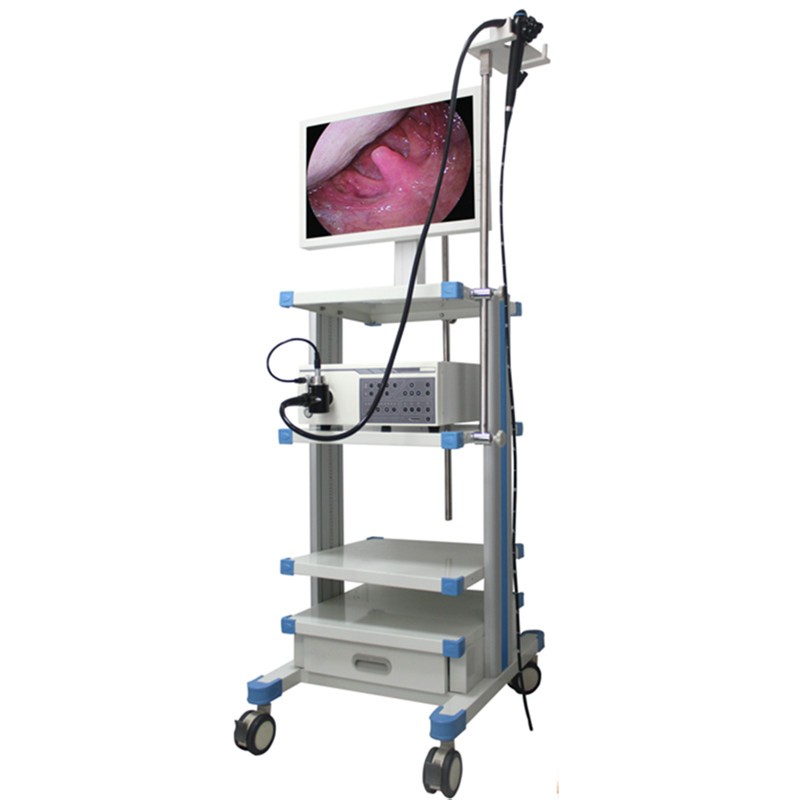

FEC-400A Video Gastroscope/ Colonoscope (Used for Dolphin or Other Similar One in Aquarium)

Specifications of Endoscope

PARAMETER

SPECIFICATION

Top diameter

Φ14.0mm

Input tube

Φ14.0mm

Biopsy channel

Φ6.0mm

Working length

≥5000mm

Total length

≥5300mm

Field of view

≥140º

Depth of field

≥3-100mm

Image solution

≥480,000 pixels (CCD)

Bending angles

Up ≥180º, down ≥90º, L/R ≥100º, maximum 230

Image frozen

16 images frozen, store, playback.

Specifications of Processer & Light Source

PAREMETER

SPECIFICATION

Contrast adjustment

0-128

Image adjustment

Color adjustment   level: 0-128, vessel enhancement

Metering mode

AVE/PEAK

Image enhance

0-30

White balance

Auto/manual   white balance

Pump

pressure 30-80Mpk, air supply 4L/min-10L/min

Illuminance

≥200,000Lx, LED light source 30,000hours life

SD record card

16G SD record card





Specifications of Suction Device

PAREMETER

SPECIFICATION

Vessel capacity

Not less than 1L

Maximum suction volume

20L / Min



Parts List

PRODUCT NAME

QUANTITY

FEC-400A video Endoscope

1

Biopsy forceps

2

Cleaning brush

1

Mouth pad

3

Leak detector

1

Leak cover

1

Clean lid

1

Attract the valve body baffle cap

2

Water bottle interface seal ring

6

Wash ear ball

1

Water injection bottle assembly

1

Endoscopic box

1

Instructions

EMV-3000 Endoscope processor &light source (With   air pump and SD record card and Rigid endoscope interface)

EMV-3000 Endoscope processor &light source (LED   lamp)

1

power cable

1

Instructions

1

Suction device

Suction device

1

power cable

1

Instructions

1

Trolley

1

19” LCD monitor
