Specifications of Endoscope
PARAMETER | SPECIFICATION |
Top diameter | ≤Φ6.5mm |
Input tube | ≤Φ6.5mm |
Biopsy channel | ≥Φ2.0mm |
Working length | ≥1200mm |
Total length | ≥1500mm |
Field of view | ≥140º |
Depth of field | ≥3-100mm |
Image solution | ≥1,000,000 pixels CMOS |
Bending angles | up ≥180º, down ≥ 90º, left&right ≥ 100º |
Image frozen | Images frozen, video and picture record |
Specifications of Processer & Light Source (LED Light)
PAREMETER | SPECIFICATION | PICTURE |
Lamp | LED light (80W white) | |
Power | 220-240V; 50-60HZ | |
Color temperature | ≥5300K,140000lx illumination | |
Brightness | 0-10 level adjustable | |
Video signal output | HDMI x2, DVI | |
Air pump pressure | 30-60Mpk | |
Air pump power | Strong/ medium/ weak 3 level adjustable | |
Air flow | 4-10 L/min | |
Sharpness adjustment | Supports automatic and manual modes, the manual mode supports 0-10 level adjustment | |
Withe balance | It supports 4 kinds of fixed white balance parameter selection, real-time dynamic white balance mode and manual white balance parameter setting mode, or one click white balance | |
Gain function | It supports automatic and manual modes, and the manual mode supports 0-16 level gain adjustment and 0-30 level exposure time adjustment | |
Vascular enhancement | Can increase vascular clarity | |
Electronic amplification | Support 1.2/1.5/1.7/2.0 times 4-gear electronic amplification function | |
Bad point correction | Support 0-6 level image bad point correction | |
Package size | 60*30*50cm (G.W.:13kgs) | |
Main Function | Image adjustment: supports 0-100 level brightness, contrast and saturation adjustment. Support full screen image freezing and half screen mode to freeze large images and dynamically display small images. With USB interface support picture and video record function and pictures playback function. Support connect same series Video Gastroscope, Colonoscope, bronchoscope, laryngoscope, Cystoscope, Ureteroscope share this tower use. |

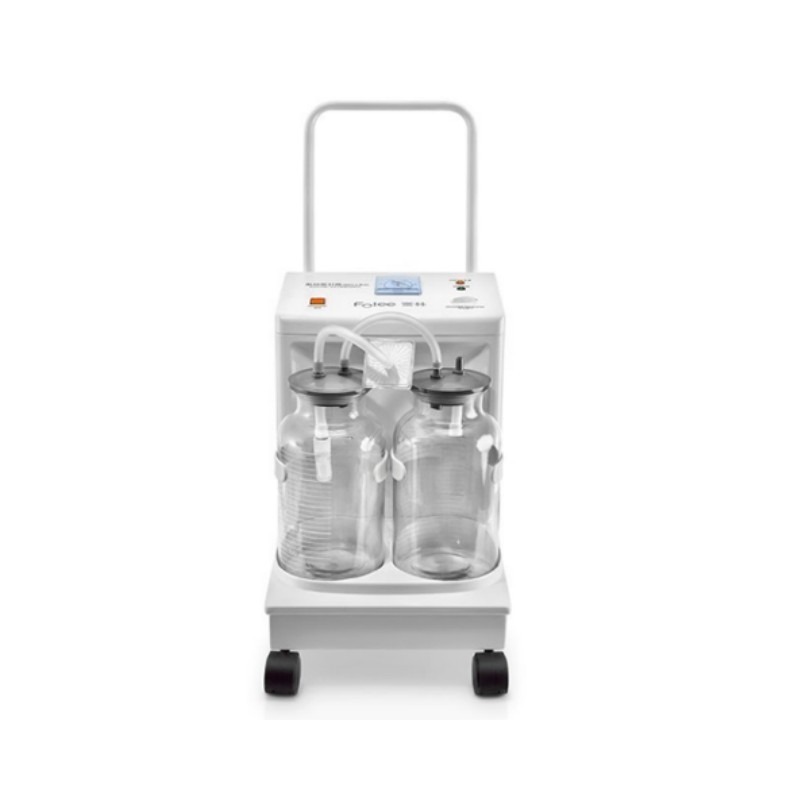

Specifications of Suction Device
PAREMETER | SPECIFICATION |
Vessel capacity | Not less than 1L |
Maximum suction volume | 20 L / Min |

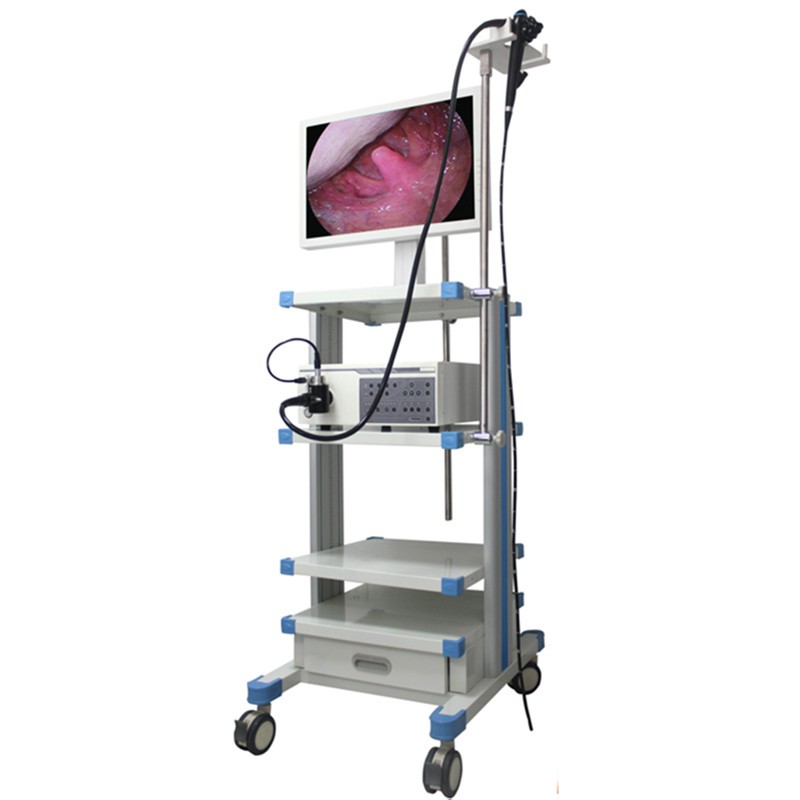

Endoscopy trolley and HD LCD Monitor
PAREMETER | SPECIFICATION |
Trolley | |
Monitor | Samsung / Phillips 24” HD LCD monitor 1920X 1080 |
Package List
PRODUCT NAME | |
Video Flexible endoscopee | |
Video gastroscope FEC-8600 | 1 |
Biopsy forceps | 6 |
Cleaning brush | 1 |
Mouth pad | 3 |
Leak detector | 1 |
Leak cover | 1 |
Clean lid | 1 |
Attract the valve body baffle cap | 2 |
Water bottle interface seal ring | 6 |
Wash ear ball | 1 |
Water injection bottle assembly | 1 |
Endoscopic box | 1 |
Instructions | 1 |
EMV-3000 Endoscope processor &light source(With air pump, USB disk) | |
EMV-3000 Endoscope processor &light source(LED lamp) | 1 |
power cable | 1 |
Instructions | 1 |
Suction device | |
Suction device | 1 |
power cable | 1 |
Instructions | 1 |
Trolley | 1 |
24” LCD monitor | 1 |
