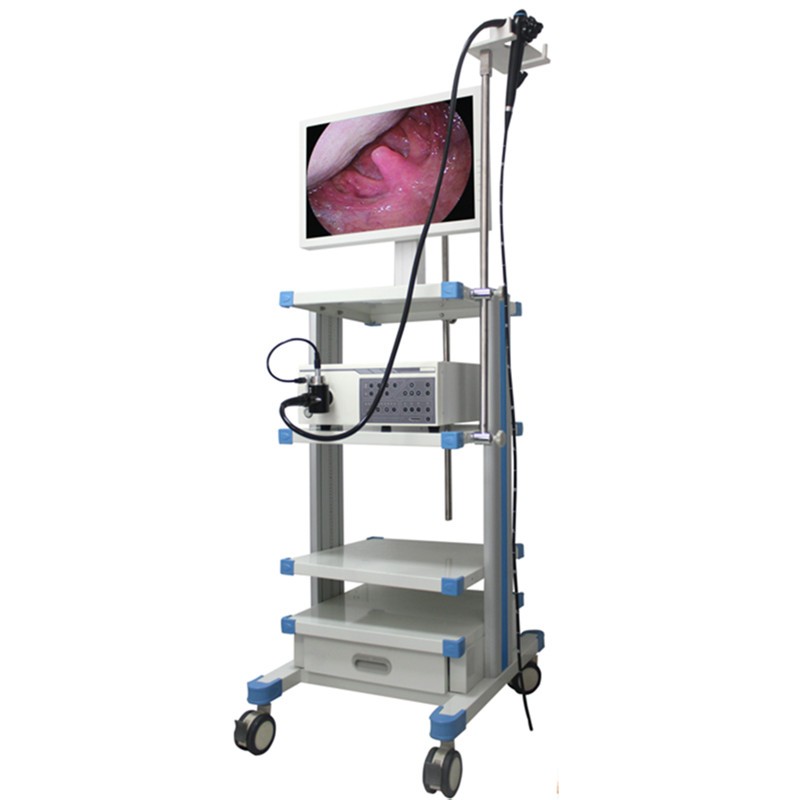

FEC-8800 Video Gastroscope/ Colonoscope (Used for Small Pets)

Top diameter

≤Φ8.0mm

Input tube

≤Φ8.0mm

Biopsy channel

≥Φ2.0mm

Working length

≥1500mm

Total length

≥1800mm

Field of view

≥140º

Depth of field

≥3-100mm

Image solution

≥1,000,000 pixels CMOS

Bending angles

≥up 210º down ≥90º left&right ≥100º

Image frozen

Images frozen, video and picture record

Lamp

LED light (80W white)

Power

220-240V; 50-60HZ

Color temperature

≥5300K,140000lx illumination

Brightness

0-10 level adjustable

Video signal output

HDMI x2, DVI

Air pump pressure

30-60Mpk

Air pump power

Strong/ medium/ weak 3 level adjustable

Air flow

4-10 L/min

Sharpness adjustment

Supports automatic and manual modes, the manual   mode supports 0-10 level adjustment

Withe balance

It supports 4 kinds of fixed white balance   parameter selection, real-time dynamic white balance mode and manual white   balance parameter setting mode, or one click white balance

Gain function

It supports automatic and manual modes, and the   manual mode supports 0-16 level gain adjustment and 0-30 level exposure time   adjustment

Vascular enhancement

Can increase vascular clarity

Electronic amplification

Support 1.2/1.5/1.7/2.0 times 4-gear electronic   amplification function

Bad point correction

Support 0-6 level image bad point correction

Package size

60*30*50cm (G.W.:13kgs)

Main Function

Image adjustment: supports 0-100 level brightness, contrast   and saturation adjustment.

Support full screen image freezing and half screen   mode to freeze large images and dynamically display small images.

With USB interface support picture and video record   function and pictures playback function.

Support connect same series Video Gastroscope,   Colonoscope, bronchoscope, laryngoscope, Cystoscope, Ureteroscope share this   tower use.

Vessel capacity

1L

Maximum suction volume

20 L / Min

Trolley

Monitor

Samsung / Phillips

24” HD LCD monitor

1920X 1080

Video Flexible endoscopee

Video gastroscope FEC-8800

1

Biopsy forceps

6

Cleaning brush

1

Mouth pad

3

Leak detector

3

Leak cover

1

Clean lid

1

Attract the valve body baffle cap

2

Water bottle interface seal ring

6

Wash ear ball

1

Water injection bottle assembly

1

Endoscopic box

1

Instructions

1

HED-3000 Endoscope processor &light source（With air pump, USB disk）

HED-3000 Endoscope processor &light source（LED lamp）

1

power cable

1

Instructions

1

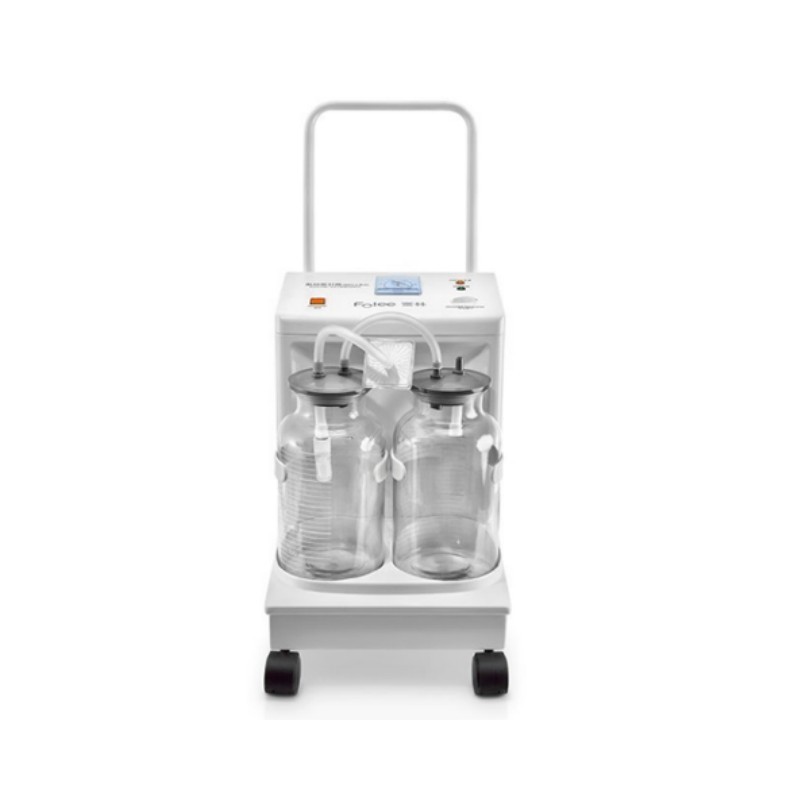

Suction device

Suction device

1

power cable

1

Instructions

1

Trolley

1

24” LCD monitor

1
