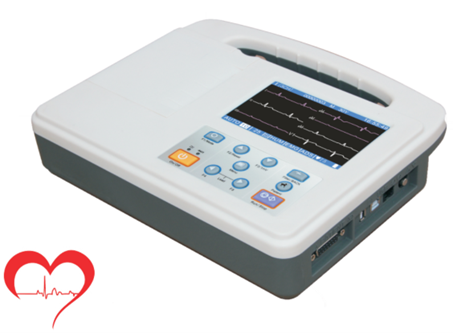

ECG-3B 3 ECG Machine (Three Channel)

Product Features

1.      Compact in size and ergonomic design, very easy to operate, portable.

2.      80mm, three channel format recording with interpretation; Recording mode: 1ch+V,3ch, 3ch+V.

3.      Three working modes: Auto, Manual and Arrythmia Analysis.

4.      High accuracy digital filter; Automatic baseline adjustment.

5.      7 leads simultaneously acquisition and display.

6.      800x480 graphic 5 inch color LCD displays detailed ECG information.

7.      250 cases of ECG can be stored and displayed.

8.      Adapt to 110-230V, 50/60Hz power supply.

9.      Rechargeable Ni-ion battery supports continuous work for about 9 hours.

10.  With UART and USB communication interface, optional for connection to laser printer and U disk.

11.  PC ECG Management software is optional.



Technical Specifications

PARAMETER

SPECIFICATION

Lead

Standard 7 leads

Lead acquisition

12bit/1000Hz   (synchronously 7 leads)

Work mode

Auto, Manual,   R-R (Rhythm Analysis)

Filter

AC Filter: 50Hz   / 60Hz

EMG Filter:   25Hz/45HZ

Anti-Drift   Filter: 0.15Hz (Adaptive)

CMMR

≥ 100dB (with AC   Filter)

Input Circuit

Floating: Protection   circuit against Defibrillator effect

Input impedance

≥ 50MΩ

Input circuit   current

≤ 0.05µA

Patient current   leakage

<10µA

Calibrating   voltage

1mV±2%

Voltage   tolerance

>/=500mV

Time constant

>/=3.2s

Frequency   response

0.05~160Hz   (-3db)

Noise level

<15µVp-p

Inter-channel   interference

≤0.5mm

Sensitivity

Auto, 2.5, 5,   10, 20, 40mm/mV

Recording mode

1ch+V,3ch,3ch+V

Paper speed

6.25, 12.5, 25,   50mm/s (± 3%)

Paper

80mmx20m roll   paper

Communication

UART / USB port

Power supply

AC: 110-230V, 50   / 60Hz

DC: Rechargeable   Ni-ion battery

Dimension and   Weight

260mmx217mmx58mm/1.4kgs



Standard Package

Main Unit                      1 unit

Veterinary patient cable with electrodes                      1 pc

Patient cable                                         1 pc

Electrodes for Vet.                                       1set (5pcs)

Paper axis                                               1 pc

Thermal printing paper                                    1 roller

Fuse                                                  2 pcs

Power cord                                             1 pc

Adapter                                                1 pc
