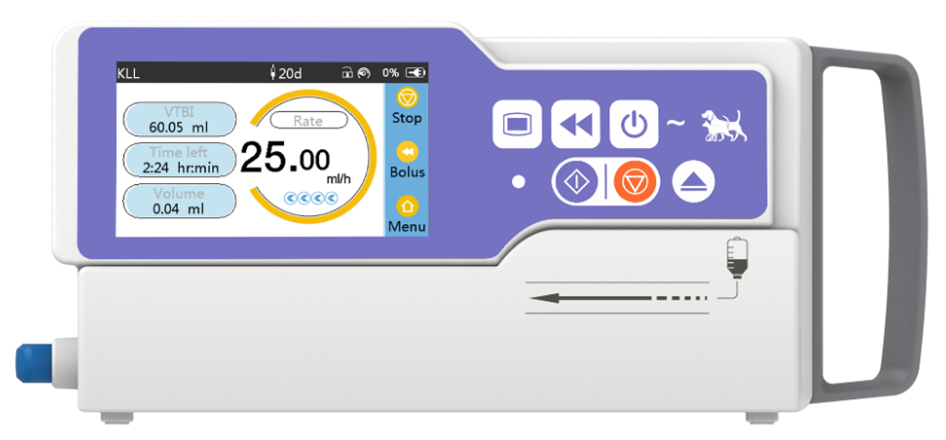

IP-70 Infusion Pump

Screen

4.3-inch LCD color touch screen

Infusion Mode

ml/h (include Rate mode, Time mode), Body weight,   Drip, Loading-dose, Ramp up/down, Sequence, Drug Library mode

Accuracy

±5%

Flow Rate Range

0.01-1200ml/h (increment 0.01ml/h)

VTBI

0-9999 ml

KVO

0.01-5ml/h adjustable

Bolus Rate

0.1-1200ml/h (automatic & manual bolus   available)

Occlusion Level

12 levels selectable

Interface

MINI USB

Wireless

WIFI (optional)

Alarm Type

VTBI Infused, Pressure high, Check upstream,   Battery empty, KVO finished, Door Open, Air bubble, VTBI near end, Battery   near empty, Reminder alarm, No power supply, Drop sensor connection, System   error, etc.

Special Features

Titration

Change flow rate without stopping infusion

Last Therapy

Last therapies can be stored and used for rapid   infusion

Drug Library

No less than 2000 drugs

Anti-Bolus

Automatic drop line pressure to reduce bolus impact   after occlusion

Purge

Remove the air bubble

Screen Lock

Avoid misoperation

Standby Mode

Standby time 00-99h59m adjustable

Relay Mode

Different pumps work in sequence on infusion   workstation (optional)

Micro Mode

Limit the max infusion rate to double ensure   patient safety

DPS

Real-time pressure display in graphically and   numerically

Bubble Detector

Adjustable

Brightness

Adjustable

Alarm Volume

Adjustable

History Record

More than 5000 entries

Power Source

AC Power

110V-240V, 50/60Hz

External DC Power

12V

Battery

Lithium Polymer battery 11.1V 2600mAh

More than 9 hours operating time @ 25ml/h

Less than 5 hours for fully charged

Others

Classification

Class I, CF

Waterproof

IP24

Dimension

235(L)*95(W)*120(H) mm

Weight

Approx. 1.6kg
