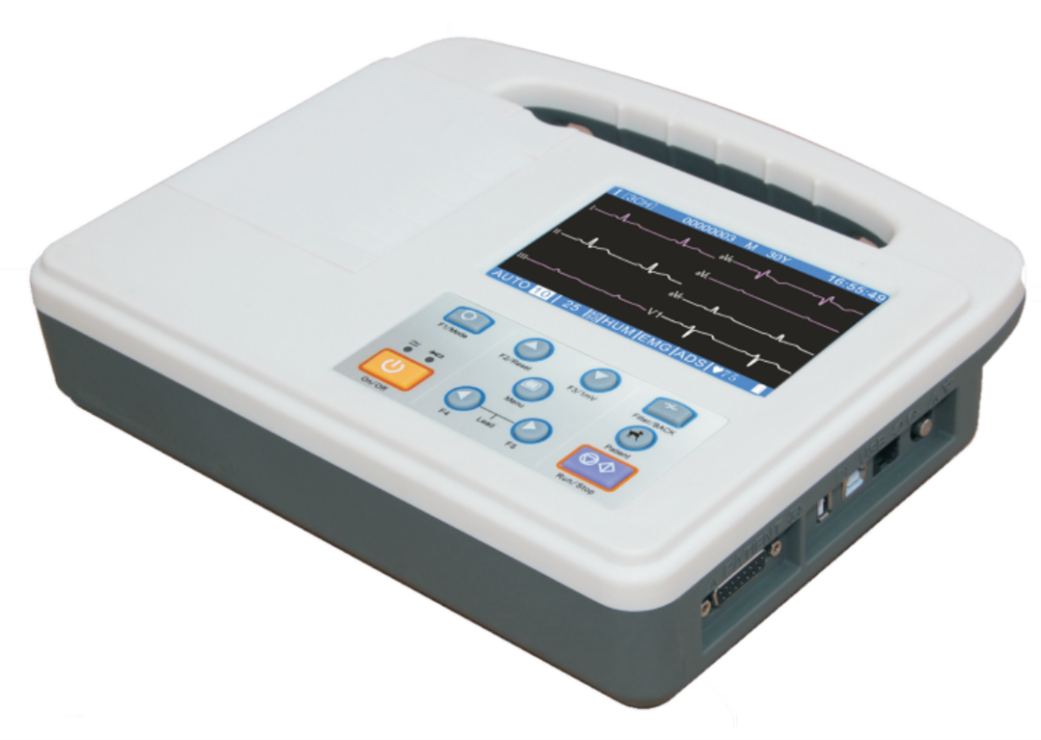

Product Features
1. Compact in size and ergonomic design, very easy to operate, portable.
2. 80mm, three channel format recording with interpretation; Recording mode: 1ch+V,3ch, 3ch+V.
3. Three working modes: Auto, Manual and Arrythmia Analysis.
4. High accuracy digital filter; Automatic baseline adjustment.
5. 7 leads simultaneously acquisition and display.
6. 800x480 graphic 5inch color LCD displays detailed ECG information.
7. 250 cases of ECG can be stored and displayed.
8. Adapt to 110-230V, 50/60Hz power supply.
9. Rechargeable Ni-MH battery supports continuous work for over 4 hours.
10. With Rs232 and USB communication interface, optional for connection to laser printer and U disk.
11. PC ECG Management software is optional.
Technical Specifications
PARAMETER | SPECIFICATION |
Lead | Standard 7 leads |
Lead acquisition | 12bit/1000Hz (synchronously 7 leads) |
Work mode | Auto, Auto 2, Man, Analysis |
Filter | AC Filter: 50Hz / 60Hz |
EMG Filter: 25Hz/45HZ | |
Anti-Drift Filter: 0.15Hz (Adaptive) | |
CMMR | ≥100dB (with AC Filter) |
Input Circuit | Floating: Protection circuit against Defibrillator effect |
Input impedance | ≥50MΩ |
Input circuit current | ≤0.05µA |
Patient current leakage | <10µA |
Calibrating voltage | 1mV±2% |
Voltage tolerance | ≤±500mV |
Time constant | ≤3.2s |
Frequency response | 0.05~160Hz (-3db) |
Noise level | <15µVp-p |
Inter-channel interference | ≤0.5mm |
Sensitivity | Auto, 2.5, 5, 10, 20, 40mm/mV |
Recording mode | 1ch+V, 3ch, 3ch+V |
Paper speed | 6.25, 12.5, 25, 50mm/s (±3%) |
Paper | 80mmx20m roll paper |
Communication | Rs232 / USB port |
Power supply | AC-110-230V, 50 / 60Hz |
DC: Rechargeable Ni-MH battery | |
Dimension and Weight | 260mmx217mmx58mm/1.4kgs |
Standard Package
Main Unit 1 unit
Veterinary patient cable with electrodes 1 pc
Grounding cable 1 pc
Paper axis 1 pc
Thermal printing paper 1 roller
Fuse 2 pcs
Power cord 1 pc
Adapter 1 pc
