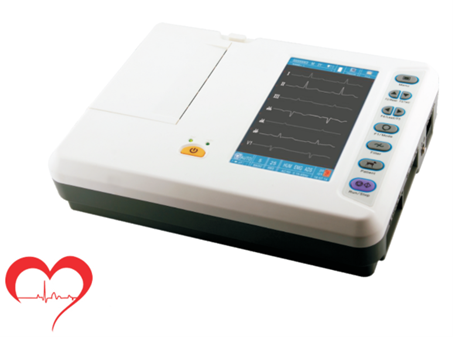

ECG-6G 6 VET ECG Machine (Six Channel)

Product Features

1.      Compact in size and ergonomic design, very easy to operate, portable.

2.      112mm, six channel format recording with interpretation; Recording format: 3ch, 3ch+V, 6ch.

3.      Three working modes: Auto, Manual and Arrythmia Analysis.

4.      High accuracy digital filter; Automatic baseline adjustment.

5.      7 leads simultaneously collection and display.

6.      800x480 graphic 7 inch color touch LCD to display detailed ECG information.

7.      250 cases of ECG can be stored and displayed.

8.      Adapt to 110-230V, 50/60Hz power supply.

9.      Rechargeable Li-ion battery supports continuous work over 6 hours.

10.  With Rs232 and USB communication interface for connection to laser printer and u disk.

11.  PC ECG Management software is optional.



Technical Specifications

PARAMETER

SPECIFICATION

Lead

Standard 7 leads

Lead acquisition

12bit/1000Hz   (synchronously 7 leads)

Work mode

Auto, Auto 2,   Man, Analysis

Filter

AC Filter : 50Hz   / 60Hz

EMG Filter :   25Hz/45HZ

Anti-Drift   Filter : 0.15Hz ( Adaptive )

CMMR

≥ 100dB ( with   AC Filter )

Input Circuit

Floating:Protection   circuit against Defibrillator effect

Input impedance

≥ 50MΩ

Input circuit   current

≤ 0.05µA

Patient current   leakage

<10µA

Calibrating   voltage

1mV±2%

Voltage   tolerance

≤±500mV

Time constant

≤3.2s

Frequency   response

0.05~160Hz   (-3db)

Noise level

<15µVp-p

Inter-channel   interference

≤0.5mm

Sensitivity

Auto, 2.5, 5,   10, 20, 40mm/mV

Recording mode

3ch,3ch+V.6ch

Paper speed

6.25, 12.5, 25,   50mm/s ( ± 3%)

Paper

112mmx20m roll   paper

Communication

Rs232 / USB port

Power supply

AC-110-230V, 50   / 60Hz

DC: Rechargeable   Ni-MH battery

Dimension and   Weight

300mmx230mmx72mm/2.8kgs



Standard Package

Main Unit                      1 unit

Veterinary patient cable with electrodes                      1 pc

Grounding cable                                         1 pc

Paper axis                                               1 pc

Thermal printing paper                                    1 roller

Fuse                                                  2 pcs

Power cord                                             1 pc

Adapter
