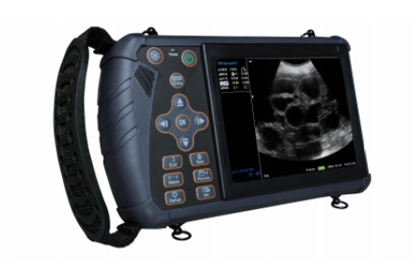

US-S1 Digital B/W Ultrasound Scanner

Features

l  It is suitable for pigs, dogs, cats, sheep, cattle, horses and other animals.

l  5.6 inch LED display.

l  User-friendly operation interface.

l  Display mode: B, 2B, B/M.

l  USB, TF card ports are for convenient and fast image storage and playback.

l  Integrated long life lithium battery ensure long power outages check, AC and DC dual-use.

l  Real-time dynamic beam apodization.





Technical Specifications

PARAMETER

SPECIFICATION

Focus

three sections electronic focus, support point by   point focus

Gain adjustment

main gain, near and far field adjustment can reach   255

Frame correlation

15 adjustable

Scan mode

convex array

Scanning depth

57-230mm, 15 levels adjustable

Cine loop

255 frames

Built-in battery

rechargeable lithium-ion battery, imported 2600mAh   standard batteries, more than 4 working hours

Display mode

B, B + B, B/M

Gray

256 levels

Pseudo color

8 kinds

Image magnification

15 levels magnification

Measurements

distance, perimeter, area, volume, gestational age

Image processing

up / down, left / right flip, pseudo color   processing, frame correlation, focus conversion

Gain regulation

near field, far field, main gain dynamic adjustable   continuously

Interfaces

mini USB interface, TF card interface

Machine size

240*120*45mm

Power consumption

25W

Weight

950g



Standard configuration

l  Machine (including a lithium-ion battery)

l  6.5MHz rectal probe

l  User's Manual

l  Adapter

l  8G TF memory card

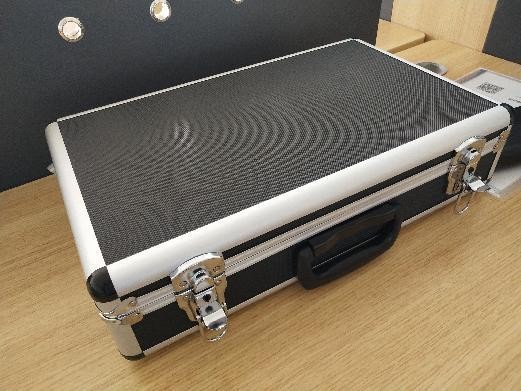

l  Aluminum suitcase





Optional

l  7.5MHz high-frequency linear probe,

l  3.5MHZ electronic convex probe

l  7.5MHz back fat probe

l  5.0MHz micro-convex probe

l  Lithium-ion battery

l  Car adapter

l  External charger

Horseshoe converter
