US-S10 Digital B/W Ultrasound Scanner

Application

1. It is applied to cow, horse, sheep, swine, cat, dog.

2. Pregnancy test and measurement of back fat thickness in large animals such as cattle,sheep, horses and pigs.

3. Middle and small animals, liver, gallbladder, spleen, kidney, bladder, uterus and other tissues and organs inspection and diagnosis of lesions.

Features

1. Display mode: B, B + B, 4B, B + M, M.

2. With Li-battery backup (4-8h)

3. Support OB Report

4. 12 inch LCD monitor

5. THI and Histogram function

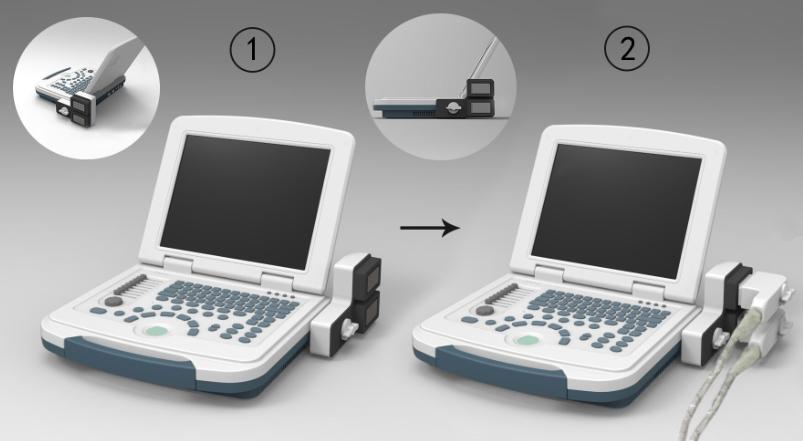

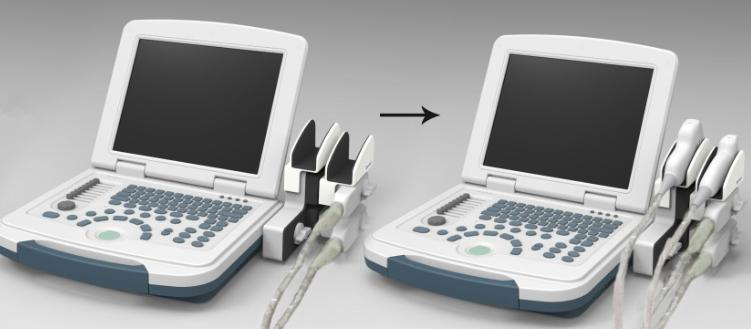

6. One probe socket (with probe socket for option, to enable two sockets)

7. Support: Chinese/ English/ Spanish/ French/ Portuguese/ Russian

Technical Specifications

PARAMETER	SPECIFICATION
Probe Depth	16 levels
Probe Frequency	5 levels
Main gain	0-100%
8 TGC	adjustable
Focus	4
Image storage	4920 images
Pseudo color	0-7
Scanning area(angle)	3 levels
Edge enhancement	0-3
Linear correlation	0-5
Gamma correction	0-7
Frame correlation	0-3
Dynamic range	0-135
Cine loop	512 frames
Body mark	≥17 kinds, able to customize ( pig * 3, dog * 2, cattle * 2, horse * 2, cat * 2, goat * 2, camel * 2, sheep * 2)
Scanning depth	max 189mm, micro-convex probe
U Disk support	FAT32 format
Image reversal	up/down, left/right, black/white
Measurement	≥8 kinds ( pig, cattle, dog, horse, cat, goat, camel, sheep)
Probe frequency	Convex 3.5MHZ: 2.0MHz、2.5MHz、3.5MHz、4.0MHz、5.0MHz
	Micro-convex 6.5MHz: 5.0MHz、5.5MHz、6.5MHz、7.0MHz、7.5MHz
	Linear/ rectal 7.5MHz: 5.5MHz、6.5MHz、7.0MHz、7.5MHz、9.0MHz
