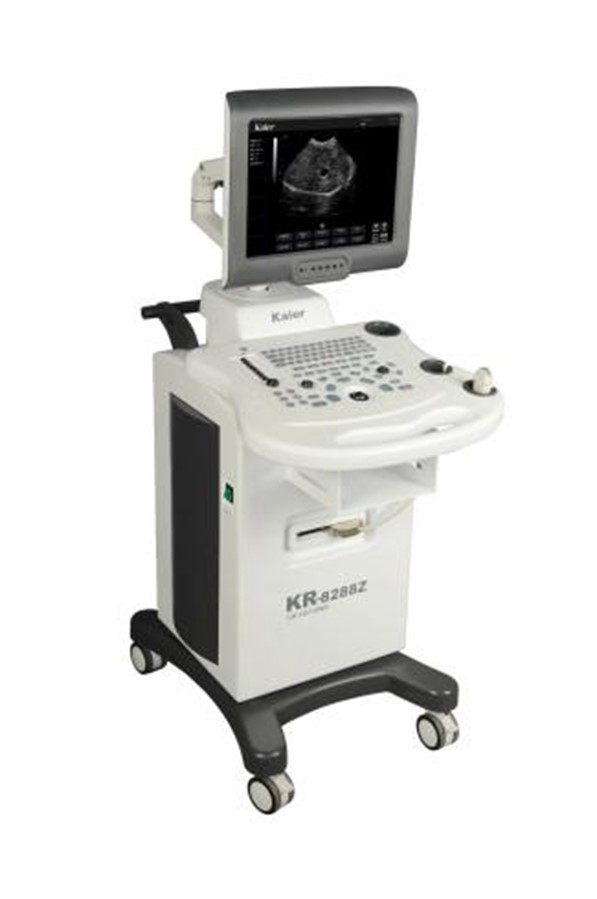

US-8Z Digital B/W Ultrasound Scanner

I. Features

VC-82Z adopts ARM chip architecture to provide a stable and concise operating system; including B, B+B, B+M, M, 4B imaging modes; image grayscale is 256; image smoothing/sharpening, tissue harmonics, gamma Mar correction, intelligent 8-segment TGC control, pseudo-color processing and adjustment of up and down, left and right, brightness, focus number, focus distance, focus position, dynamic range, scan angle, frame correlation, M speed; with date, clock, name, age, gender, doctor, hospital name, image annotation and other functions; with different species measurement formulas, can measure distance, circumference, area, volume, heart rate and monitor gestational age (BPD, GS, CRL, HD, SLA, HLA, ESD, BTD, BUD), due date, etc.



II. Scope of application

Mainly used for ultrasound examination of pigs, cattle, horses, sheep, dogs, cats, etc.



III. Technical Specifications

PARAMETER

SPECIFICATION

Operating system

using ARM chip architecture, stable, concise and   powerful

Display

15-inch high-resolution LED /LCD screen(optional)

Display mode

B, B+B, B+M, M, 4B

Probe array element

The host can automatically identify and use a   variety of array element probes (80 array elements. 96 array elements. 128   array elements)

Image preset

This machine combines a lot of clinical experience,   has different preset adjustment conditions for different species and has a   one-key optimization function

Movie playback

≥256 frames

Image storage

≥300 images. External USB storage, the time to   store a single image is about ≤9 seconds (the storage speed is related to the   USB device used)

Scanning angle adjustment

adjustable

Image enlargement

separate knob depth adjustment (≥20 levels   adjustable)

Puncture

with puncture guide line, the angle and position   are adjustable

Focus

adjustable focus position, focus position   adjustment ≥ 5 steps

Image adjustment

up and down, left and right, brightness, focus   position, dynamic

range, scan angle, frame correlation, M speed

Image processing

image smoothing/sharpening, tissue harmonics, gamma   correction, false color

Annotations and characters

date, clock, name, age, gender, doctor, hospital   name, image annotation

Body position markers

24 types

Measurement function

Routine measurement

distance, perimeter, area, volume

Cardiac measurements

left atrium, right atrium, left ventricle, right ventricle,   aorta, ascending aorta, descending aorta, aortic isthmus

Obstetric measurements

gestational age (biparietal diameter, head and tail   length, gestational sac, head and neck diameter, stomach long axis, heart   long axis, skull diameter, trunk diameter, uterine diameter), yolk sac,   abdomen, large and small brain, amniotic fluid, fibula length, trunk

Abdominal measurements

liver, gall bladder, kidney, abdominal aorta, iliac   artery

Superficial measurement

thyroid, sperm, testis, breast mass, skin mass and   have different species measurement formulas

Report function

hospital standard report page setting, you can   enter information suchas animals, doctors, diagnosis results, etc., and   automatically import the selected diagnosis pictures and inspection   measurement data

External interface

VGA interface, dual USB2.0 interface, RS232   interface

Power-saving mode

the panel button light can be turned on and off   with one button,

the instrument will automatically turn off if it is   not used for 6 minutes, and the operation can be resumed by pressing any   button

Performance

Probe

80 array elements R60

Probe nominal frequency

6.5MHz

Detection depth

≥160mm

Lateral resolution mm

≤3 (depth≤80) ≤4 (8depth≤130)

Axial resolution mm

≤2 (depth≤80) ≤3 (80depth≤130)

Blind area mm

≤5

Horizontal geometric position accuracy%

≤15

Longitudinal geometric position accuracy%

≤10

Probe slice thickness index mm

≤10

Perimeter and area measurement deviation %

±20

M mode time and distance error

±10

Gray scale

256 levels

The deviation between the working sound frequency   of the probe and the nominal frequency of the machine should be within ±15%

Power supply range

AC 100V240V, tolerance   ±10%, 50Hz/60Hz, tolerance ±1Hz.

DC 14V ±0.5V, 3A

Continuous working time

≥8 hours





III. Standard configuration

l  Full digital color Doppler ultrasound host: 1 set;

l  Instructions documents: 1 set;





V. Optional

l  Micro convex probe: 1 pc;

l  Rectal probe

l  Convex probe
