Welcome: HQS VETCARE

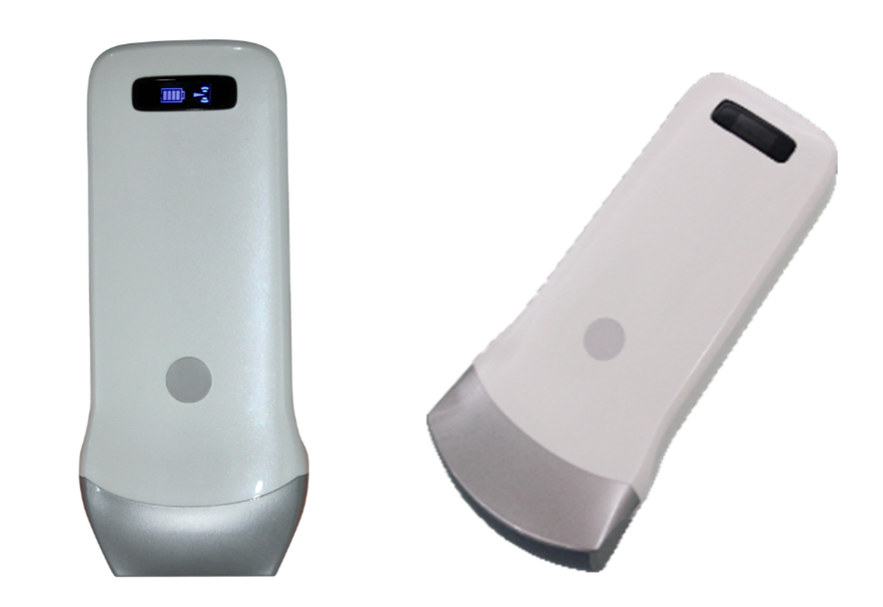

US-3C/ US-3L Convex/ Linear Probe Type Wireless Ultrasound Scanner

Introduction

The wireless probe scanner is with integrated ultrasound circuit boards inside, can wireless connect to the PC Tablet and Smart Phone after installed ultrasound software, then realize the functions of a ultrasound scanner. It is small and smart, convenient for carry and operation.





Application Range

1. The wireless probe can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.

2. Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.





Features

1. Workable with Tablet or Smart Phone.

2. Built-in and replaceable battery.

3. Advanced digital imaging technology, clear image.

4. High cost-effective.

5. Wireless connectivity, easy to operate.

6. Small and light , easy to carry.

7. Applicable in emergency, clinic, outdoor and vet inspection.

8. Intelligent terminal platform, powerful expansion functions on application, storage, communication, printing.





Technical Specifications

PARAMETER

SPECIFICATION

Scanning mode

Electronic array

Display mode

B/W Probes: B, B/M

Scanning Frequency

Convex: 3.5MHz

Linear: 7.5MHz

Scanning Depth   (adjustable)

Convex:   100mm~280mm

Micro-Convex: 100mm~200mm

Image Adjust

Gain, Focus, Harmonic, Denoise

Puncture assist function

the function of in-plane puncture guide line,   out-of-plane puncture guide line, automatic blood vessel measurement, and the   enhancement function of needle point development.

Measure

Length, Area, Angle, Obstetrics

Image frame rate

18 frames/second

Battery working time

3 hours

Charging method

USB charging, or wireless charging

Dimension

Convex/ Linear:   156*60*20mm;

Weight

270g

Wifi type

802.11g/ 20MHz/ 5G/ 450Mbps

Working system

Apple iOS, Android, Windows
