Technical Specifications
PARAMETER | SPECIFICATION |

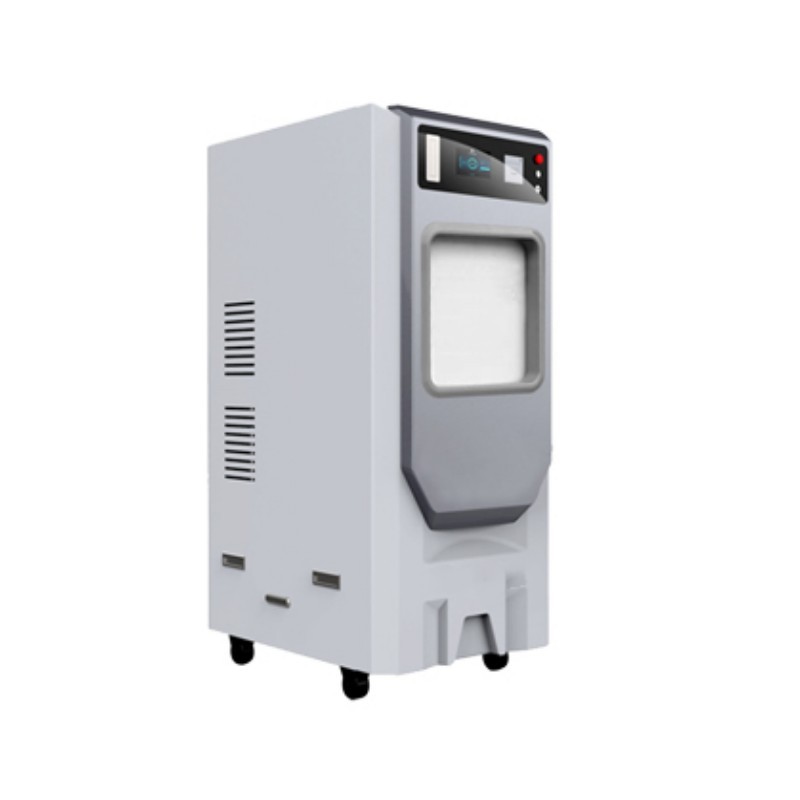

Product name | Low temperature plasma hydrogen peroxide sterilizer |
Product form | Automatic door vertical |
Heating method | Electric heating |
Power Volume Chamber size | HO-DZ100: 3.5KVA / 100L (Liner size: 700 × 430 × 360mm) HO-DZ130: 4.2KVA / 135L (Liner size: 750 × 450 × 400mm) HO-DZ220: 4.8KVA / 190L (Liner size: 820 × 510× 460mm) |
Power | AC220V, 50Hz |
Working temperature | 40-60 ℃ |
Select sterilizer | 58%-60% hydrogen peroxide (H202) |
Sterilization time | 35-55 minutes |
Installation environment | 10-40℃ |
Temperature display | LCD touch screen |
Maximum anti-stress value | 10pa |
Operation height | ≤160cm |
Material of Sterilization Room | Using high-quality 5052 aluminum material, the cavity structure is rectangular, to improve space utilization, cavity thickness ≥ 8mm, has excellent thermal conductivity. |
Outer box material | ABS plastic disposable plastic. |
Electrode mesh material | aluminum alloy material 5052, sheet metal forming, thickness ≥ 2mm. |
Sealing door material | 5052 aluminum alloy material, thickness ≥15mm. |
Loading method | The upper and lower two layers of aluminum alloy punching plates are loaded with sterilized items, with large loading capacity and high space utilization rate. |
Door opening method | Adopt a jack-driven electric lifting door and a light-sensing infrared sensor switch to control the opening and closing of the sterilization chamber door. |
Door anti-pinch function | has the function of door barrier switch. |
Cavity temperature heating power | Preheating heating time ≤30min. |
Main insulation | ≥20mm rubber and plastic sponge. |
Full automatic control system | LCD circuit touch screen display PLC circuit design, safe and reliable, the system can be maintained and upgraded. |
Printer | A micro-printer is used to print out the data every minute during the entire sterilization process, which can be permanently saved. |
PLC | Use Siemens smart series PLC control system. |
Display screen | A 7-inch color touch screen is used, and the communication rate is ≥ 19.2Kbps. |
Display status | Temperature, pressure, time, cycle mode, process stage and alarm information, etc., and provide actual interface photos. |
Storage function | It can store and record the sterilization data of 500 times. |
Biological indicator incubator | A microcomputer-controlled biological indicator dedicated constant temperature incubator is used for the constant temperature cultivation process of the biological indicator for sterilization effect monitoring. The temperature control accuracy is ≤ ± 0.3 ℃ within the full range; the temperature can be set by itself . |
Pressure Sensor | The built-in pressure sensor adopts imported sensors to automatically detect the pressure in the cavity to ensure that the accuracy of the pressure in the cavity is controlled within the effective range. |
Temperature Sensor | The built-in temperature sensor automatically detects the temperature in the cavity to ensure that the temperature in the cavity is kept within the precise range of 50 ℃ ± 5 ℃. |
Program system | There are two programs to strengthen circulation and rapid circulation. |
Network Connection | There is a network connection port. |
Vacuum system | The vacuum pumps of well-known domestic manufacturers are used, which are simple and convenient, with a fast vacuum rate and a long service life. |
Evacuation Control Valve | Adopt high vacuum baffle solenoid valve to control the evacuation pipeline. |
Oil mist filter | The product has an exhaust oil mist filter system. |
Air filter | The filtration accuracy is less than or equal to 0.22μm. |
Plasma power supply | Adopt transistor control power supply, power ≤800W, with the advantages of stable power output and high frequency accuracy. |
Hydrogen peroxide filling method | Cartridge filling method. |
Sterilization effect | The silicone hose with an inner diameter of 1mm and a length of 4m can achieve the sterilization effect. |
Heating System | Adopt explosion-proof flame retardant heating system. |
Various protection functions | With over-voltage and over-temperature protection functions. |
