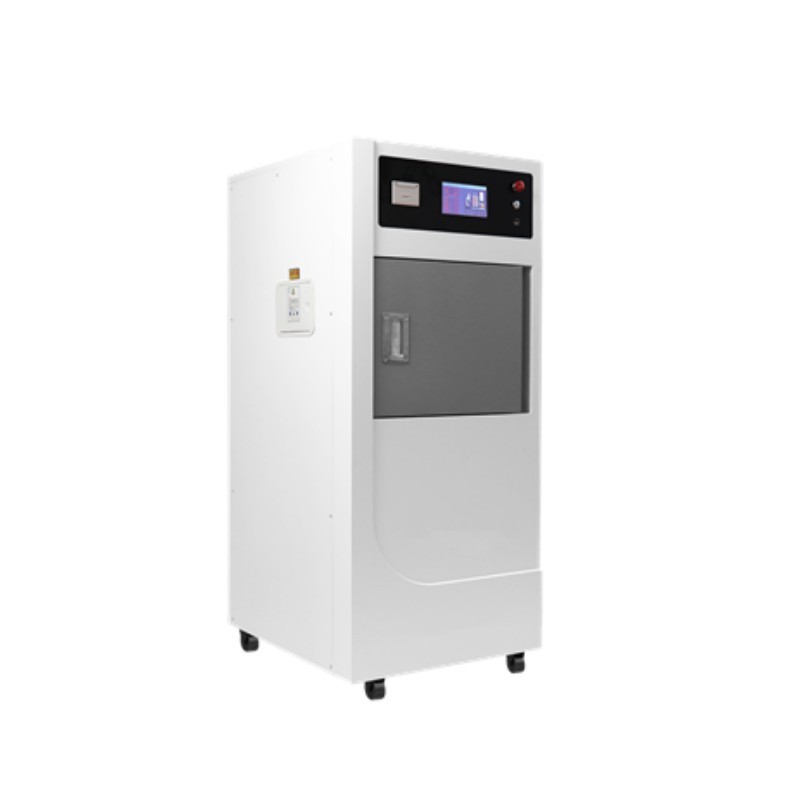

HO-D60/HO-DS60 H2O2 Low Temperature Plasma Sterilizer

Product   name

Low   temperature plasma hydrogen peroxide sterilizer

Product   model

HO-D60

Product   form

Manual door   vertical

Heating method

Electric   heating

Power

2.6KW

Power

AC220V,   50Hz

Dimensions

(Length ×   Width × Height): 750 × 630 × 1510mm

Liner size

(Length × Width × Height): 610 × 350 × 320mm

Weight

185Kg

Effective   Volume

60L

Temperature   display

LCD touch   screen

Temperature   during sterilization

50 ℃ ± 5 ℃

Select   sterilizing agent

Hydrogen   peroxide (H202)

Hydrogen   peroxide sterilization concentration

60% ± 2

Sterilization   time

35-50min

Vacuum   speed

pumped to   50pa in 5 minutes

Operation   height

≤140cm

Material of   Sterilization Chamber

The cavity structure is rectangular, which improves the   space utilization rate; the cavity material is 5052 high-quality aluminum   material, and the cavity thickness is ≥ 8mm.

Outer box   material

ABS plastic

Electrode   mesh material

aluminum   alloy material 5052, sheet metal forming, thickness ≥ 2mm

Loading   method

The upper and lower two layers of aluminum alloy   punching plates are loaded with sterilized items, with large loading capacity   and high space utilization rate.

Sealing   door material

5052 aluminum   alloy material, thickness ≥15mm

Door   opening method

Manual right sliding door

Cavity   temperature heating power

Preheating   heating time ≤30min

Main body   insulation

≥20mm sound-absorbing cotton.

Full automatic   control system

LCD circuit touch screen display PLC circuit design,   safe and reliable.

Printer

A micro-printer is used to print out the data every   minute during the entire sterilization process, which can be permanently   saved.

PLC

Use Siemens smart series PLC control system.

Display   screen

A 7-inch   color touch screen is used, and the communication rate is ≥ 19.2Kbps.

Display   status

Temperature, pressure, time, cycle mode, process stage   and alarm information, etc.

U disk   storage function

Disk capacity ≥ 8G, capable of storing and recording ≥   1 million original sterilization data.

Pressure   Sensor

The built-in pressure sensor uses imported sensors.

Temperature   Sensor

The   built-in temperature sensor automatically detects the temperature in the   cavity to ensure that the temperature in the cavity is kept within the   precise range of 50 ℃ ± 5 ℃.

Program   system

There are two programs to strengthen circulation and   rapid circulation.

Vacuum   system

Use domestic Zhiping brand vacuum pump.

Evacuation   Control Valve

Adopt high vacuum baffle solenoid valve to control the   evacuation pipeline.

Oil mist   filter

The product   has an exhaust oil mist filter system.

Air filter

The filtration accuracy is less than or equal to 0.2μm.

Plasma   power supply

Transistor controlled power supply, power ≤900W.

Hydrogen   peroxide filling method

Self-priming injection type/ Cartridge filling method

Sterilization   effect

A silicone   hose with an inner diameter of 1mm and a length of 4 meters can achieve the sterilization   effect.

Heating   System

Adopt explosion-proof flame retardant heating system.

Various   protection functions

With over-voltage and over-temperature protection   functions.
