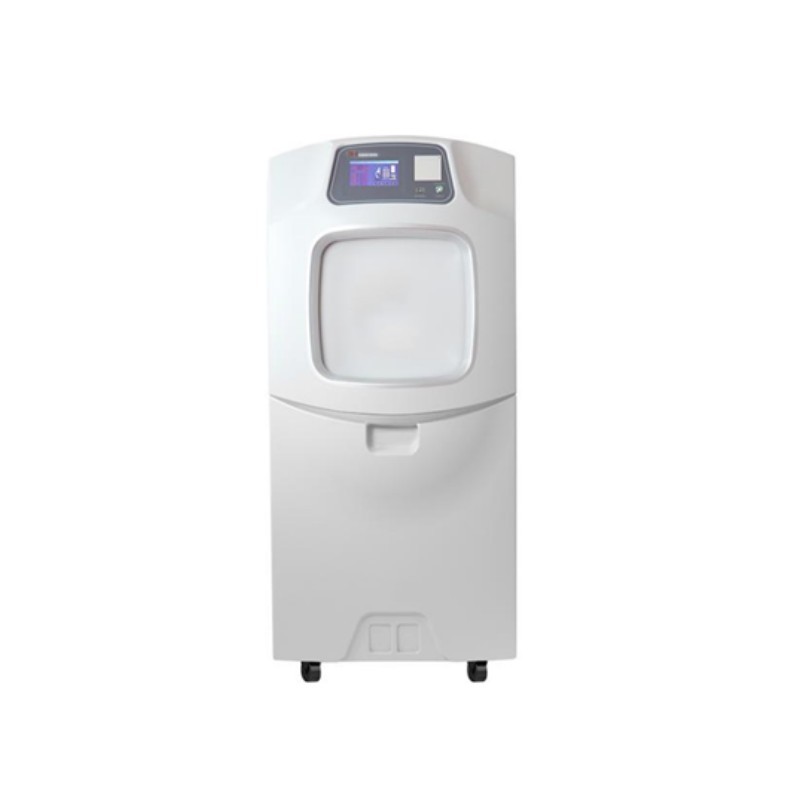

HO-D100, D130,D220 H2O2 H2O2 Low Temperature Plasma Sterilizer

Technical Specifications

PARAMETER

SPECIFICATION

Product   name

Low temperature hydrogen peroxide plasma sterilizer

Product   form

Automatic door vertical

Heating   method

Electric   heating

Power

Volume

Chamber size

HO-D100:   3.4KVA / 100L (Liner size: 700 × 430 × 360mm)

HO-D130:   3.5KVA / 135L (Liner size: 750 × 450 × 400mm)

HO-D220:   4.3KVA / 190L (Liner size: 820 × 510× 460mm)

Power

AC220V,   50Hz

Installation   environment

10-50

Sterilization   temperature

50±5

Select   sterilizing agent

58%-60% concentration of hydrogen peroxide (H202)

Sterilization   time

35-50   minutes

Vacuum   speed

pumped to 50pa in 5 minutes

Temperature   display

LCD touch   screen

Maximum   anti-stress value

10pa

Operation   height

≤160cm.

Material of   Sterilization Chamber

The cavity structure is rectangular.

Outer box   material

ABS plastic



Electrode   mesh material

aluminum   alloy material 5052, sheet metal forming, thickness ≥ 2mm.

Seal door   material

Use high-quality 5052 aluminum material, thickness   ≥15mm.

Loading method

Two layers of upper and lower aluminum alloy punching   plates are loaded with sterilized items.

Door   opening method

Adopt jack-driven electric lift door.

Door   anti-pinch function

has the function of door barrier switch.

Cavity   temperature heating power

Preheating heating time ≤30min.

Main   insulation

≥20mm   rubber and plastic sponge.

Full   automatic control system

LCD circuit touch screen display PLC circuit design,   safe and reliable.

Printer

A micro-printer is used to print out the data every minute   during the entire sterilization process, which can be permanently saved.

PLC

Use Siemens   smart series PLC control system.

Display   screen

A 7-inch color touch screen is used, and the communication   rate is ≥ 9600bps.

Display   status

Temperature, pressure, time, cycle mode, process stage   and alarm information, etc.

Storage   function

Able to store and record 500 sterilization data

Biological   indicator incubator

A microcomputer-controlled biological indicator   dedicated constant temperature incubator with a temperature control accuracy   of ≤ ± 0.3 ° C within the full range.

Pressure   Sensor

The built-in pressure sensor uses imported sensors.

Temperature   Sensor

Built-in temperature sensor automatically detects the   temperature in the cavity.

Program   system

There are   two programs to strengthen circulation and rapid circulation.

Vacuum   system

The vacuum pumps of well-known domestic manufacturers   are used.

Evacuation   Control Valve

Adopt high vacuum baffle solenoid valve to control the evacuation   pipeline.

Oil mist   filter

The product has an exhaust oil mist filter system.

Air filter

The   filtration accuracy is less than or equal to 0.22μm.

Plasma   power supply

Transistor controlled power supply, power ≤800W.

Hydrogen   peroxide filling method

Self-priming injection type.

Sterilization   effect

A silicone hose with an inner diameter of 1mm and a   length of 4 meters can achieve the sterilization effect.

Heating   System

Adopt explosion-proof flame retardant heating system.

Various protection   functions

With over-voltage and over-temperature protection   functions.
