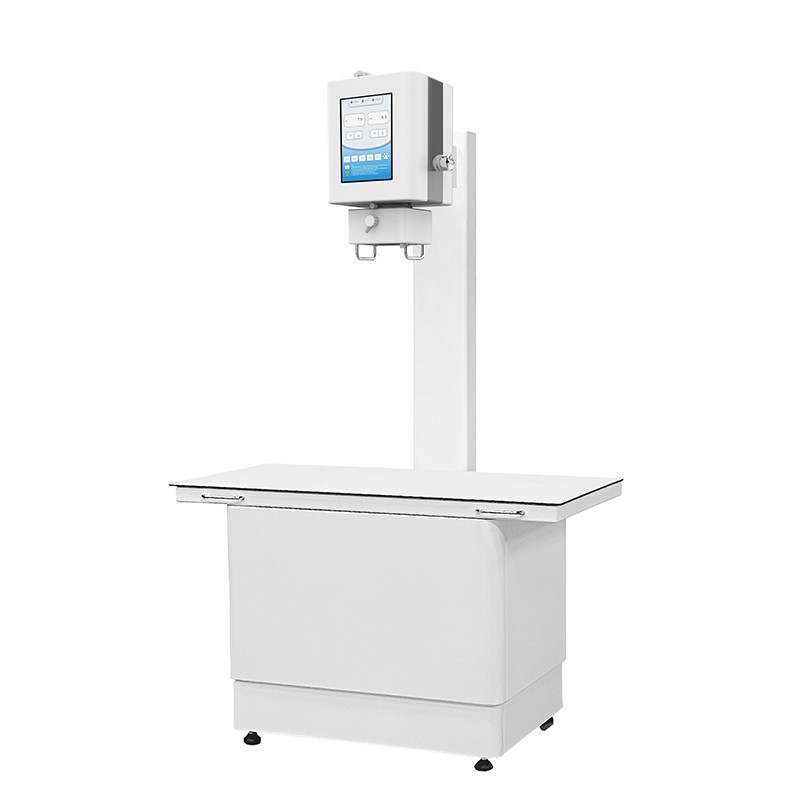

Features
1. Applicable to multiple scenarios, cost-effective choice.
2. Removable, integrated integrated X-ray head, suitable for various use scenarios such as hospital and field.
3. Three exposure modes: remote control, handle control and touch screen control, to meet the needs of different scenes.
4. 17*17 inch amorphous silicon flat panel detector, clear imaging and clear layers.
5. AED automatic exposure technology to ensure image quality, reduce scrap rate, and reduce repeated shooting.
6. Bizcon image acquisition software with independent intellectual property rights, simple and intuitive workflow design, and practical measurement tools for medical specialists.
Technical Specifications
PARAMETER | SPECIFICATION | |
Fixed SID distance adjusted to 1000 mm | ||
Table Top Size | 1210 mm x 610 mm | |
Whole Machine Dimension | 1200 mm x 860 mm x 2000 mm | |
PARAMETER | a-Si TFT Detector | |
Pixel Size | 139μm | |
Pixel Matrix | 2912 x 2912 | |
AD Conversion | 16 bits | |
Spatial Resolution | 3.6 lp/mm | |
Imaging Area | 405mm × 405mm (17” x 17”) | |
Dimension | 460mm x 460mm x 15mm | |
Weight | 4Kg | |
PARAMETER | Portable X-ray Machine | |
High Frequency | 40 KHz | |
Single Phase | 220VAC+-10%, 5 KW | |
Output Power | 100mA and 120Kvp | |
X-ray tube H.U. continual monitoring for X-ray tube protection | ||
Kvp Radiographic range | from 40 to 120 Kvp | |
mA Radiographic range | from 10 to 100 mA | |
Anatomical program APR (Kvp, mAs, AEC, focal spot, etc) | ||
Light and sound indication for X-ray exposure | ||
Hand-Switch for preparation and exposure control. | ||
Manual collimator with 6 pair of leafs. | ||
Accessory rails (cones, filters, etc.) | ||
Field LED lamp of 160 LUX | ||
Light indicator for alignment with Bucky. | ||
Retractable measuring tape. | ||
Light indicator for alignment with Bucky. | ||
Retractable measuring tape | ||
PARAMETER | Workstation and S/W (B-Console vet) | |
Preview & Post processing Time : 3 sec | ||
KV, mA, mAS, Thumb nail View, patient Info and so on | ||
Main Screen Console: Veterinary patient information | ||
Automatic Pre & Post image enhancement. | ||
Expands image processing for optimized viewing | ||
Enhances variable density and form shading | ||
Variety Measurements | ||
Application measurements & teaching tools (such as VHS, HD, TPLO, TTA etc) | ||
One key to capture images into Clipboard | ||
DICOM sending and Report writing and Printing | ||
Easy Calibration & User setting | ||
