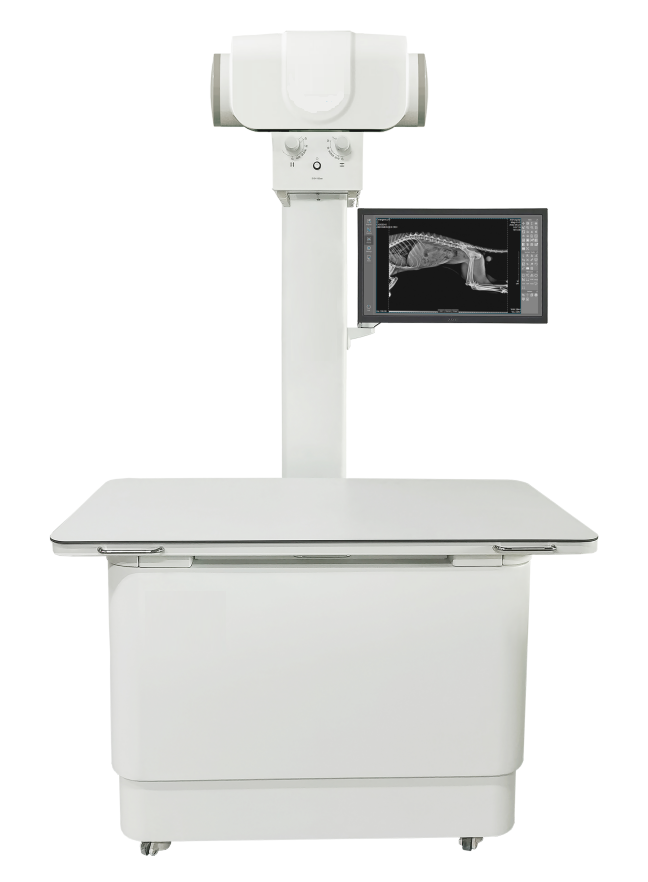

DR-Y4 Veterinary Digital Radiography System

Features

1.The compact design saves space, and the pet-specific integrated bed surface has less absorption of X-rays, waterproof, scratch-resistant, and easier to clean and disinfect;

2.Four-way movement of the bed surface by foot switch, more convenient positioning during the filming process;

3.Touch-screen operation panel, built-in rich APP function of filming body position;

4.The size and height of the frame are more in line with clinical operation requirements and improve operator comfort;

5.Built-in power storage function, no need to modify the power grid in the hospital;

6.High power, small focus, provide you with high-quality images.



Technical Specifications

PARAMETER

Fixed SID’s 4 Way Floating Radiography Table

Electromagnetic   brakes for all movements

Fixed SID   distance adjusted to 1000 mm

Table Top   Longitudinal Travel

+/- 150 mm

Table Top   Transverse Travel

+50 /- 100   mm

Table Top Size

1210 mm x   610 mm

Whole Machine Dimension

1200 mm x 860   mm x 2000 mm

PARAMETER

a-Si TFT Detector


Pixel Size

139μm


Pixel Matrix

2912 x 2912

AD Conversion

16 bits

Spatial   Resolution

3.6 lp/mm

Imaging Area

405mm × 405mm   (17” x 17”)

Dimension

460mm x 460mm x   15mm

Weight

4Kg

PARAMETER

X-ray Generator


High   Frequency

300 KHz


Single Phase

220/240 VAC,   32 KW

Output Power

400mA and   125Kvp

X-ray tube   H.U. continual monitoring for X-ray tube protection

Kvp   Radiographic range

from 40 to   120 Kvp

mA Radiographic   range

from 10 to   400 mA

Anatomical   program APR (Kvp, mAs, AEC, focal spot, etc)

Light and   sound indication for X-ray exposure

Dual Switch   (Foot and Hand-Switch) for preparation and exposure control.

PARAMETER

X-Ray Tube


Canon   (Toshiba) E7239X


Maximum   Tension

125 Kvp

Focus Sizes

Small focus   1.0 mm, Large focus 2.0 mm

Anode Target Angle

16 º

Anode Rotation   3,000

PARAMETER

Manual Collimator


Manual   collimator with 6 pair of leafs.


Accessory   rails (cones, filters, etc.)

Field LED   lamp of 160 LUX

Light   indicator for alignment with Bucky.

Retractable   measuring tape

PARAMETER

Workstation and S/W

(B-Console vet)


Preview   &Post processing Time : 3 sec


KV, mA, mAS,   Thumb nail View, patient Info and so on

Main Screen   Console: Veterinary patient information

Automatic   Pre & Post image enhancement.

Expands   image processing for optimized viewing

Enhances   variable density and form shading

Variety   Measurements

Application   measurements & teaching tools (such as VHS, HD, TPLO, TTA etc)

KV and mAs   sync-controlled through thickness

One key to   capture images into Clipboard

DICOM   sending and Report writing and Printing

Easy   Calibration & User setting
