Features
-It can be widely used in the examination and diagnosis of animal limbs, and is suitable for medical institutions such as hospitals, clinics, physical examination centers, ambulances, etc;
-Simple structure, small size, light weight, no environmental restrictions, no need to build a lead shielded darkroom;
-Mobile rack is flexible and convenient, which can meet the requirements of different workstations, and can be used as a bedside shooting in a hospital ward;
-Three exposure control methods: remote control, hand switch, touch screen;
-Fault self-protection, self-diagnosis, high-precision control of tube voltage and tube current;
-It is a DR digital X-ray photography system.
Technical Specifications
PARAMETER | SPECIFICATION |
Power | 5KW |
Input power type | 220~240VAC |
Dimension | 265mm(L) x 240mm(W) x 210mm(H) |
Weight | 15KG |
Communication interface | RS-232 |
kV range | 40kV-125kV, 1kV step |
mA range | 10-100mA |
ms range | 1 -4000ms |
mAs range | 0.1-200mAs |
Maximum power | 5.3kW |
X-ray focal point value | Small focus: 0.6; Big focus: 1.8 |
Maximum tube current of small filament | 20mA |
Maximum tube current of large filament | 100mA |
X-ray tube inherent filtration | 0.6mmAl |
Combination head filter | 1.5mmAl |
Standard Configure

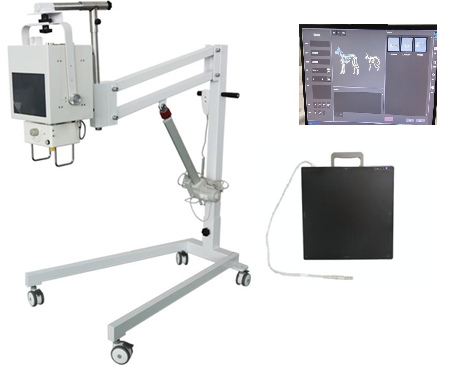

Mobile rack, flat panel detector, computer
Wired Flat panel detector
Detector category: amorphous silicon
Scintillator CsI
Image size 35×43 cm
Pixel matrix: 2560×3072
Pixel pitch 140 μm
A/D conversion 16 Bit
Spatial resolution 3.6
LP/mm drawing time: 2S
Image workstation
Screen size 14.1/15.6
Processor Core Quad
Core
Memory 4G
Hard disk 500G
Graphics card
Trolley
Net weight 70KG
Maximum height: 200cm
Width 66cm
Adjust 50~200cm
