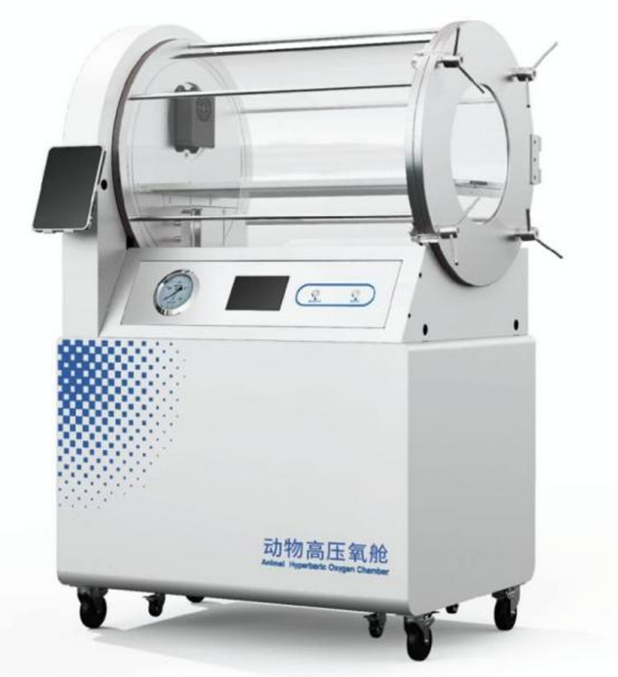

H890-V Animal Hyperbaric Oxygen Chamber (The Fifth Generation)

Features

1.      Intelligent computer control system, high sensitivity touch screen operation,one key to complete the whole process of animal hyperbaric chamber treatment.

2.      The oxygen chamber body is made of high quality,high thickness,high pressure resistant high quality 304 stainless steel polishing treatment,beautiful and easy to clean.

3.      Adopting advanced zirconia oxygen concentration sensor and pressure sensor, the oxygen concentration is accurate and reliable.Wide detection range,fast response time immediate response to the step change in oxygen percentage concentration within seconds

4.      The hatch opens with absolute protection device manual screw, which can effectively protect the safety of the operator.

5.      Oxygen chamber and base can be separated for transportation operation, which is convenient for installation

6.      Gas inlet and outlet have hair filtering device,emergency can manually release pressure

7.      For small animals to do hyperbaric oxygen therapy: 1.0-2.0 ATA pressure

8.      20.9%-95% oxygen concentration.Oxygen concentration and pressure need any value controllable and stable

9.      The hatch is stable and firm, and the electrical comes with a stabilization system

10.  Low noise, easier installation,more convenient maintenance and better appearance

11.  comes with thermostat control, can be heated, can be cooled, the general thermostat parameters for thermostat 25°C±2°C.High efficiency of constant temperature control.

12.  Comes with data upload cloud function.

13.  Professional ultraviolet disinfection system

14.  Compressed nebulized particle drug delivery system

15.  CO2 Euthanasia Humane Abandonment Treatment System

16.  The oxygen machine is equipped with a separate link three-way valve(directly connected to the anesthesia machine or ICU monitoring room)

17.  Optional wireless Bluetooth ECG wear monitoring function,and display waveform touch panel interface system function

18.  Export version of the voltage 110V 60HZ functional models

19.  Recharge paid lock function: recharge system: the phone has an independent WeChat

20.  Recharge applet + independent background management mechanism for operation

recharge the countdown of the number of times to use the unit (the first use of 10 times

free); month below the minimum consumption standards,will automatically eliminate the

number of times (i.e. clear).



Technical Specifications

PARAMETER

SPECIFICATION

Size

1200*1600*810mmLXWXH

Dimension for Inside Chamber

1000mm*Φ650mm

Total weight

260kg

Operation screen

10"HD smart touch screen net worked operating   system

Work stress

1.50ATA-2.0ATA

concentration control

21%-95% (up to 60% oxygen in 15 minutes up to 90%   oxygen in 35 minutes)

Temperature display range

0-50°C

Humidity display range

0-100%RH

Noise

45Db

Oxygen sensor

High precision zirconia

Oxygen flow rate

Medical Oxygen Concentrator 20L/min

CO2 concentration display range

0-5%

Constant temperature - heating

Constant temperature 25°C deviation+2°C When the room   temperature is 10°C.The temperature inside the chamber can be reached and   maintained within 10 minutes at 28°C

Constant temperature- cooling

Chamber temperature of 24°C can be reached and   maintained within20 minutes at a room temperature of 30°C when a medium-sized   animal is placed. Refrigeration if condensation is generated there is a   convenient drainage line

Euthanasia system

With CO2 euthanasia system (for middle-aged and   elderly pets to give up treatment) more humane

Nebulized drug delivery

Compressed Nebulized Particle Delivery

Ultraviolet disinfectio

Professional UV cycle disinfection and   sterilization

Operation Mode

Manual/Automatic

Security Protection

Software protection,hardware protection,pressure   relief valve

Exhaust gas filtration

Air inlet and outlet are equipped with filtering   devices to filter hair, etc.

Power supply

220V/50Hz

Total power

1500W

Treatment time

Settable, 0-9999 hours and times

Material

The cabin is made of acrylic material, and the base   is made of high-quality 304 stainless steel material

Cardiac extension

The animal wears life monitoring equipment such as   ECG and temperature, and can send and receive Bluetooth signals.With flat   panel display
