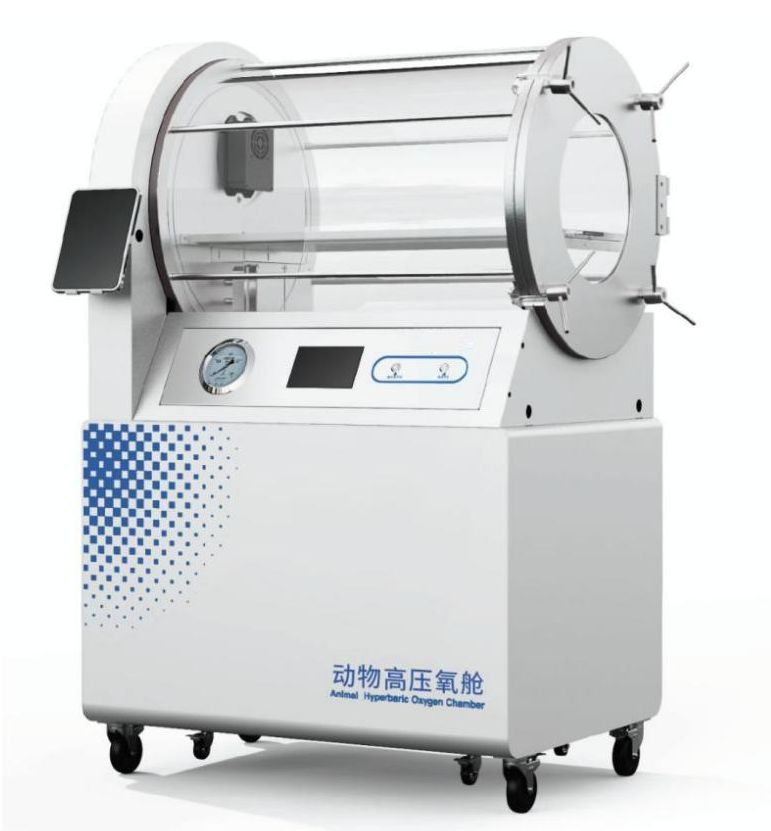

H880-IV Animal Hyperbaric Oxygen Chamber (The Fourth Generation)

1.      Intelligent computer control system, high-sensitivity touch screen operation, one-click to complete the whole process of animal hyperbaric oxygen chamber treatment.

2.      The oxygen chamber body is polished with high-quality, high-thickness, high-pressure high- quality 304 stainless steel, which is beautiful and easy to clean.

3.      Using advanced zirconia oxygen concentration sensor and pressure sensor, the oxygen concentration is accurate and reliable. The detection range is wide and the response speed is fast, responding immediately to step changes in percent oxygen concentration within seconds.

4.      The door is opened with an absolute protection device manual screw, which can effectively protect the safety of the operator.

5.      The oxygen chamber and the base can be transported separately, which is convenient for installation.

6.      There is a hair filter device at the gas inlet and outlet, and the pressure can be manually released in an emergency

7.      Hyperbaric oxygen therapy for small animals: 1.0-2.0ATA pressure

8.      20.9%-95% oxygen concentration. Oxygen concentration and pressure need to be controllable and stable with arbitrary values.

9.      The door is stable and firm, and the electrical self-contained stabilization system

10.  Low noise, more convenient installation, more convenient maintenance and better appearance.

11.  It has its own constant temperature control, which can be heated and cooled. The general constant temperature parameter is constant temperature of 25℃±2℃. High efficiency of constant temperature control.

12.  Self-contained data upload cloud function.

13.  The oxygen generator is equipped with a separate link three-way valve (directly connected to the anesthesia machine or ICU monitoring room ) .

14.  Comes with wireless Bluetooth ECG wearable monitoring function, and display waveform touch panel interface system function.

15.  The functional model of the export version with a voltage of 110V 60HZ

16.  Recharge payment lock function: recharge system : the mobile phone has an independent WeChat recharge applet + independent background management mechanism to operate ; the countdown of the number of recharge usage units (10 times free for the first use); if the month is lower than the minimum consumption standard, the The number of automatic eliminations (ie, clearing).

Technical Specifications
