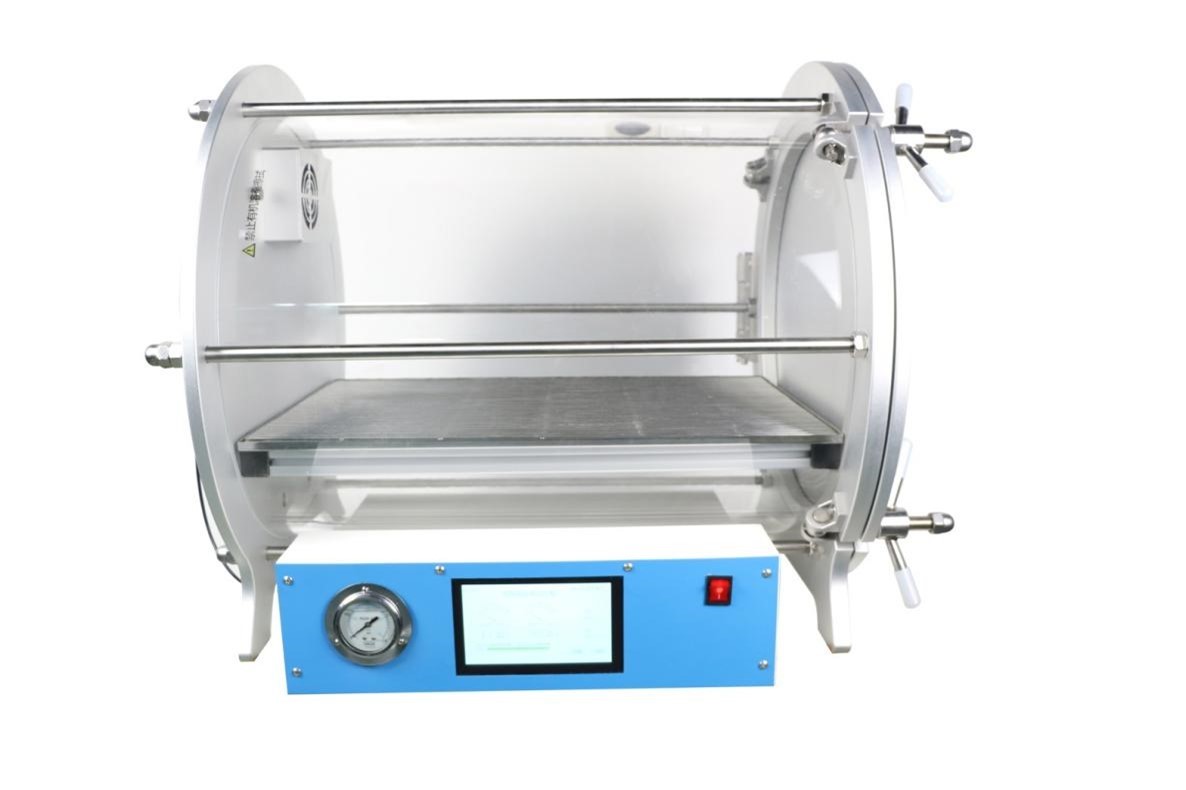

H820-III Animal Hyperbaric Oxygen Chamber (The Third Generation)

Features

1.      Intelligent computer control system, high-sensitivity touch screen operation, one-click to complete

2.      the whole process of animal hyperbaric oxygen chamber treatment.

3.      The oxygen chamber body is polished with high-quality, high-thickness, high-pressure high-quality 304 stainless steel, which is beautiful and easy to clean.

4.      Using zirconia oxygen concentration sensor and pressure sensor, the oxygen concentration is accurate and reliable. The detection range is wide and the response speed is fast, responding immediately to step changes in percent oxygen concentration within seconds.

5.      The door is opened with an absolute protection device manual screw, which can effectively protect the safety of the operator.

6.      The oxygen chamber and the base can be transported separately, which is convenient for installation.

7.      There is a hair filter device at the gas inlet and outlet, and the pressure can be manually released in an emergency

Technical Specifications

PARAMETER

SPECIFICATION

Model

H820-III

Dimension

782 X 670 X 680 mm (length X height X thickness)

Chamber size

Length 682mm * diameterΦ528mm _

Total weight

150kg

Operation screen

10 inch high-definition smart touch screen

Work pressure

1.5 ATA

Oxygen concentration control

21%- 95% (Oxygen up to 60% in 10 minutes)

Temperature range

0- 50 °C

Humidity range

0-100 % RH

CO2 concentration range

0-5%

oxygen sensor

High precision zirconia

Oxygen flow

Medical oxygen generator 20L/min

Noise

50 Db

Operating mode

Manual / Auto

Safety protection

Software protection, hardware protection, pressure   relief valve

Exhaust filtration

Air inlet and outlet install filter device, filter   hair, etc.

Power supply

220V/50Hz

Power

1000W

Healing period

Can be set at will, 0-9999 hours and times

Material

The chamber is made of acrylic, and the base is   made of high- quality 304 stainless steel

Package dimension

0.75 cubic meters

Package weight

112 kg
