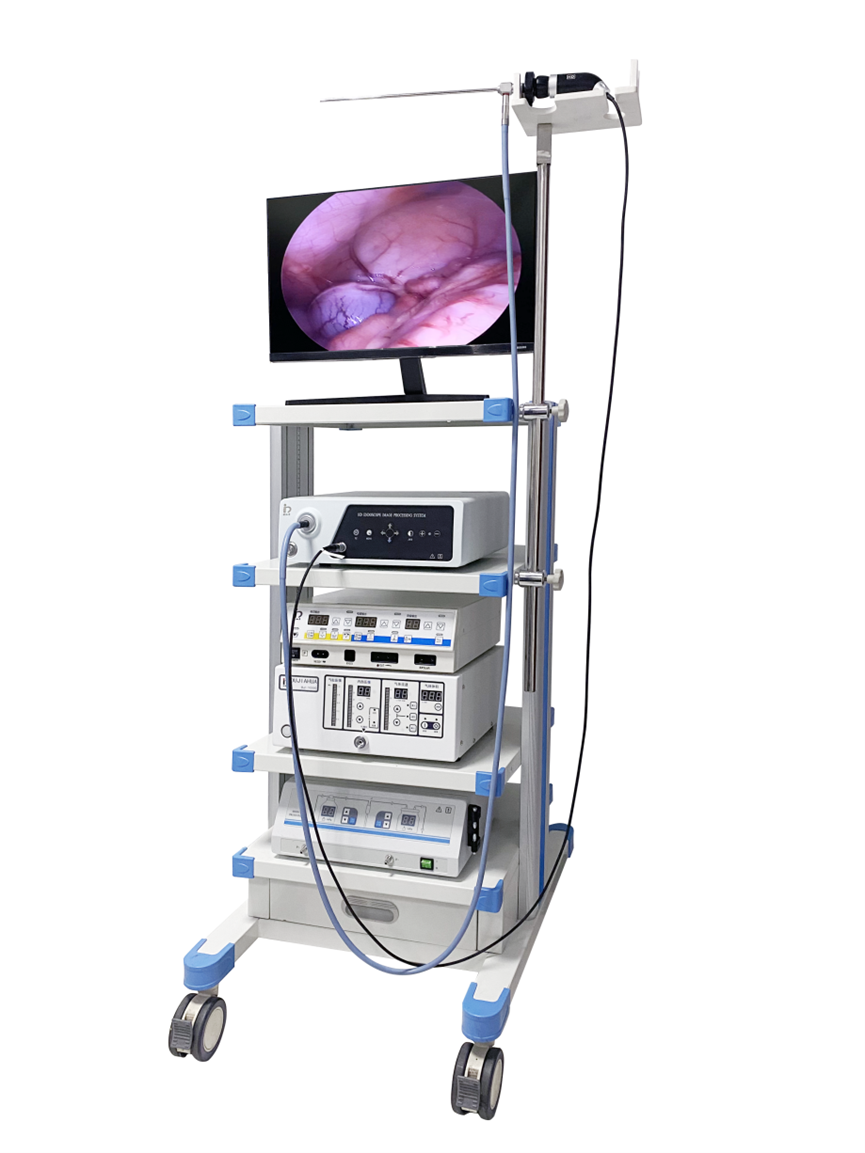

REC-2000 VET Trolley Urological Endoscope

Part 1- Video Processor and Light Cold Source 2 in 1 Machine (Full HD 1080P)

PARAMETER

SPECIFICATION

Lamp

LED light (100W white)

Power

100-240V; 50-60HZ

Illuminance

≥3,000,000 lux

Color temperature

≥5700K

Video signal output

CVBS ,HD-SDI , VGA , DVI-D,HDMI

Brightness adjustment

0-100 grade

Withe balance

One-click white balance

Main Function

Support one -click freeze single image

With 5 Inch color LCD high sensitive touch   screencontral board


 Part 2- Electrosurgical Unit

PARAMETER

SPECIFICATION

Power supply

110/220V 50/60HZ

Power capacity

1100VA

Classify

Class I Type BF

Working mode

Intermittent loading, working continuously

Fuse

BGXP5×20 5A 3pcs

Highest frequency

400W 500Ω

Packing

Handle with care, upward, keep dry etc.

Machine power dissipation

≤1000VA (CUT 400W, BIOPOLAR 70W output)

Barometric pressure

500hPa1060hPa

Temperature

540

Relative humidity

≤80

Barometric pressure

86.0106.0kPa

Working frequency

360512kHz


 Part 3- CO2 Pneumoperitoneum Insufflator Machine

PARAMETER

SPECIFICATION

Power supply voltage

AC220V

Power frequency

50Hz

Input power

40VA

Fuse

flal250v 1A

Control range of gas injection pressure

0.67kpa ~ 3.30kpa (1mmhg)

Control accuracy of gas injection pressure

± 0.13kpa (1mmhg)

Flow rate range of injected gas

1L / min - 30L / min respectively

Allowable deviation of injected gas flow rate

±20%


 Part 4- Souice Pump

PARAMETER

SPECIFICATION

Voltage

AC220V 50HZ

Rated Pwr.

50VA

Range of the pos-pressure

1050kPa

Range of the neg-pressure

-50-10 kPa

Safe classification

Type I Model B

Run mode

Inter loading/Cont. Duty

Noise

≤50dB

Allowable deviation of injected gas flow rate

±20%


 Part 5- Irrigation Pump

PARAMETER

SPECIFICATION

Voltage

240v,50Hz/60Hz

Rated Pwr.

100VA

Range of the Press.

15400mmHg (253.3kPa)

Range of flw.

0.11.0 L/min

Safe classification

Type I Model B

Run mode

Inter loading/Cont. Duty

Noise

≤50dB

Host size

360*315*160mm/ 9KGS


 Part 6- LCD Monitor

PARAMETER

SPECIFICATION

Display size

24”

Power Supply

External Power Supply 24V

Resolution

1920x1200

Display Ratio

16:10

Color

1.07B

Camoration Brightness

180±10 cd/

Max.Brightness

400 cd/

Package size

65*36.5*60cm (G.W.:16.0kgs)


 Part 7- Equipment Vehicles

PARAMETER

SPECIFICATION

Size

500 * 700 *1350mm

Package size

118.5*63.5*22cm (G.W.:28kgs)


 Part 8- Sterilization Equipment

PARAMETER

SPECIFICATION

Indoor volume

Φ400X625mm

Size

522X567X1020mm


Size

785X 575X1800mm

Storage Volume

5/6 layers

Voltage power supply

12V 50Hz 30W

Sterilization mode

Manual automatic

Main functions

It can display the date, time, week and cumulative   desinfection time, temperature and humidity, circulation wind drying, ulraviolet   ray, ozone disinfection, Biopsy forceps hook, and lighting LED lamp in open   cabinet.


 Rigid endoscope Part

Hysteroscope set

ITEM

NAME

SIZE

QTY/UNIT

A0012

Heysteroscope

Φ4X302mm 30°

1/pc

F1116.2

Outer sheath

30°,19.5FrX200mm

1/pc

F1117.2

OP-inner sheath

With channel for 4mm endoscope

1/pc

F1110.1

Biopsy forceps

5FrX 340mm,rigid

1/pc

F1113.1

scissors

5FrX 340mm,rigid

1/pc

F2107.2

Loop catching forceps

5FrX 340mm,rigid

1/pc

T1001

adaptor


1/pc

T1009.1

Luer-lock adaptor



A2145

Sealing cap


1/pc

A4010.1

Cleaning bar

Φ1X340mm

1/pc



 Cystoscope set

ITEM

NAME

SIZE

QTY/UNIT

A0022

Cystoscope

Φ2.9X302, 30°

1/pc

F1118

Outer sheath

16.5Fr, with channel

1/pc

F1110.1

Biopsy forceps

5FrX 340mm,rigid

1/pc

F1113.1

Scissors

5FrX 340mm,rigid

1/pc

F2107.2

Loop catching forceps

5FrX 340mm,rigid

1/pc

T1001

Adaptor


1/pc

T1009.1

Luer-lock adaptor


1/pc

A2145

Sealing cap


1/pc

A4010.1

Cleaning bar

Φ1X340mm

1/pc


 Resectoscope set

ITEM

NAME

SIZE

QTY/UNIT

A0011

Resectoscope

Φ4X302mm ,12°

1/pc

A3162

Working element

passive

1/pc

A3163.2

Inner sheath with obturator

22Fr

1/pc

A3165.2

Ourter sheath

25.5Fr

1/pc

A3111

Loop electrode

Loop

1/pc

A3114

Straight loop electrode

Straight loop

1/pc

A3122

Roller electrode

Roller

1/pc

T1001

Adaptor


1/pc

T1009.1

Luer-lock adaptor


1/pc

T4002

Evacuator

Ellik

1/pc

T1001.5

Evacuator adaptor


1/pc

M1001

High frequency cord


1/pc

 Laparoscopy

NAME

SIZE

QTY/UNIT


Light guiding line

Φ4×2500mm

1/pc


Insufflator needle

100-150mm

1/pc


Electric Ballpoint

Φ5×330mm

1/pc


Sealing cap

Φ5mm

10/pc


Curved dissectig forceps

Φ5×330mm

1/pc


Curved scissors forceps

Φ5×330mm

1/pc


Electrode hook

Φ5×330mm

1/pc


Torcars

Φ5mm

1/pc


Flap valve spiral trocar

Φ10mm

2/pc


Tissue biopsy forceps

Φ5×330mm

1/pc


Clip applicar

Φ5×330

1/pc


Titanium clip


1/box


Laparoscopy

Φ10mm/0°

1/pc


 Optional accessories

NAME

SIZE

QTY/UNIT


Atraumatic grasping forceps

Φ5×330mm

1/pc


Dissecting forceps 90°

Φ5×330mm

1/pc


Surgical forceps 90°

Φ5×330mm

1/pc


Needle -holding forceps

Φ5×330mm

1/pc


Knotter forceps

Φ5×330mm

1/pc


Intestine forceps

Φ5×330mm

1/pc


Salpinx grasping forceps

Φ5×330mm

1/pc


Trefoil expansion forceps

Φ5×330mm

1/pc


Spatula- electrode

Φ5×330mm

1/pc


Kont-pusher

Φ5×330mm

1/pc


Bipolar forceps

Φ5×330mm

1/pc


Bipolar scissors

Φ5×330mm

1/box


Flushing tube

Φ5×330mm

1/pc


Flusher


1/pc


adaptor

10mm-5mm

1/pc


Titanium clip

L

1/box


Titanium clip

M

1/box


Trocars

10mm

1/pc


Flap valve spiral trocar

10mm

1/pc


Sealing cap

10mm

10/pc


Clean brush

10X480mm

1/pc
