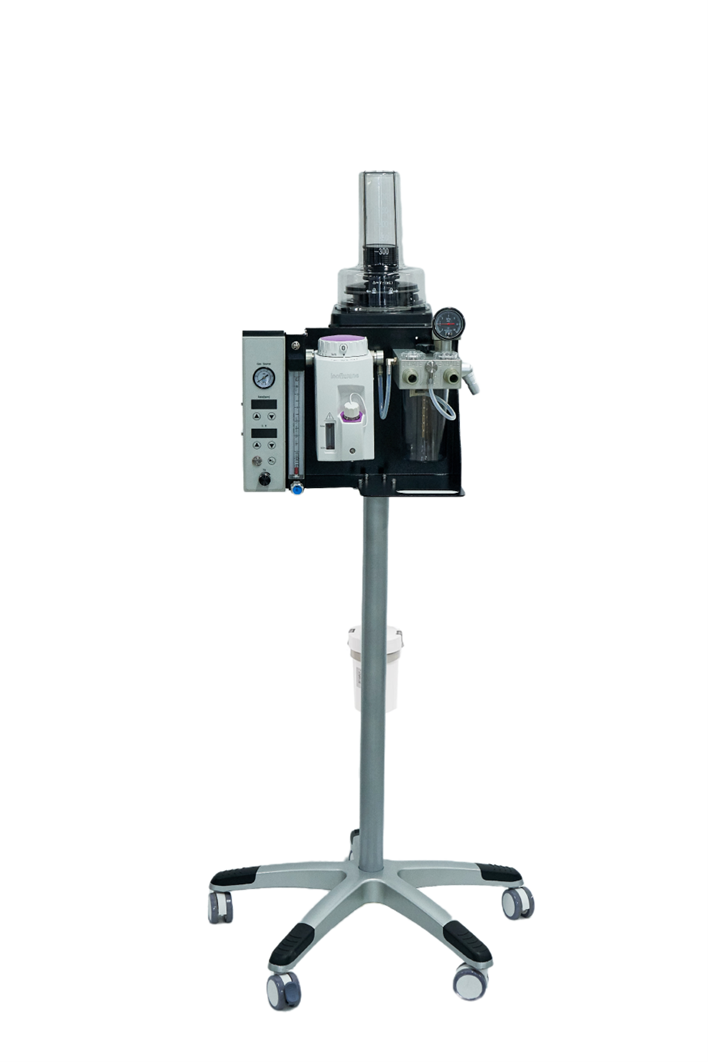

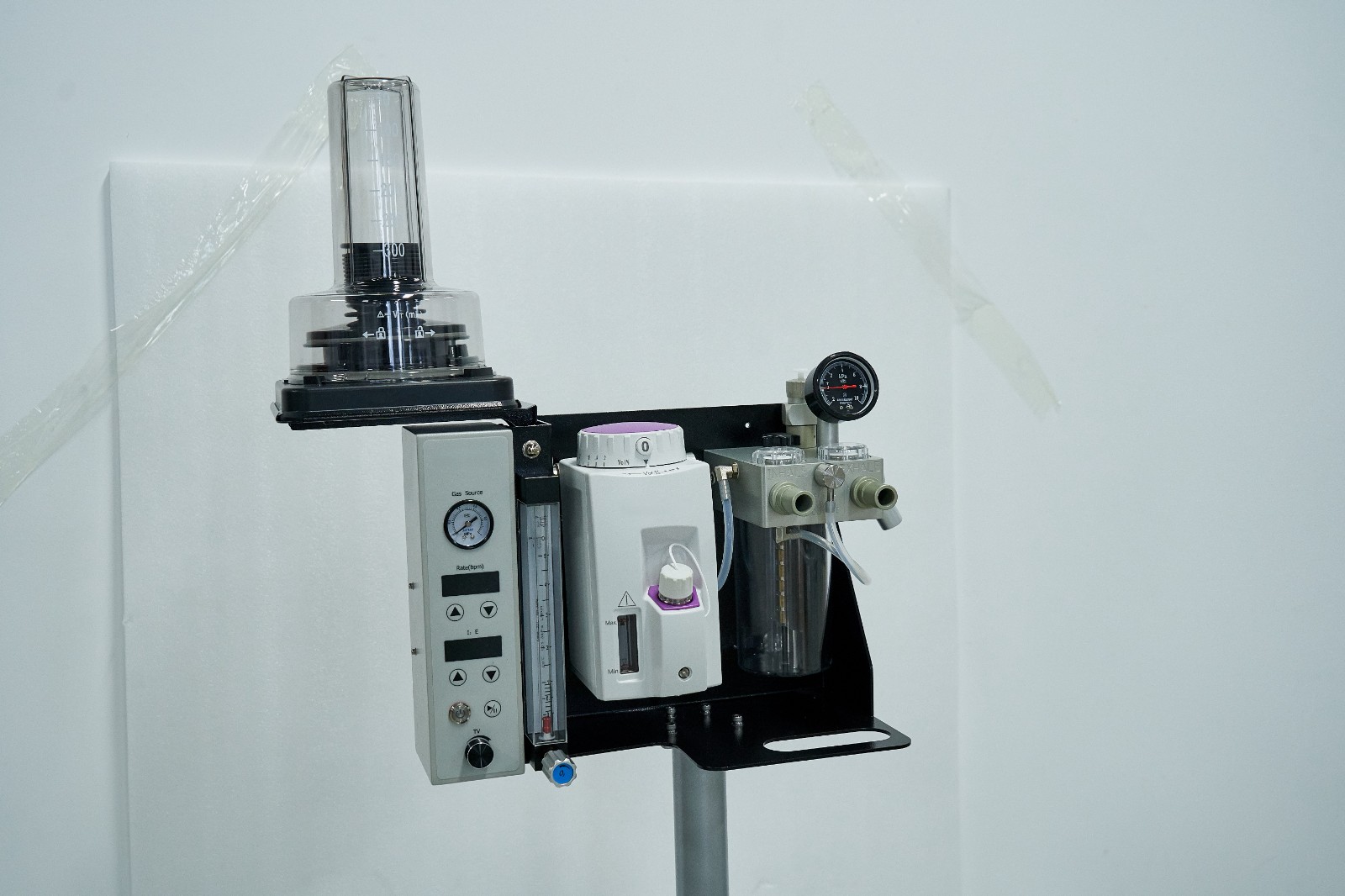

H1200-3 Anesthesia Machine (Trolley is Optional)

Application

0.5-100kg animal

Respiration mode

IPPV, Manuel

Ventilation mode

Open, closed, half-closed, half-open

Tidal volume

10-1500ml

Vaporizer

Choose one from Isoflurane, Sevoflurane, Halothane

Oxygen source pressure

0.25~0.65Mpa

Gas source pressure monitoring scope

0-1Mpa

Airway pressure scope

-30~60CMH2O

Flow Control

0-5L/min

Oxygen Flush

35L/min~75L/min

Pop off valve

Directs the waste anesthetic gas from the machine   to a scavenging system. In the completely open position, the pop-off valve   will release pressure at 2 cm H2O, while maintain a constant passive volume   in the breathing bags.

Inspiration impedance

≦0.6Kpa

Expiration impedance

≦0.6Kpa

Absorption tank capacity

700ml

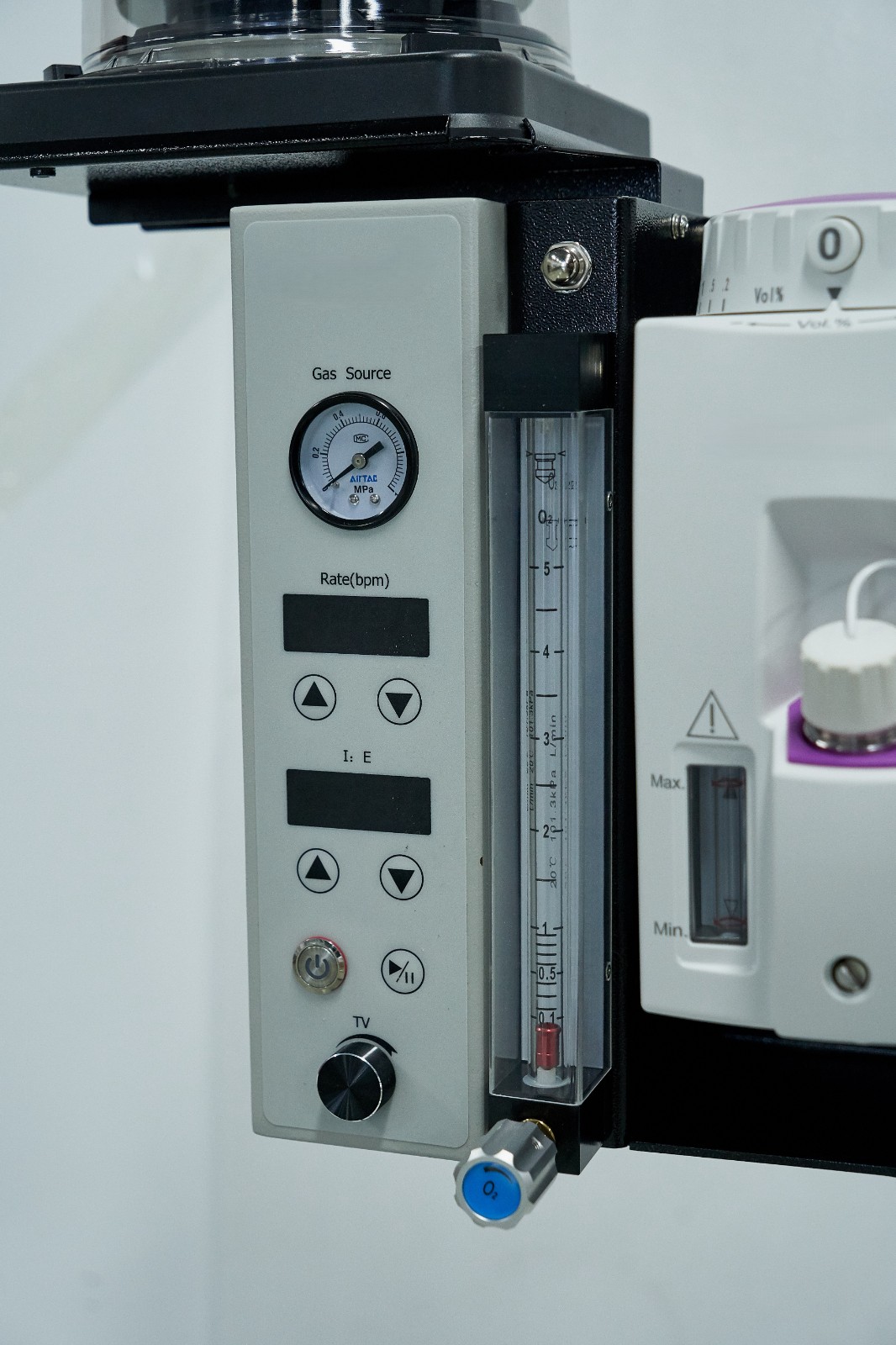

Monitoring

Tidal volume, Airway pressure, Gas source pressure   monitoring, breathing rate, I:E ratio,

I:E

Adjustable: 3:1,2:1,1.5:1,1:1,1:1.5,1:2,1:3

BPM

2~150bpm

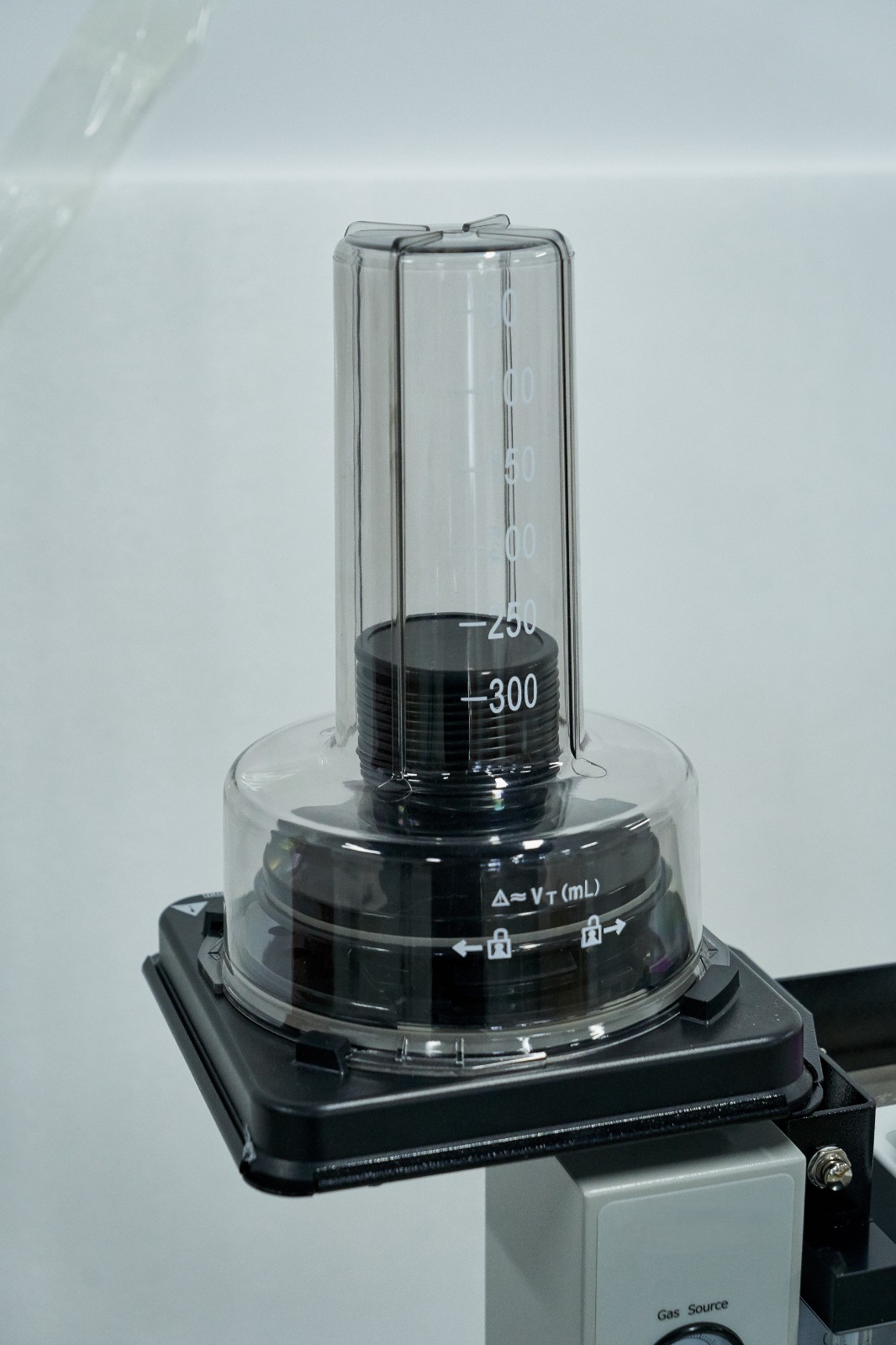

Bellow

Big animal t:50-1600ml, small animal:0-300ml
