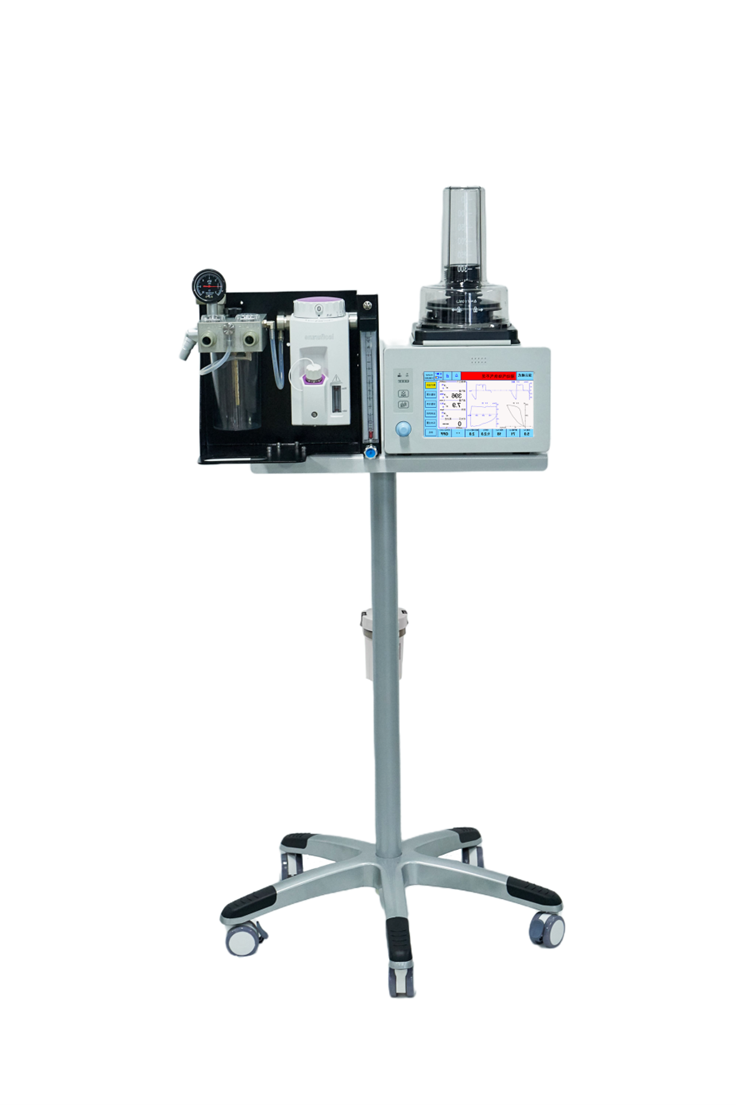

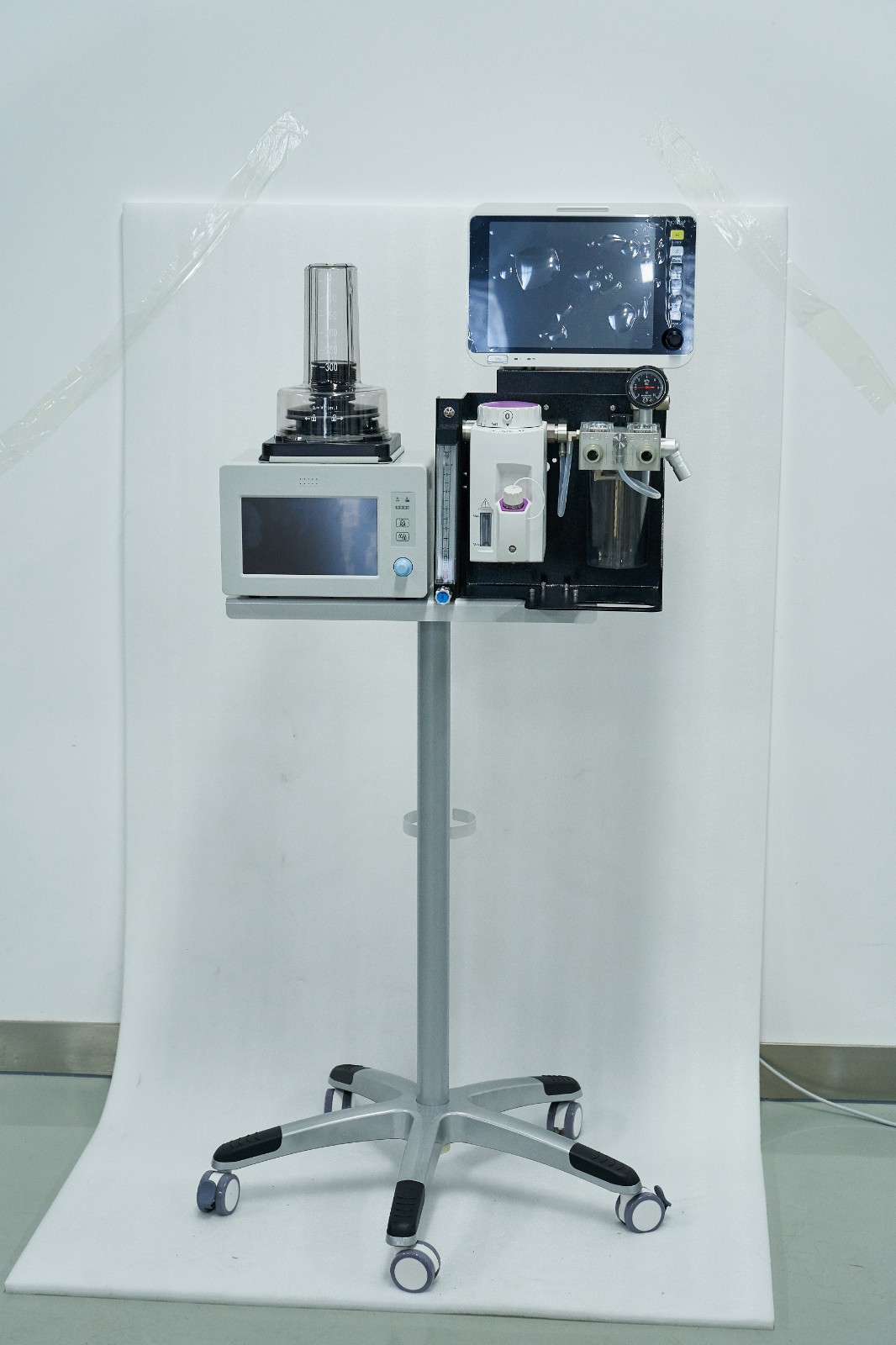

H1200-2 Anesthesia Machine (Trolley is Optional)

Introduction

HQS Vetcare delivery high precious veterinary anesthesia equipment with ventilation manage system. It is suitable for animal hospital, pet clinic and animal laboratory. This technical index of animal anesthesia machine can meet the needs of general anesthesia and medical research on mice, dogs, cats, rabbits, monkeys, pigs, sheep, and other animals in animal laboratory.



Technical Specifications

PARAMETER

SPECIFICATION

Vet Main Unit

Ventilation mode

Open, closed, half-closed, half-open

Drive mode

pneumatic

Application

0.5-100kg animal

Vaporizer

Choose one from Isoflurane, Sevoflurane, Halothane

Oxygen Flush

25L/min~75L/min

Gas source pressure

Oxygen 0.25Mpa~0.65Mpa

Trolley

High-quality aluminum alloy profile, with storage   frame and special interface for exhaust gas emission

Flowmeter

Oxygen flow   meter for animals; scale range:0~5L/min

Anesthesia Vaporizer

Concentration scope

Isoflurane:   0.2%~5%

Sevoflurane: 0.2%~8%

Flow rate scope

0.2L/min~15L/min

Anesthetic capacity

Dry: 340ml

Wet: 300ml

Mounting type

Selectatec or Cagemout

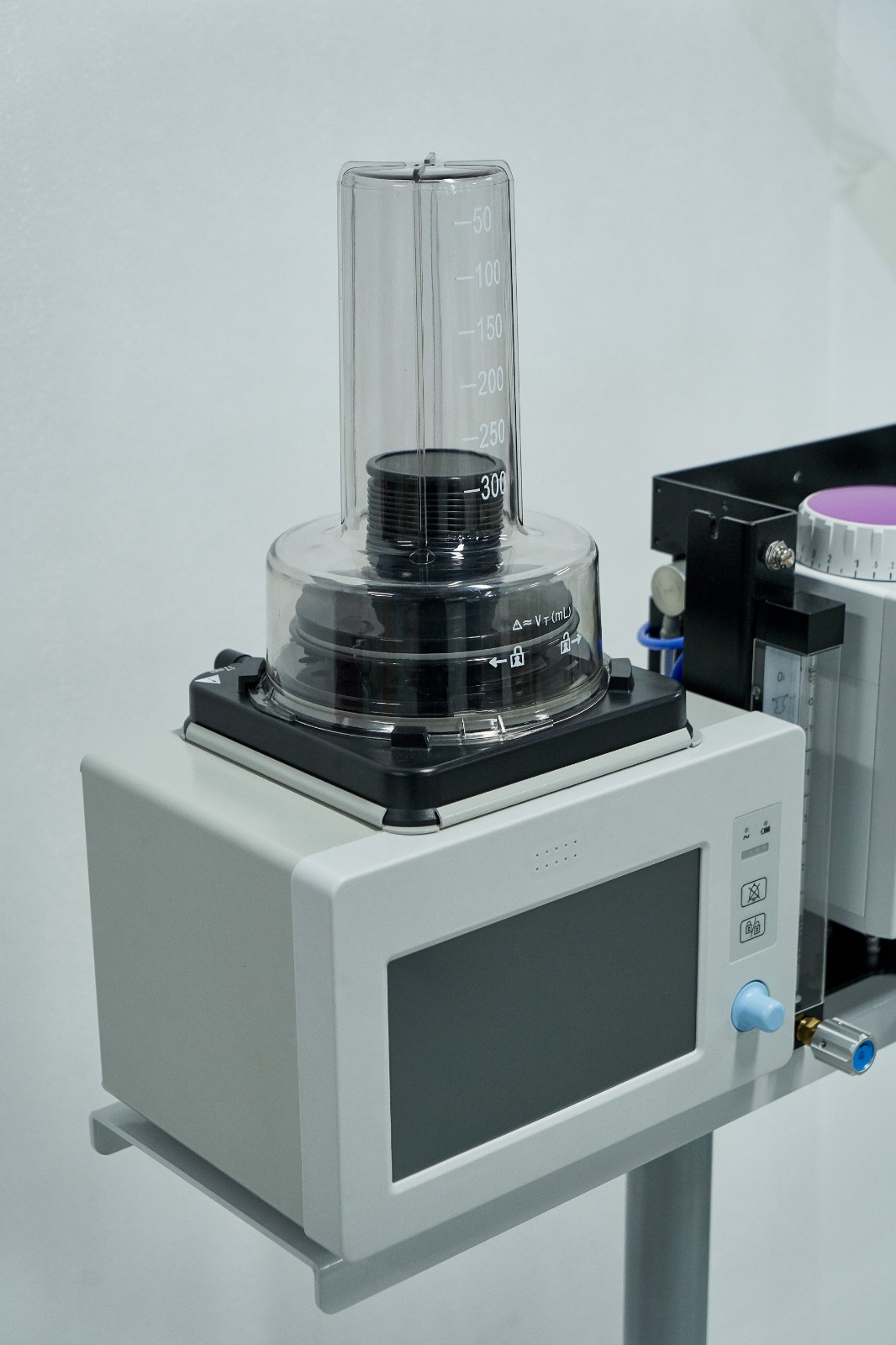

Vet Anesthesia Ventilator

Respiration mode

PCV, VCV, SPONT, DEMO

Bellow

Big animal: 50-1600ml, small animal: 0-300ml

Screen

9 inches touch screen

Waveform

Pressure, Flow, Volume

Loop

PV, PF, FV

Tidal volume

Auto control:   20-1600ml

Manual control: 5-1600ml

BPM

1-100bpm

I:E

9.9:1 to 1:9.9

Inspiratory time

0.1s-10.0s

Apnea

0-50%

PEEP

Off, 3-20cmH2O

Pressure support

5-60cmH2O

Flow trigger

0.5-20L/min

Pressure trigger

-1~20cmH2O

PSV Inspiratory terminal level

25%

Monitoring

Tidal volume, breathing rate, Spontaneous breathing   rate, I:E, Spontaneous minute ventilation volume, Minute ventilation peak   airway pressure, Average airway pressure, PEEP, Inspiratory platform   pressure, FIO2

Alarm parameters

Tidal volume, Minute ventilation volume, Frequency,   Airway pressure, Continuous airway pressure, Negative pressure alarm, Apnea   alarm, Air supply pressure failure alarm, Power supply alarm, Low battery   alarm, Battery exhaustion alarm, Oxygen battery failure alarm, FIO2   (optional), FICO2(optional)

Power supply

220V±10%, 50HZ±1%

CO2 Absorber

Sodium Lime Tank Capacity

500ml~700ml

Absorber

The animal-specific integrated circuit can be   sterilized at high temperature and high pressure at 134. The dedicated interface can be connected to an   open circuit, suitable for low-flow small animals.

Valve piece

Visible ceramic valve piece, easy to observe animal   breathing.

Pop off valve

Directs the waste anesthetic gas from the machine   to a scavenging system. In the completely open position, the pop-off valve   will release pressure at 2 cm H2O, while maintain a constant passive volume   in the breathing bags.

Other advantage

Strong air tightness, reduce airway resistance;   Design of quick replacement of sodium lime Canister



Configurations

Standard: Main unit, anesthesia ventilator, one anesthesia vaporizer, one set veterinary breathing circuit, breathing circuit, gas source hose, exhaust gas absorption system, corrugated connect pipeline, simulated lung.

Optional: Trolley, non-breathing circuit, tracheal intubation, anesthesia laryngoscope, soda lime, active carbon.
