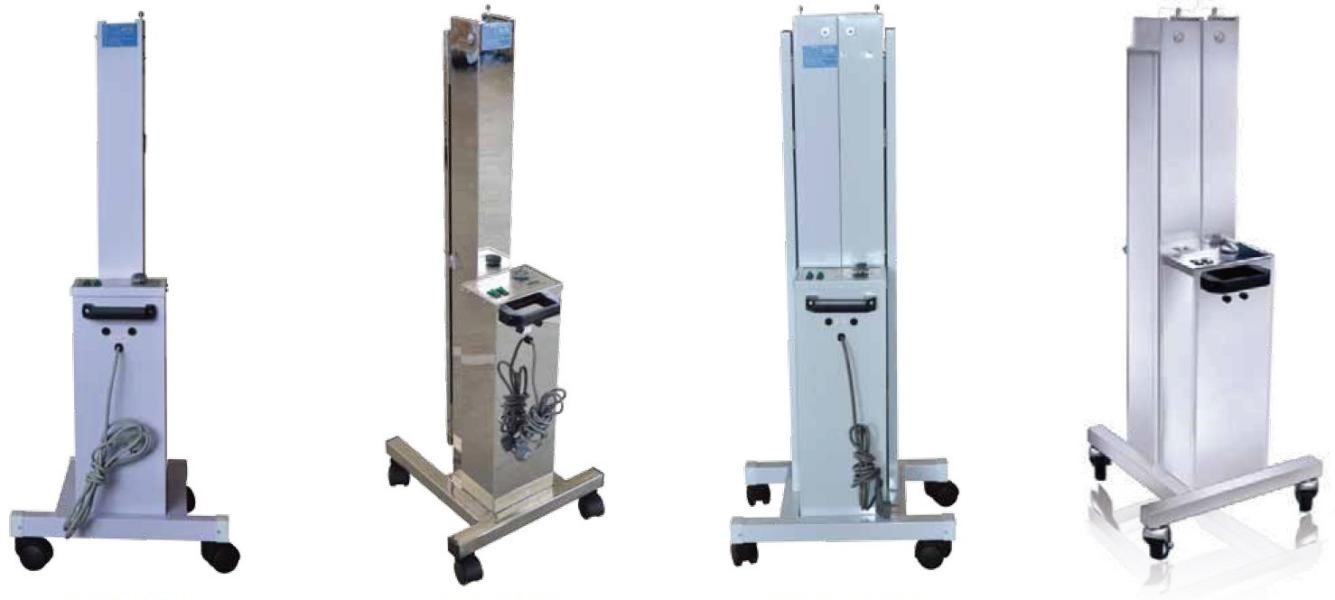

ZXC-II Ultraviolet Ray Sterilization Trolley

Purpose

Especially applied to air sterilization to all sorts of sanitary medical units or departments, scientific research units, pharmaceutical and food-process industry etc.

Features

Either single-lamp or double-lamp structure is adopted. Arm angle can be adjusted. In order to protect pipes from dust and damage, please leave protection door shut while it doesn't work.

Timer can be set 60 minutes for sterilization. Once it is finished, buzzer rings, circuit breaks down and pipe extinguished.

Do circuit test to make sure there is no leakage prior to application



Configure

ZXC-II(PY) Steel power coated (2-lamp)

ZXC-II(XY) Stainless steel (2-lamp)

ZXC-II(SG) Steel power coated (4-lamp)

ZXC-II(SGB) Stainless steel (4-lamp)



Main Technical Specifications



PARAMETER

SPECIFICATION

Wavelength

253.7mm

Power Source

AC220V (50HZ)

Lamp arm adjust angle

0-135° (II type)

Timing range

0~60 mins (II/SG/SGB Type)

Illumination

90μw/cm²

Light

PY/XY Type Quartz light tube 30W x2s

SG/SGB Type Quartz light tube 30W x4s
