N-5L, N-5L+ Cassette Sterilizer

Product Instruction

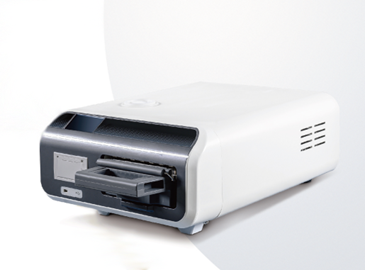

Digital Cassette Sterilizer is a fully automatic rapid sterilization equipment that uses pressure steam as a medium. Suitable for sterilization of medical devices that can withstand steam pressure, such as dental handpieces, ophthalmic precision instruments, dental rigid endoscope and surgical instrument, etc.

Features

Rapid:

The entire process takes only 9-12 minutes. Applicable to continuous surgery to improve clinical work efficiency.

Safety:

Reduce the heating time of sterilization equipment and extend the service life of the equipment.

Convenient:

The sterilization box can be used as a vehicle, and one machine can be equipped with multiple boxes, which is easy to operate.

Intelligent:

digital intelligent control, sterilization curve, pressure, temperature, time, status can be real-time displayed; alarm record, sterilization record can be digitally saved.

A variety of parameter output methods:

U disk storage, built-in microcomputer control system storage, standard equipped with built-in printer.

Technical Specifications

Sterilization program

Class

Unwrapped instrument

N

Loading method

Shelf loading, double layers

Hollow unwrapped instrument 1

S

Hollow unwrapped instrument 2

S

Hollow wrapped instrument 1

S

Hollow wrapped instrument 2

S

Rubber 1

S

Rubber 2

S

Design pressure

0.28Mpa

Temperature display accuracy

0.1°c

Design temperature

142°c

Cavity material

SUS304 stainless steel

Sterilization temperature

121°C-134°C

Maximum working pressure

0.23Mpa

Temperature uniformity

Range: 1.0~50.0ml, (0.1ml step)

Interface

≤+0.5°C

Optional

USB real-time sterilization data storage


Optional multiple sterilization racks

Order No.

Volume

Water tank Volume

Chamber size (mm)

Dimensions

(mm)

NW

Voltage

Frequency

Power

VN-5D

5L

5L

380x180x80

595x476x208



45KG

220V

50HZ

1.3Kw

VN-5DL

5.2L

5L

490x180x80

595x476x208

45KG

220V

50HZ

1.3Kw
