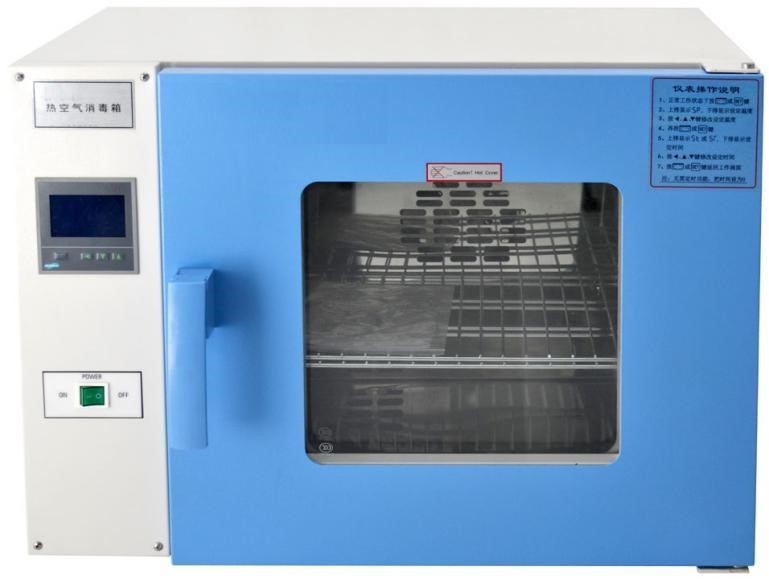

Application range
This equipment is used for drying, baking and disinfection in industrial and mining enterprises, chemical laboratory, R&D institution, etc.
Structure Characteristics:
Outer Shell Material: Cold-rolled steel sheet surface spray
Inner Material: SUS304 Stainless steel
Microprocessor PID temperature control, accurate and reliable
Timing range: 0-9999min
Parameters auto saving system and automatic start after power interruption
Inner round cornered design, convenient to clean
Shelves adjusted easily and flexiblely
Inlet and outlet at back side
Outer observation window and no glass inner door
Stainless steel tube heater
Optional device:
RS485 communication serial port
Micro pinhole printer
RS485 to USB Transfer interface
Model Specifications
Model | GRF-9023A | GRF-9053A | GRF-9073A | GRF-9123A | GRF-9203A |
Temperature Range | Room Temperature +10 º C -250 º C | ||||
Temperature Fluctuation | ±1℃ | ||||
Temperature Uniformity | ≤Max working temperature ±2.5% | ||||
Inner Cyclic Mode | Forced convection | ||||
Alarm Type | Over temperature alarm, Timing alarm and Temperature probe damage alarm | ||||
Temperature Controller | LCD display and P.I.D. temperature controller | ||||
Work Room Dimension WxDxH (cm) | 30*30*28 | 42*37*35 | 45*45*45 | 55*36*55 | 60*55*64.5 |
Capacity(L) | 25 | 54 | 91 | 108 | 212 |
Outline Dimension WxDxH (cm) | 58*50*45 | 71*56*53 | 74*64*63 | 83*61*72 | 88*74*82 |
Shelves | 2 | 2 | 2 | 2 | 2 |
Rated Power (W) | 650 | 1000 | 1500 | 1600 | 2450 |
Power | 1Φ 220V 50Hz |
