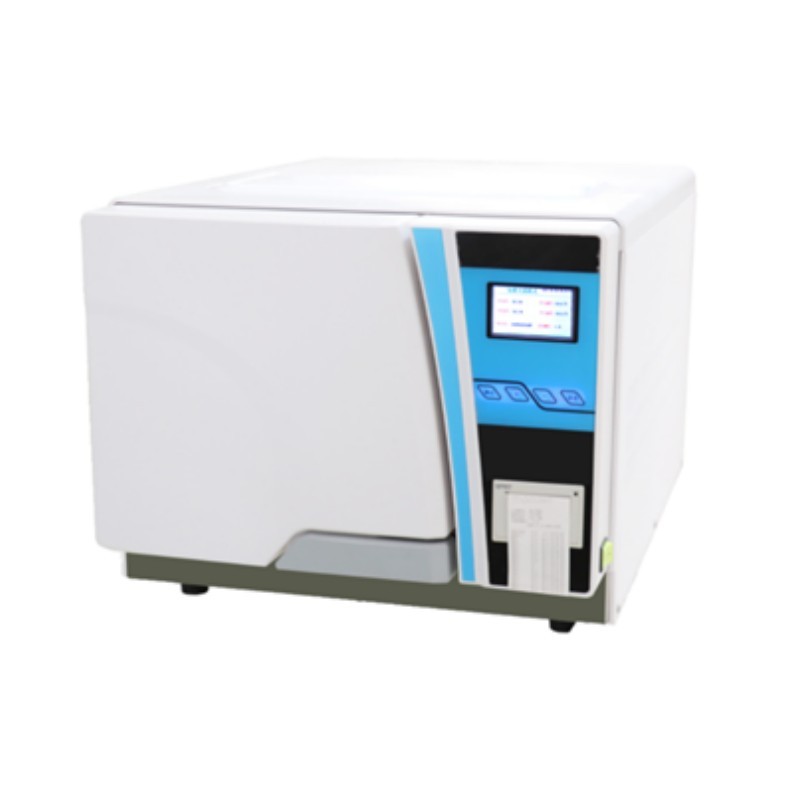

EO-H40 Ethylene Oxide Gas Sterilizer

Technical Specifications

PARAMETER

SPECIFICATION

Product   name

Ethylene   Oxide Sterilizer

Product   model

EO-H40

Product   form

Desktop

Heating   method

Electric   heating

Power

1.3KVA

Power

AC220V,   50Hz

Dimensions

(Length ×   Width × Height): 670 × 450× 400mm

Liner size

(Length × Width × Height): 240 x 470mm

Effective   Volume

23L

Weight

56kg

Temperature   display

3.5 inch   LCD display

Material of   Sterilization Room

304   anti-corrosion stainless steel

Outer box material

ABS plastic

Temperature   during sterilization

50±3

Working   pressure

-60kpa

Highest   anti-stress value

-140kpa

Humidity   during sterilization

45%-80%

Selected   gas

Pure   ethylene oxide gas

Sterilization   time

0-99 hours   adjustable

Air   Replacement

Automatic   ventilation, 5 cycles of ventilation, every 15 minutes

Full-automatic   control system

One-click   start to finish, the whole process is completed

automatically

Sterilization   record



The system   can store 500 pots of sterilization records

Display   status



Display   operating status, temperature, humidity, pressure, sterilization time,   residual gas treatment time, times, steam generator temperature.

Humidity   Sensor

The   built-in humidity sensor automatically detects the humidity in the cavity.

Pressure   Sensor

The   built-in pressure sensor automatically detects the pressure in the cavity

Temperature   Sensor

The   built-in temperature sensor automatically detects the temperature in the   cavity, the accurate range is 50±3.

Vacuum   system

Use   oil-free vacuum pump.

Seal door

304 stainless   steel aluminum material, thickness ≥ 2mm, pressure resistance 200Kpa.

Humidification   System

Using pulse   steam humidification

Residual   gas treatment device

The   filtration rate of the filter to the particle diameter ≥0.3μm is

not less   than 99.5%

Vacuum rate

Under   no-load conditions, the time for the sterilizer to be vacuumed from normal   pressure to -60 kPa ≤ 30 min

Automatic   dosing

Puncture technology   built into the sterilization chamber.

Heating   system

The   explosion-proof electric heating device is used in the sterilization chamber

Multiple   protection functions

With   over-voltage and over-temperature protection functions, it is

more safe   and reliable

Alarm   system

Have high   temperature alarm system, ultra low pressure alarm system
