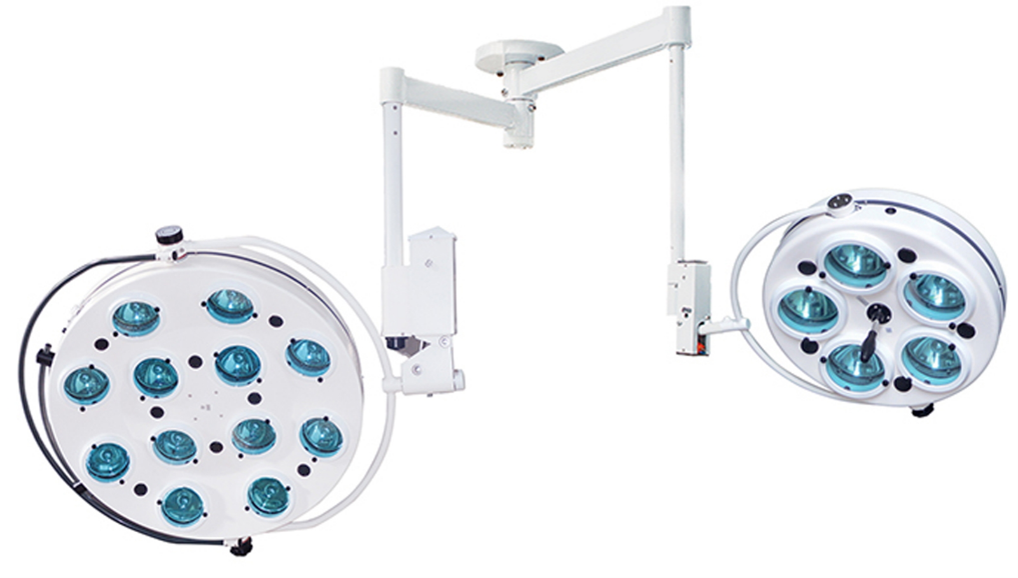

OL-1205L Halogen Operating Lamp (Aperture)

Introduction

OL1205L, OL12L, OL09L use of multiple different sources, by focusing knob, so the beam is irradiated from different locations surgery, reduce the shadow medical staff head, hands and other parts caused. The illumination can be adjusted according to actual needs.



Features

- The no welding titanium alloy main arm is adopted, so that the appearance is aesthetic and the rotation is more flexible and convenient.

- The removable handle sheath can be disinfected at the high temperature of 135.

- The depolished panel made of imported material makes the light rays softer.

- The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.

- The special radiation filter reducing the heat to the minimum level.

- The multi-flake retroreflector made of imported aluminum sheet has the features of no

coating film and never fading.

- Imported lamp receptacle, Tungsten halogen bulbs of international brand are adopted with the average service more than 1500 hours.

- Light adjustment circuit adopts CPU control, enabling increase or decrease of illumination and boasting brightness memory.

- One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2 second when the main bulb malfunctions, and it has indicators for the damage of main or standby bulb.





Technical Specifications

PARAMETER

SPECIFICATION

Major Bulb Illumination

160,000LX

Color Temperature

4000K±500K

Color Rendering Index

100Ra85

Depth of Light Beam

500mm

The Value of the Total Irradiance (service range   for temperature rise10)

6mW/m²lx

Total Irradiance (temperature rise on the head of   patient under surgical operation2)

600W/m²

Mains Voltage

AC220V±10%, 50Hz

Bulb Voltage

AC24V Bulb Power

Bulb Power

425W

Input Power

500VA

Height for Installation

280-320cm

Note: If you want use halogen bulbs, please mention   before your order.
