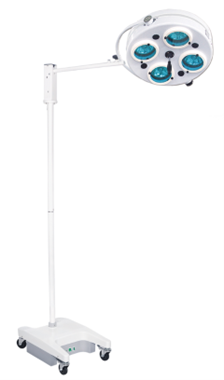

OL-04L.I Halogen Operating Lamp (AC/DC)

Introduction

OL04L For general outpatient surgical lighting, with brake can be easy moved. OL04L.I with battery is more suitable for cutting off power.

Technical Specifications

PARAMETER	SPECIFICATION
Major Bulb Illumination	≥40,000LX (at 1m distance)
Color Temperature	4000K±500K
Color Rendering Index	100≥Ra≥85
Depth of Light Beam	≥500mm
The Value of the Total Irradiance (service range for temperature rise≤10℃)	≤6mW/m²lx
Total Irradiance (temperature rise on the head of patient under surgical operation≤2℃)	≤600W/m²
Mains Voltage	AC220V±10%, 50Hz
Bulb Voltage	AC24V Bulb Power
Bulb Power	100W
Input Power	120VA
