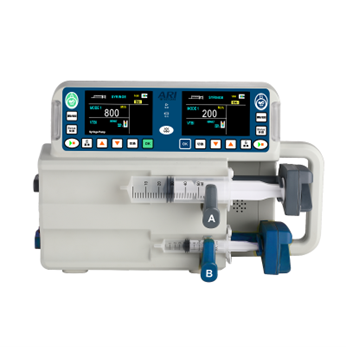

SP-50D Syringe Pump (Dual Channel)

Applicable Syringes

5ml,10ml,20ml,30ml,50ml,60ml of any standard

Accuracy

+/- 2% with correct calibration

Rate Mode

50ml(60ml): 0.1ml/h-2000.0ml/h (0.1ml/h or 1ml/h   step)

30ml: 0.1ml/h-1200.0ml/h (0.1ml/h or 1ml/h step)

20ml: 0.1ml/h-800.0ml/h (0.1ml/h or 1ml/h step)

10ml: 0.1ml/h-400.0ml/h (0.1ml/h or 1ml/h step)

5ml: 0.1~200ml/h (0.1ml/h or 1ml/h step)

(Programmable 0.01ml/h~9999.9ml/h)

Time Mode

SOL. VOL: 0.1-9999.9ml (0.1ml step)

TIME: 00:01-99:59min (1min step)

Dose Mode

Volume: 0.1-999.9ml (0.1ml step)

DRUG MASS: 0.1-999.9mg (0.1mg step)

DOSE: 0.001-9999ug/kg/min (0.001ug/kg/min step)

WEIGHT: 0.1-300kg (0.1kg the least step)

Dose unit: ng/kg/min, ug/kg/min, mg/kg/min,   g/kg/min, ug/kg/h,

mg/kg/h, g/kg/h, ug/min, mg/min, g/min, ug/h, mg/h,   g/h, U/min, U/h,

IU/h, U/kg/h, ml/h

Total Volume Range

0.1-9999.9ml (0.1 ml step)

Drug library Mode

10 categories of drugs, 17kinds of dose units.

Makes drug dispensing more convenient and safer.

Sequential Mode

Available

Purge Rate

50ml(60ml): 1500.0ml/h,

30ml: 1200.0ml/h,

20ml: 800.0ml/h

10ml: 400.0ml/h, 5ml: 200ml/h

Programmable and adjustable

KVO Rate

0.1~5.0 ml/h, Programmable and adjustable

DPS Dynamic Pressure

Three levels setting LOW (60(±15)kPa), MEDIUM   (90(±15)kPa) or HIGH (120(±15) kPa)

Alarms

Syringe Holder Loose, Syringe Plunger   Disengagement, Syringe

Flange Insertion Error, Syringe Not Calibrated,   Occlusion, Syringe

Empty, Rate Abnormal, Battery Empty, No Battery,   Infusion

Complete, Syringe Near Empty, No Action, Battery   Low

Three levels of alarm volume LOW, MEDIUM or HIGH

Bolus Rate

5ml: 0.1~200ml/h,10ml:0.1-400ml/h,20ml:0.1-800ml/h,

30ml: 0.1-1200ml/h,50ml(60ml):0.1-2000ml/h

Programmable and adjustable, Automatic/Manual bolus   available

Bolus Volume

Range: 1.0~50.0ml, (0.1ml step)

Interface

RS-232

Brightness

1~10 levels can be selected

History Records

2000 events stored can be checked and downloaded

Power Source

AC power supply: AC 100 to 240V(+/-10%), 50/60Hz;

DC Power supply: 12~15V, power>15W;

Built-in Lithium Battery: Rechargeable, 7.2V,   2600mAh.

8 hours of continuous operation

Accessories

AC power line, Operational manual

Protection Class

Class I, Type CF, IP44

Dimension/N.W

350*150*220mm, 4kg

Packing size/G.W

400mm*200mm*2500mm, 4.5KG
