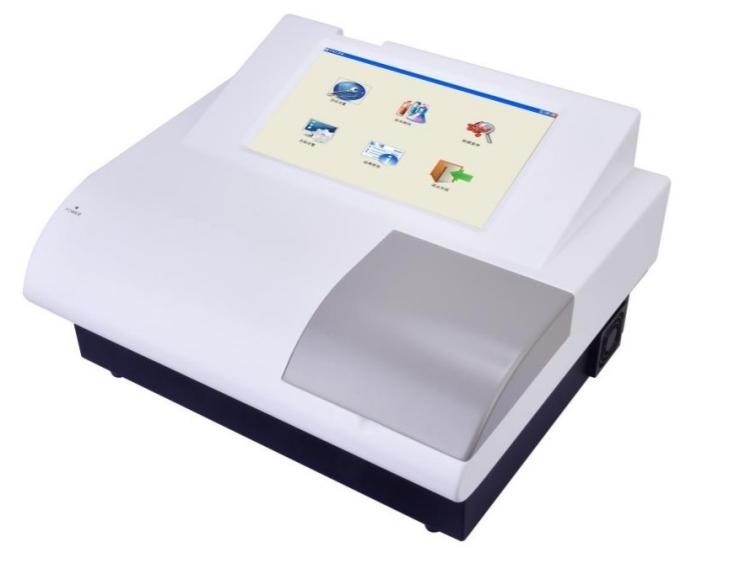

HE-201 Elisa Reader (Veterinary)

Features

Ø  Windows operation interface, figure button, mouse operation, touch screen.

Ø  96-well plate, multiple tests in the single plate.

Ø  Arrangement of Test item in micro-plate can be store and re-use

Ø  Parameter can be modified and stored

Ø  Plate shaking, speed and time adjustable

Ø  Open system, test item and parameters can be added or modified.

Ø  Large storage for 1000 test item and 1,000,000 results

Ø  10.4 inch color touch LCD

Ø  Printing comprehensive report, include hospital and patient information and test results

Ø  Built-in portable computer, easy to use.



Technical Specifications

PARAMETERS

SPECIFICATIONS

Microplate types

96-well plate(U,V,or plat-bottom)

Wavelength

405nm,450nm,492nm,630nm,4 free positions for   additional filters

wavelength accuracy < 2nm

Reading range

0.000-4.000 Abs

Measurement range

0.000-3.000Abs

Light source

LED, >100,000 hours

Measuring system

8-channel optical system

Test mode

End-point, kinetic, Multi-wave analysis

Resolution

<1% or ±0.001Abs

Stability

<±0.005Abs/10min

Well Coincidence

≤0.015A

Linearity

r > 0.999

Repeatability

< 0.3%

Reading speed

5s single wavelength , 10s double wavelength

QC

West guard Multi-rule, automated QC alert

Self-Checking function

Self-checking and calibration function

CPU

High-speed CPU

Printer

External jet printer, multi-form patient report

Interface

RS232 interface, USB

Power supply

220VAC 15% or 110VAC 15%50-60Hz 100W

Work environment

Temp 5°C-40°CHumi ≤85%

Machine Dimension

44CM*37CM*24CM

Weight

13 KG
