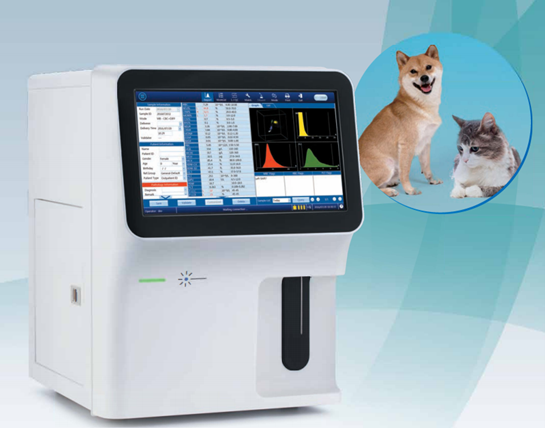

HH-610 Vet Hematology Analyzer (5-Part)

Principles

Tri-angle Laser scatter, Flow Cytometry method, 3D Scattergram   analysis, Impedance method For RBC and PLT counting, Cyanide free reagent for   HGB test

Parameters

25 Reportable parameters:

WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD,

RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%,

LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#,

EOS#, BAS#

1 3D Scattergram

3 Histograms(WBC/BASO, RBC, PLT)

Sample Profile

Dog, Cat, Horse, more species coming soon

Test Mode

CBC mode, CBC+DIFF mode

• Venous whole blood, Prediluted

Sample Volume

CBC+DIFF mode : ≤20ul

CBC mode : ≤10ul

Reagents

Diluent(Vet), LH Lyse(Vet), LD Lyse(Vet), Probe   Clean ser

Throughput

60 tests/hour

Data Memory

Up to 100,000 results(including histogram,   scarttergram, animal information)

Display

14 inch touch screen, resolution 1366*768

Interface

1 LAN port, 4 USB ports

Communication

Support LIS connection, HL7 protocol, Internal RFID   reader

Printout

Support various external USB printers, printout   formats user definable

Size/Weight

L * W * H = 480*375*517(mm)

Weight: 36kg

Power Requirement

a.c.100-240V,50/60Hz

Working Environment

Temperature:10-30° (

Humidity: 20% - 85%

Air pressure: 70-106kPa

Working latitude: ≤3500m
