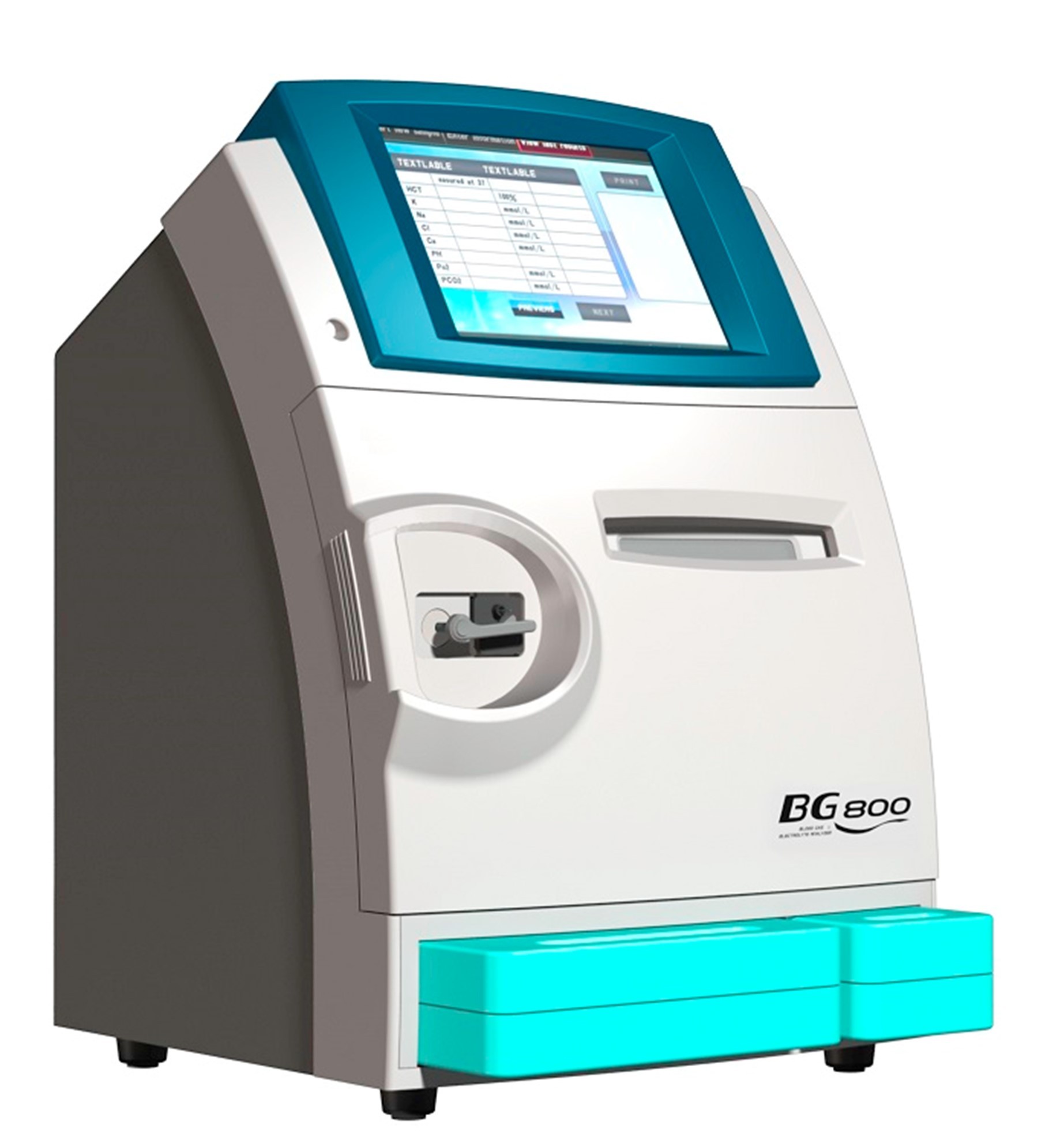

BG800 Veterinary Blood Gas Analyzer

Sample Type

Whole blood, Serum, Plasma, Dialysate, CSF

Model Name

BG-800:    pH  pCO2   pO2  K+  Na+  CI+  Ca++  Hct

BG-800A:   pH  pCO2  pO2  Hct

BG-800E:   pH  pCO2   pO2   K+   Na+  CI+  Ca++  Hct  Lac  Glu

Measured Parameters

Features

l  Analysis Time:        <90s

l  Sample Volume:     95µL Whole blood (120µL if with Glu and Lac),50µL Capillary blood

l  Calibration:            Automatic, programmable

1-point and 2-point calibration

l  Data Storage:          >10000

l  Display:                    10.4” TFT Touch Screen

l  Battery:                   Nickel-metal hydride battery,3.0Ah

l  Printer:                     Build-in Thermal printer,70mm

l  Barcode Reader:   Up to 14 kinds barcode type

Input Parameter

Patient Temperature

Hemoglobin

FiO2

B.   P.

Interface

Serial Line RS-232

TCP/IP Interface

USB Port

Integrated Bar-code Reader

Dimension

Instrument:       400(W)mm*574(H)mm*344(D)mm

CAL PAK:       258(W)mm*180(H)mm*70(D)mm

AUTOQC:        103(W)mm*180(H)mm*70(D)mm

Weight:    18KGS

Working temperature:15°C~30°C

Storage environment:5°C~45°C

Power supply:100-240V~50/60Hz

Derived (Calculated) Parameters

pH(TC)           pH temperature corrected

pCO2(TC)        pCO2 temperature corrected

pO2(TC)       pO2 temperature corrected

TCO2              Total carbon dioxide

HCO3                   Actual plasma bicarbonate

BEb                       Base Excess in blood

BEecf             Base Excess in extra cellular fluids

SBC                    Standard bicarbonate

sO2%                Calculated oxygen saturation percentage

Ca++(7.4)       lonized calcium”normalized” to pH7.4

TCa                    Total calcium content

AG                     Anion gap

RI                       Respiratory index

AaDO2             Alveolar artillery oxygen gradient

O2SAT                     Oxygen Saturation

tHb(c)               Hemoglobin (Calculated)
