Features

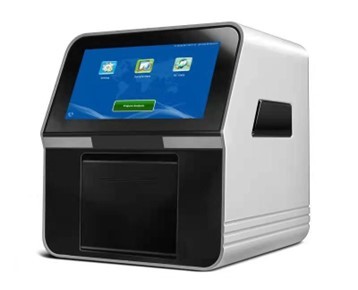

HC-1200VP realizes the miniaturization and automation of the analyzer by microfluidic technology. It has a built-in intelligent quality control system, test results are accurate and reliable, the analyzer is easy to operate and take up little space. It is an ideal diagnostic tool to help veterinarians asscess the health of animals and it has become the professional choice of thousands of veterinary hospitals and clinics.
Advantages
1.Small and portable:small size
weight only 4 KG,small footprint and can be carried anywhere.
2.Easy to use
Only need to add samples, it’s easy to operate. No need to add diluent manually.
3.Small sample volume
The sample volume is only 100µl, Easy to do test for small animals and exotic animals.
4. One analyzer for multiple uses
Covers biochemistry ,electrolyte,coagulation,feline and canine,inflammation detection (c-CRP,f-SAA).
5. Consumable advantages
Freeze-dried reagents with 15-month shelf-life, Original disc microfluidic technology to avoid cross-contamination.Autonomous ultrasonic welding , the quality is more guaranteed.
6. Lifetime maintenance
Imported key ports, no internal pumps, valves and other vulnerable parts. 25-month warranty,lifelong free maintenance.
Technical Specifications
PARAMETERS | SPECIFICATIONS |
Sample Volume | 90-120µl |
Sample Type | Anti-coagulated whole blood, serum, plasma |
Bar Code | Two-dimensional bar code |
Storage | MAX 500.000 results |
Temperature | 37±0.3°C |
Resolution | 0.001Abs |
Testing Method | End point, kinetic, fixed time and turbidimetry |
Operational Environment | Temperature:10-30°C,Humidity:≤85% |
Light Source | 12V/20W, halogen tungsten lamp’s life span is over 2500 hours |
Power | AC 100-240V,50/60Hz |
Weight | 4Kg |
Testing Principle | Absorption spectroscopy, transmission turbidimetry |
Printer | Built-in thermal printer |
QC&Calibrate | Real time full-auto finish |
Order Code | A00121VETENO |
Absorbance | 0-3.0Abs |
Display | Android 7.0 inch 800*480,multi-point capacitive touch screen |
Connectors | 2 USB ports |
Language | English, Italian, Portuguese, Russian, Spanish, Deutsch, French |
Rated Power | 100VA |
Easy 3-steps Operation
Dilution, centrifugation, quality control and test result printing occur automatically as steps
During the sample analysis process.
01 Insert Sample (100µl blood)
Whole blood sample do not require pre-treatment
A full test is available with only 100 µl of whole blood , serum or plasma.
02 Insert Rotor (12 minutes to result)
Key moving parts are original and sourced from US manufacturer.All fluids are
self-contained within the rotor,eliminating the need for internal pumps, valves and other vulnerable parts.
03 Read Result (immediately)
Analyzer quality control and calibration are automatically carried out in real time during the analysis process. Use the photoelectric colorimetric principle to eliminate random error and cross contamination.
