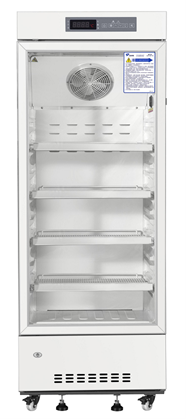

RF-V226 Medical Pharmacy Refrigerator (2~8°C)

Features

-Adjustable temperature range 2~8°C

-Microprocessor control, digital display, and temperature adjustment with an increment of 0.1°C

-Large digital display screen

-Temperature variation within ±3°C

-Permanently lubricated cooling fan for safety and longevity

-High efficiency specialty compressor with known field reliability

-Forced- air cooling with optimized air distribution system designed



Safety

-Build-in back-up battery can display temperature and operate audible and visual alarm system for up to 48 hours without AC power.

-Visual and audible alarm system:High/low temperature, thermostat failure alarm,power failure alarm, door ajar.

-Power failure protection: turn on delay of the cooling system when power failure,restart delay protection.

-Keyboard lock, password protection to avoid set parameter randomly.

-Wide available voltage range: 187V~242V.



Humanized Design

-Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.

-Standard with LED Interior light

-Safety lock to prevent unauthorized access



Technical Data

-Capacity: 226L

-Temperature range: 2~8°C

-Ambient temperature: 10~32°C

-Controller: Microprocessor

-Display: Digital display

-Compressor: 1

-Refrigerant: R600a

-Cooling type: Forced-air cooling

-Defrost type: Auto defrost

-Power supply: 220V~240V/ 50~60Hz; 115V/ 60Hz

-Rated power: 140W

-Electrical current: 1.0A

-Power consumption: 1.6kWh/24h



Accessories

-Caster: 4

-Lamp: LED

-Door:1 (Glass door-LOWE)

-Shelf: 4

-Test hole: 1/25MM

-USB Port/Datalogger:Optional



Dimension

-Interior size (W*D*H): 534*406*1707mm

-Exterior size (W*D*H):625*406*1150mm

-Package size (W*D*H):707*676*1745mm

-NW/GW: 73/76kg

-Loading quantity (20’/40’/40’H): 24/51/51
