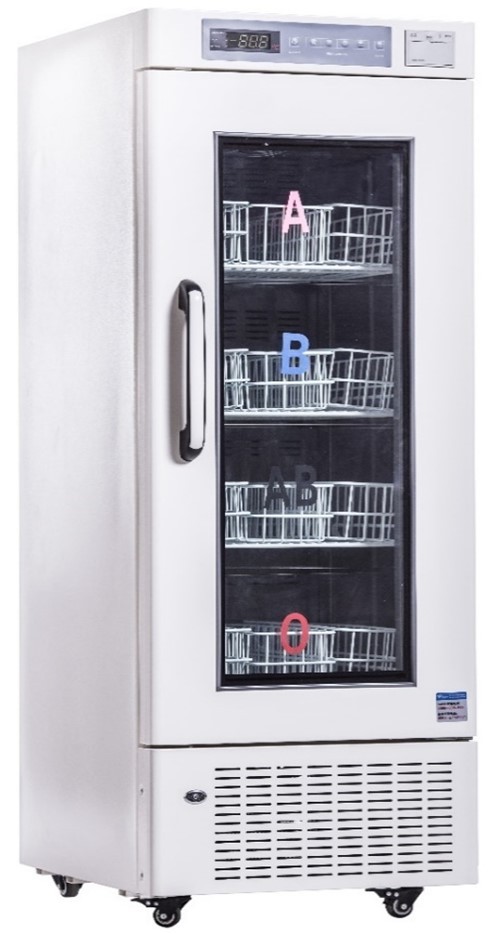

BBR -V208 Blood Bank Refrigerator (4°C)

Features

-Accurate microprocessor controller to ensure consistent cabinet temperature 4±1℃

-Specially designed forced-air cooling system to ensure frost-free cabinet and good temperature uniformity

-Three layers toughened glass door with heater to avoid condensation

-304 stainless steel inner chamber for friendly using and easy cleaning

-Wide available voltage range: 187V~242V

Safety

-Safety door lock and controller setting password to prevent unauthorized access

-Inner doors and auto on/off cooling fan to prevent cold air from leaking out when the door is opening

-Built-in backup battery to display temperature and to operate audible and visual alarm system for up to 72 hours without AC power

-Alarms: high/low temperature, power failure, sensor failure, door ajar, condenser abnormal, low battery

-Power failure protection: turn on delay of the cooling system after power failure

-Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensors failed

-Temperature printer: print current inside temperature automatically per 10 minutes

Humanized Design

-4 castors with stopper for easy moving and fixation

-4 adjustable shelves and 12 blood baskets for easy using

-Special designed service-free drainage system ensure no water in the cabinet

-Standard 25mm test hole for easy connecting to temperature monitoring systems

-Automatic on/off LED light with manual switch on control panel

Technical Data

-Capacity: 208L

-Temperature range: 4±1℃

-Ambient temperature: 10~32℃

-Controller: Microprocessor

-Display: Digital display

-Compressor: 1

-Refrigerant: R134a

-Cooling type: Forced-air cooling

-Defrost type: Frost free

-Power supply: 220V 50~60Hz; 115V 60Hz

-Rated power: 200W

-Electrical current: 0.8A

-Power consumption: 2.22kWh/24h

Accessories

-Castor: 4

-Lamp: LED

-Shelf: 4

-Test hole: 1

-Temperature printer: 1

-Chart recorder: optional

Dimension

-Interior size (W*D*H): 432*462*978mm

-Exterior size (W*D*H): 522*600*1550mm

-Package size (W*D*H): 580*680*1700mm

-NW/GW: 96/120KGS

-Loading quantity (20’/40’/40’H): 33/68/68
