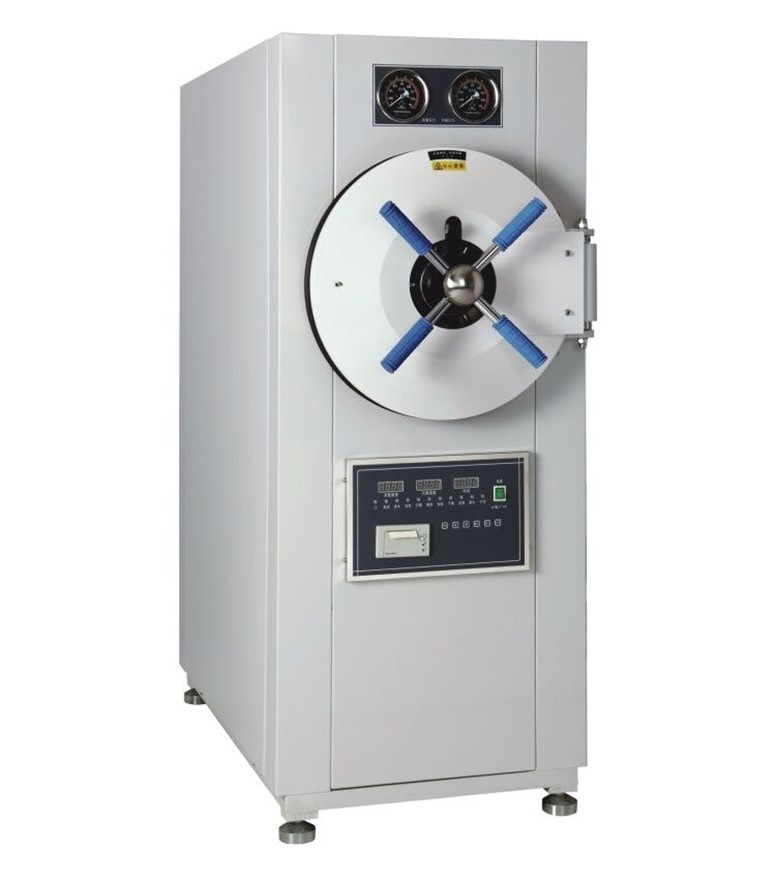

WS-YDB Horizontal Cylindrical Pressure Steam Sterilizer

Characteristics

1. Sterilizing course automatic sterilization controlled by computer, easy to operate.

2. With drying function, suitable dressing drying.

3. With over-temperature, over-pressure auto-protect device.

4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t be start on if the doesn’t closed well.

5. The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.

6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7. The surface of the sterilizer is steel coated, the chamber of the sterilizer is made of stainless steel.

8. With printer.



Technical Data

Model technical data

WS-280YDB

WS-200YDB

WS-150YDB

Sterilizing chamber volume

280L(φ600×1000mm)

200L(φ515×1000mm)

150L(φ440×1000mm)

working pressure

0.22 MPa

working temperature

134

Adjustment of temperature

40 - 134

Time of sterilization

0-99 min

Time of drying

0-99 min

Heat average

≤± 2

Power

12KW/380V 50Hz

9KW/380V 50Hz

9KW/380V 50Hz

Dimension

1520×910×1900

1400×750×1700

1400×650×1600

Package

1680×1080×2100

1560×910×1880

1560×820×1820

GW/NW

570/462 KG

436/350 KG

430/340 KG
