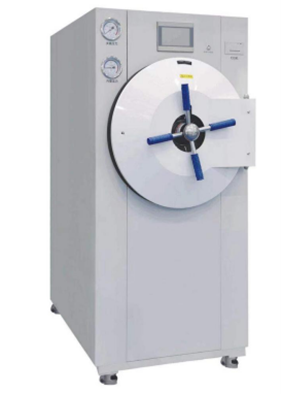

WS-YV Horizontal Cylindrical Pressure Steam Sterilizer (Microcomputer Control)

Features

1.      Sterilizing course automatic sterilization controlled by computer, easy to operate.

2.      With drying function, suitable dressing drying.

3.      With over-temperature, over-pressure auto-protect device.

4.      The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027MPa. It can’t be start on if the doesn’t closed well.

5.      The safety value will be open automatically when the inner pressure over 0.24MPa, and the steam be exhausting to the water tank.

6.      The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.

7.      The chamber of the sterilizer is made of stainless steel.

8.      Touch screen color display and with printer.

9.      With vacuum pump



Technical Specifications

PARAMETER

WS-100YV

WS-150YV

WS-200YV

WS-300YV

Sterilizing chamber volume

100L (Φ440mm x 670mm)

150L (Φ440mm x 1000mm)

200L (Φ515mm x 1000mm)

300L (Φ600mm x 1080mm)

Max.work temperature

134

134

134

134

Max.work pressure

0.22MPa

0.22MPa

0.22MPa

0.22MPa

Working temperature range

115 - 134

115 - 134

115 - 134

115 - 134

Dry time range

0-99 min

0-99 min

0-99 min

0-99 min

Time of sterilization

0-99 min

0-99 min

0-99 min

0-99 min

Heat average

≤± 2

≤± 2

≤± 2

≤± 2

Power

10KW/380V 50Hz

10KW/380V 50Hz

10KW/380V 50Hz

13KW/380V 50Hz

Dimension

1400×660×1640 mm

1400×660×1640 mm

1400×750×1740 mm

1520×850×1850 mm

Transport dimension

1560×820×1820 mm

1560×820×1820 mm

1560×910×1880 mm

1680×1080×2100 mm

G.W/N.W

430/340 KG

440/350 KG

460/370 KG

580/470 KG
