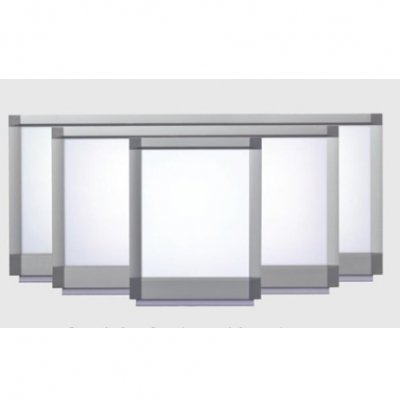

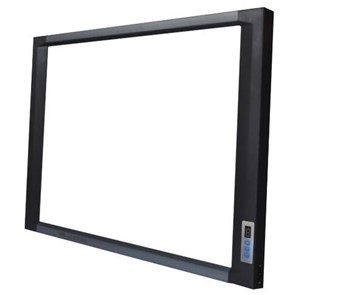

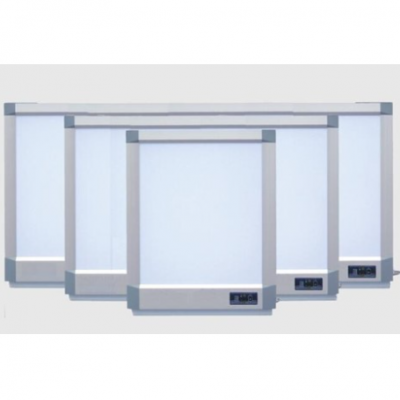

XPI/ XPII/ XPIII/ XPIV LED X-ray Film Illuminator

Features

Imported Acrylictransparent board

-Thickness: 2.5 cm

-Plug and playfunction, screen will turn on automatically when X-ray film is inserted.

When film is takenaway, screen can be delayed to shut down (7 gears, 0.5 to 10 minutes). Timingshutdown (4 gears: 1~4 hours) achieves environmental protection and ease thefatigue.

-Huge range oflight adjustment function (less than 300 and bigger than 4000 cd/m 2), whichfully meet the requirements for reading and diagnosis of different X-ray films.

-Adopts advancedLED with life service time up to 100,000 hours. No dark area during watchingX-ray film.

Specification

Item

XPI LED

XPII LED

XPIII LED

XPIIII LED

Outer size

531*498*25 mm

912*498*25 mm

1273*498*25 mm

1654*498*25 mm

Size of reading area

363*426 mm

744*426 mm

1105*426 mm

1486*426 mm

Light source

LED illumination (Up to 100,000 hours service life)

Color temperature

9500 k

Power

AC 90~240 V, 50~60 Hz

Average lightness

Fixed lightness: no less than 2000cd/m 2

Adjustable lightness: Lowest lightness is no more   than 300cd/m 2

Highest lightness is no less than 4000cd/m2

Uniformity of lightness

No less than 90%

Installation method

Wall-mounted, and mobile (Support is optional,   needed to buy separately)

Ambient condition

Ambient illuminance in X-ray film reading room   should be no more than 100 Lx
